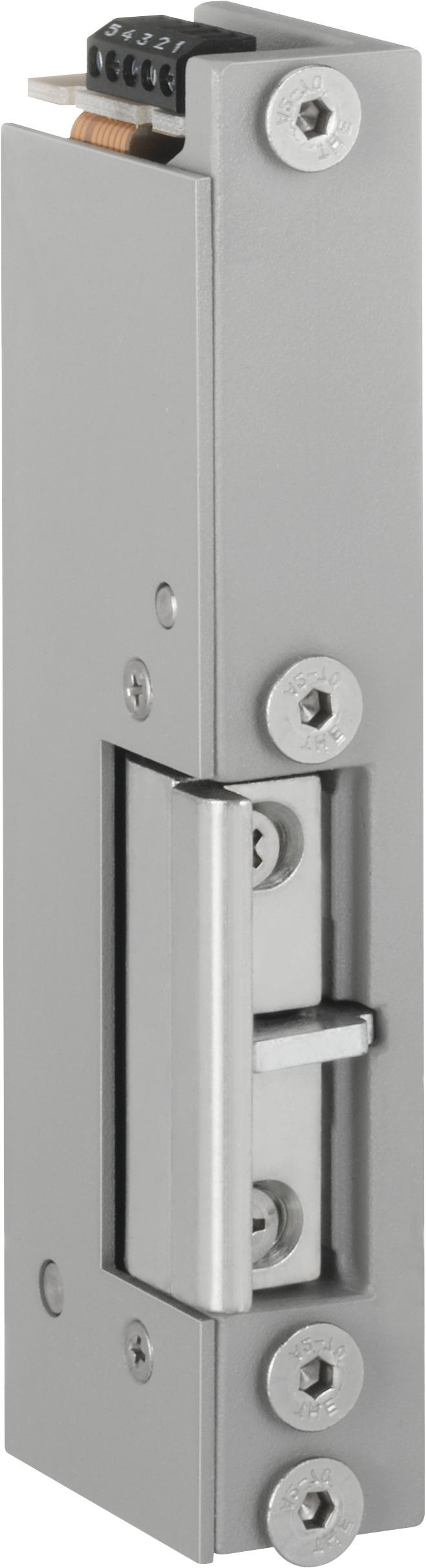

Electric strike 331URF------E95
Without strike plate, 12 V DC, DIN right
Product description
Model with monitoring contact as potential-free changeover contact, actuated by the latch bolt.
With adjustable FaFix® latch and keeper alignment.
The 331U Model Series is guaranteed to work reliably in interlock systems, on soundproofed doors and on doors where pressure on the keeper is expected due to the structural design.
Model with adjustable FaFix® latch which features keeper alignment.
Overview of Advantages
- Monitoring contact
- Recovery diode
- Reliable unlocking under preload
- Sturdy design for demanding requirements
- FaFix® latch with 2 mm adjustment range
Scope of delivery
- 1 piece electric strike
Note
- Can only be used as a supplementary locking device on fire doors
| DIN-direction | Right |
| 12 V DC | |
| Adjustable keeper (FF, FaFix®) | Yes |
| Monitoring contact (RR) | Yes |
| Diode (05) | Yes |
| Fail-unlocked | Yes |
| Rated operating voltage tolerance range | ± 1 V |
| Input operating voltage tolerance range 12 V | ±1 |
| Nominal resistance 12 V | 38 Ohm |
| Current consumption 12 V DC (stabilised) | 320 mA |
| Break-in resistance | 5000 N |
| Height | 134 mm |
| Width | 23 mm |
| Depth | 39 mm |
| Operating temperature range | -15 °C to +40 °C |
| Installation position | Vertical and horizontal |
| Max. preload 12 V DC (stabilised) | 5000 N |
| Material housing | Steel precision-casting |
| Latch material | Steel precision-casting |
