Escape door strike 332.80F-----F91
Without striking plate, 24 V DC
Product description
The 332® fail-unlocked electric strike from effeff, designed especially for locking doors along escape routes, is considered the world's smallest escape door strike due to its small dimensions.
The compact design of the effeff Escape Door Strike 332® is comparable with a standard electric strike, thus guaranteeing fast, simple installation in a wide variety of different profiles and frames.
Another advantage is safe unlocking under pre-load up to 3,000 N at 100 percent of the holding force in the event of a power cut. This means that the escape door strike also ensures safe operation on doors without escape route requirements where pressure is expected on the keeper. Due to its symmetrical design, the electric strike can be used DIN left, DIN right or even horizontally.
Test certificate (MPA – Material Testing Institute – Dortmund) 120002494.10
Overview of Advantages
- radius keeper
- Small symmetrical construction shape
- Min. 2000 N, max. 3000 N holding force in accordance with prEN 13637
- Unlocking under pre-load with 100% holding force
- Monitoring contact as microswitch and armature contact as light barrier
- DL/DR and horizontal universal installation position
- Low current consumption 100 mA (24 V), 200 mA (12 V)
- Compact fitting dimensions
- Adjustable with Fix®-grooves in the housing
- Approved for installation as secondary locking system on fire doors
- Adjustable via Fix grooves in housing
Scope of delivery
- 1 piece escape door strike
Note
- Armature contact not potential-free. Operation with effeff control terminals without coupling relay possible.
- 24 V, with fixed latch
| DIN-direction | universal |
| 24 V DC | |
| Adjustable electric strike (F, Fix®) | Yes |
| Monitoring contact (RR) | Yes |
| Armature contact (AK/RR) | Yes |
| Diode (05) | Yes |
| Fail-unlocked | Yes |
| Switching capacity - monitoring contact | 24 V/ 1 A |
| Rated operating voltage tolerance range | ± 10% |
| Nominal resistance 24 V | 260 Ohm |
| Current consumption 24 V DC | 90 mA |
| Break-in resistance | 3000 N |

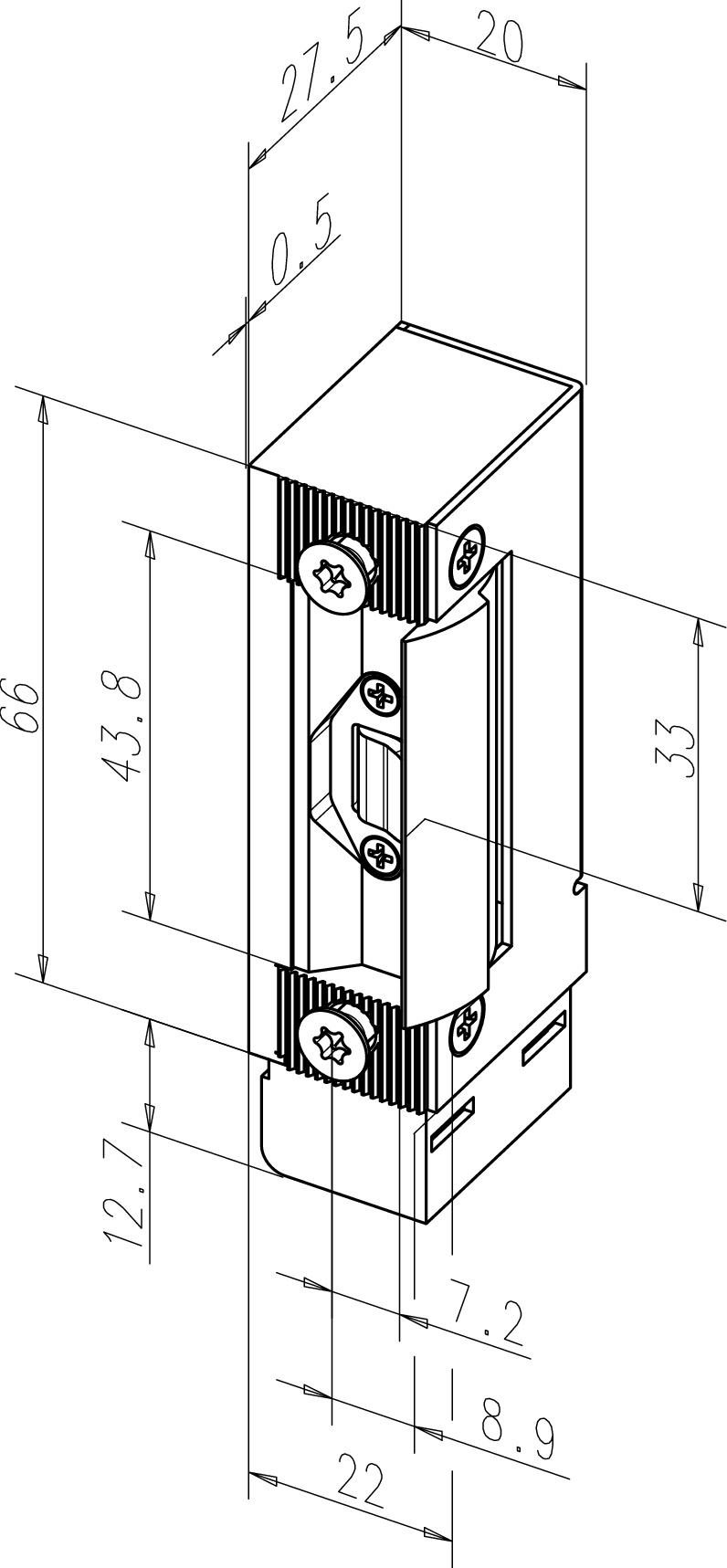

| Height | 78.7 mm |
| Width | 28 mm |
| Depth | 20 mm |
| Latch bolt engaging depth | 6 mm |
| Max. pre-load | 3000 N |
| Operating temperature range | -15 °C to +40 °C |
| Installation position | Vertical and horizontal |
| Continuous function load cycles | 200000 |
| Load cycles for in-plant test | 500000 |
| | Order number | Product |
|---|---|---|
 | 7480--------F00 | Coupling Relay Model 7480 24 V for escape door 332® |
 | 807-10-------00 | Model 807-10 Adjustable; 110 x 24 mm |
 | 807-11-------00 | Model 807-11 Adjustable; 135 x 20 mm |
 | 807-12-------00 | Model 807-12 Adjustable; 110 x 24 mm; radius forend |
 | 807-13-------00 | Mortise latch bolt lock model 807 radius Adjustable; 110 x 20 mm; radius strike plate |
 | -------A0135-04 | Surface-Mounted Housing Model A01 Ground stainless steel; DIN left |
