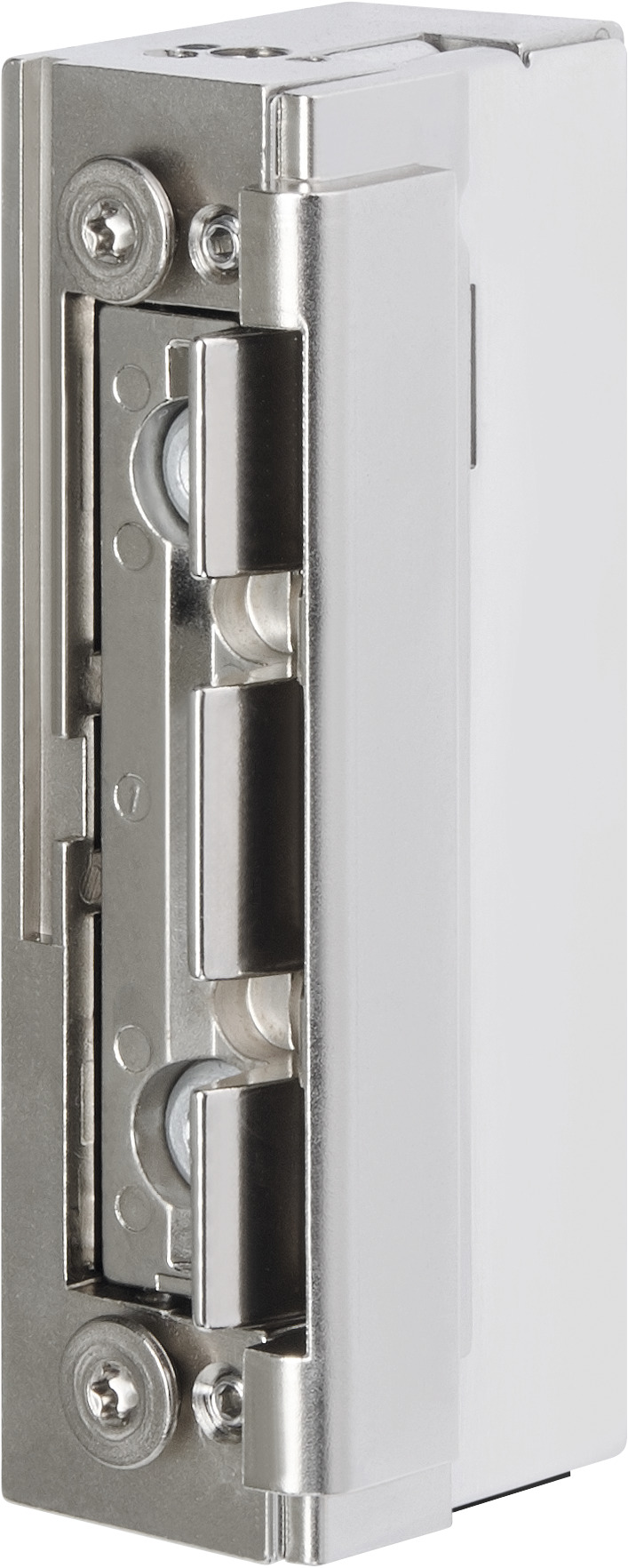

Electric strike 138F.14
Product description
Model with basic equipment. Also useable as a heavy-duty electric strike.
Overview of Advantages
- Radius keeper, FaFix®, adjustable by 3 mm
- Voltage range
- Compatible with current mortise locks
- Optimal latch ramps for gentle interaction with the latch bolt
- Usable from a x-dimension of 4 mm or more
- Symmetrical design. DIN left/right as well as horizontal applicable
Scope of delivery
- 1 piece electric strike
Note
- Can only be used as a supplementary locking device on fire doors
- Not an authorised locking system for doors along escape and rescue routes
Adjustable keeper (FF, FaFix®) | Yes |
Fail-unlocked | Yes |
Bi-directional diode | Yes |
Rated operating voltage tolerance range | ± 10% |
Break-in resistance | 9000 N |
Height | 66 mm |
Depth | 26 mm |
FaFix® adjustment range | 3 mm |
Latch bolt engaging depth | 6 mm |
Operating temperature range | -15 °C to +40 °C |
Installation position | Vertical and horizontal |
Load cycles for in-plant test | 250000 |
Material housing | Steel |
Latch material | Steel |
Order number | Description |
---|---|
138F.14-----E91 | Without striking plate, 12 V DC |
138F.14-----ES1 | Without strike plate, 12 V DC, connection terminal/plug-in |
138F.14-----F91 | Without striking plate, 24 V DC |
138F.14-----FS1 | Without strike plate, 24 V DC, connection terminal/plug-in |
