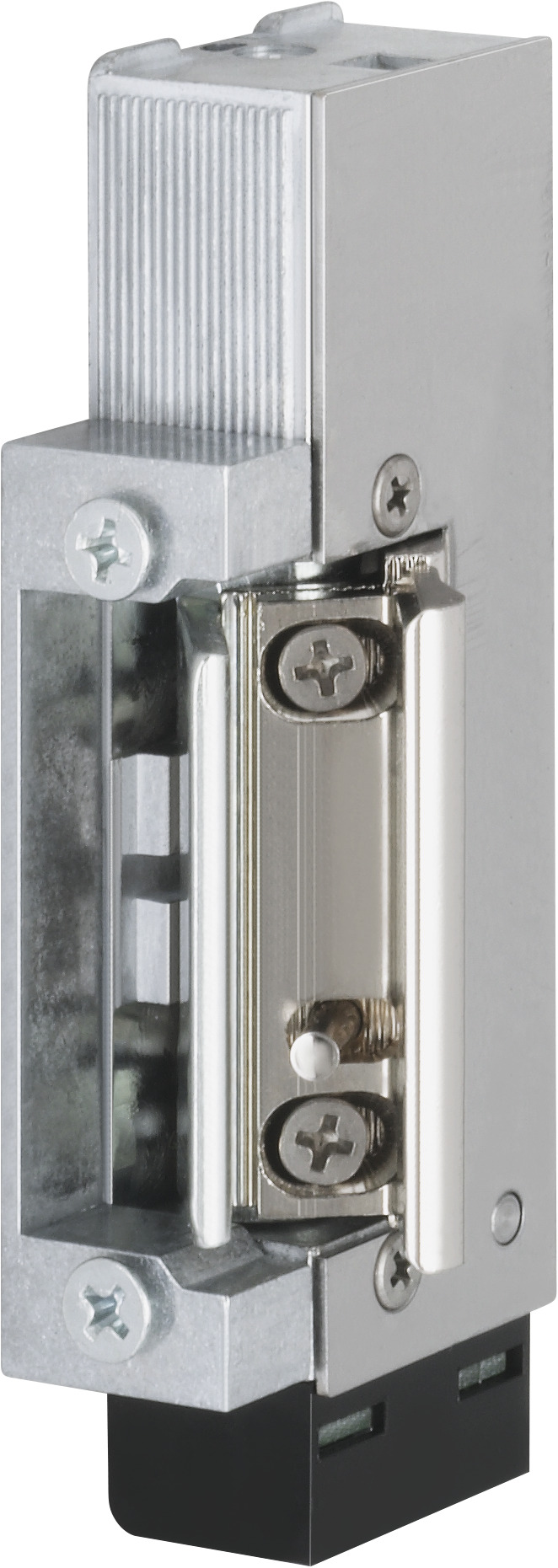

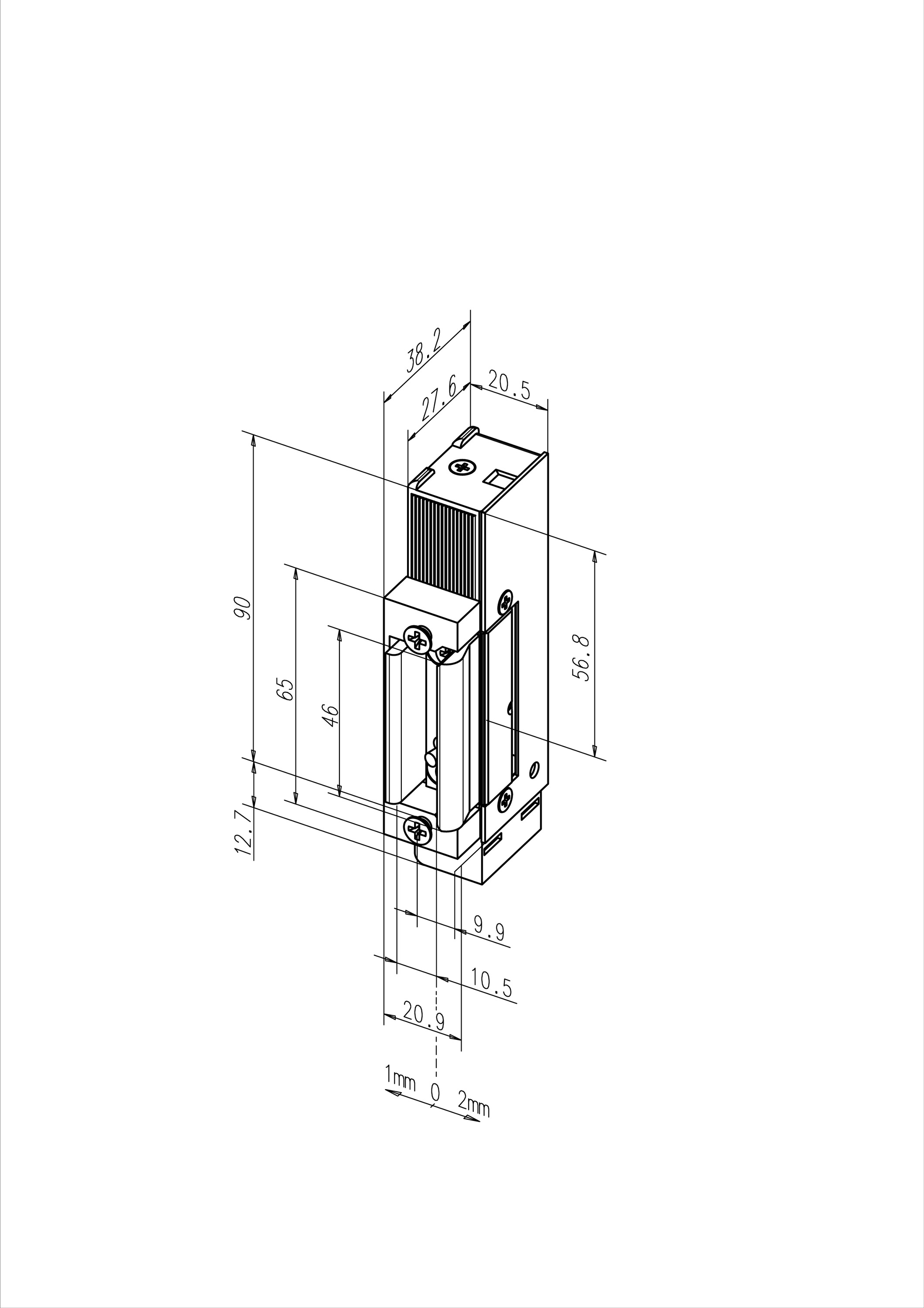

Electric strike 9014U09-----Q91
Without striking plate, 12/24 V AC/DC eE
Product description
Keeper designed especially for dead bolts: As opposed to standard electric strikes, when the door is open the electric strike latch is hinged open and therefore in the position to accept the bolt.
When the door is open, the keeper is open in contrast to standard door strikes and is thus in position for the bolt to engage
When the door is closed, the keeper is moved by the bolt into the closed position
When no electrical current is applied, in fail locked types the strike is immediately locked.
The function is also controlled by a securing pin in the case of fail-locked models. The door can only be locked if the securing pin is activated by the dead bolt. This is a reliable way of preventing the door from being locked unintentionally when it is
Overview of Advantages
- Vertical and horizontal mounting possible
- Can be used for DIN left or right due to the fitting being reversible through 180º
- Fail-locked and fail-unlocked version
- Available with monitoring contact
- With 12/24 V changeover switch including TVS diode (e.g. to combine with access control systems)
- Integrated TVS diode provides surge protection for direct and alternating currents.
Scope of delivery
- 1 piece electric strike
| DIN direction | universal |
| Electric strike voltage | 12-24 V DC |
| Adjustable keeper (FF, FaFix®) | Yes |
| Diode (05) | Yes |
| Fail-locked | Yes |
| Input operating voltage tolerance range 12 V | ± 1 V |
| Input operating voltage tolerance range 24 V | ± 2 V |
| Nominal resistance 12 V | 58 Ohm |
| Nominal resistance 24 V | 230 Ohm |
| Current consumption 12 V AC | 130 mA |
| Current consumption 24 V AC | 70 mA |
| Current consumption DC (50% Residual ripple) 12 V | 190 mA |
| Current consumption DC (50% ripple) 24 V | 100 mA |
| Current consumption 12 V DC (stabilised) | 210 mA |
| Current consumption 24 V DC (stabilised) | 105 mA |
| Dead bolt thickness | 9-12 mm |
| Break-in resistance | 3700 N |
| Height | 40 mm |
| Width | 20.5 mm |
| Depth | 38 mm |
| Dead bolt penetration | 10 mm |
| Operating temperature range | -15 °C to +40 °C |
| Installation position | Vertical and horizontal |
| Max. preload 12 V AC | 50 N |
| Max. preload 24 V AC | 50 N |
| Max. latch preload DC (50% ripple) 12 V | 10 N |
| Max. latch preload DC (50% ripple) 24 V | 10 N |
| Max. preload 12 V DC (stabilised) | 10 N |
| Max. preload 24 V DC (stabilised) | 10 N |
