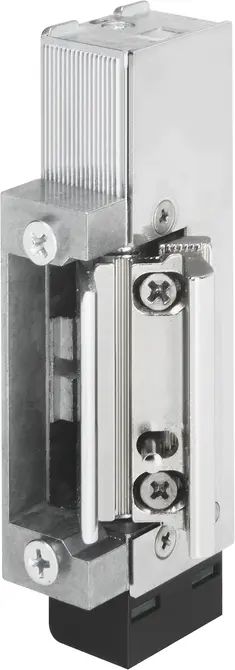

Electric strike 9014U13-----Q91
Without striking plate, 12/24 V AC/DC eE
Product description
Keeper designed especially for dead bolts: As opposed to standard electric strikes, when the door is open the electric strike latch is hinged open and therefore in the position to accept the bolt.
When the door is open, the keeper is open in contrast to standard door strikes and is thus in position for the bolt to engage
When the door is closed, the keeper is moved by the bolt into the closed position
When no electrical current is applied, in fail locked types the strike is immediately locked.
The function is also controlled by a securing pin in the case of fail-locked models. The door can only be locked if the securing pin is activated by the dead bolt. This is a reliable way of preventing the door from being locked unintentionally when it is
| DIN direction | universal |
| Electric strike voltage | 12-24 V DC |
| Adjustable keeper (FF, FaFix®) | Yes |
| Diode (05) | Yes |
| Fail-locked | Yes |
| Dead bolt thickness | 13-15 mm |
| Break-in resistance | 3700 N |
| Dead bolt penetration | 10 mm |
| Height | 116 mm |
| Width | 38.2 mm |
| Depth | 20 mm |
| Operating temperature range | -15 °C to +40 °C |
| Installation position | Vertical and horizontal |
