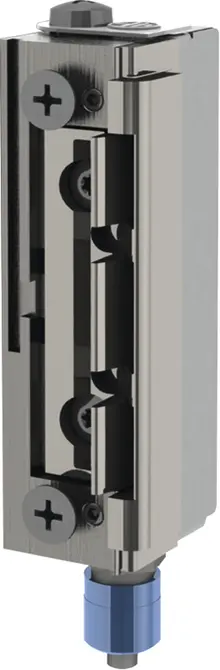

Pneumatic strike EX118P4
Product description
The strike works on compressed air.
The electric strike is locked when unpressurized
When compressed air is supplied, the electric strike is unlocked.
Use for EX zones 1, 2, 21, 22 with an ignition energy of more than 3mJ.
Labels:
Gas atmosphere: II 2G Ex h IIB T4 Gb X
Dust atmosphere: II 2D Ex h IIIC T80 °C Db X
Overview of Advantages
- For use in explosion-prone areas
- Radius keeper, FaFix®, adjustable by 3 mm
- Low mounting depth
- Compatible with special ProFix® 2 angled striking plates
Note
- The installation instructions must be observed!
| DIN direction | universal |
| Adjustable keeper (FF, FaFix®) | Yes |
| Locked without pressure | Yes |
| EC certification | No. EX9 15 03 62486 011 |
| Allowed operating pressure | 3,5 bar bis 5 bar |
| Break-in resistance | 9000 N |

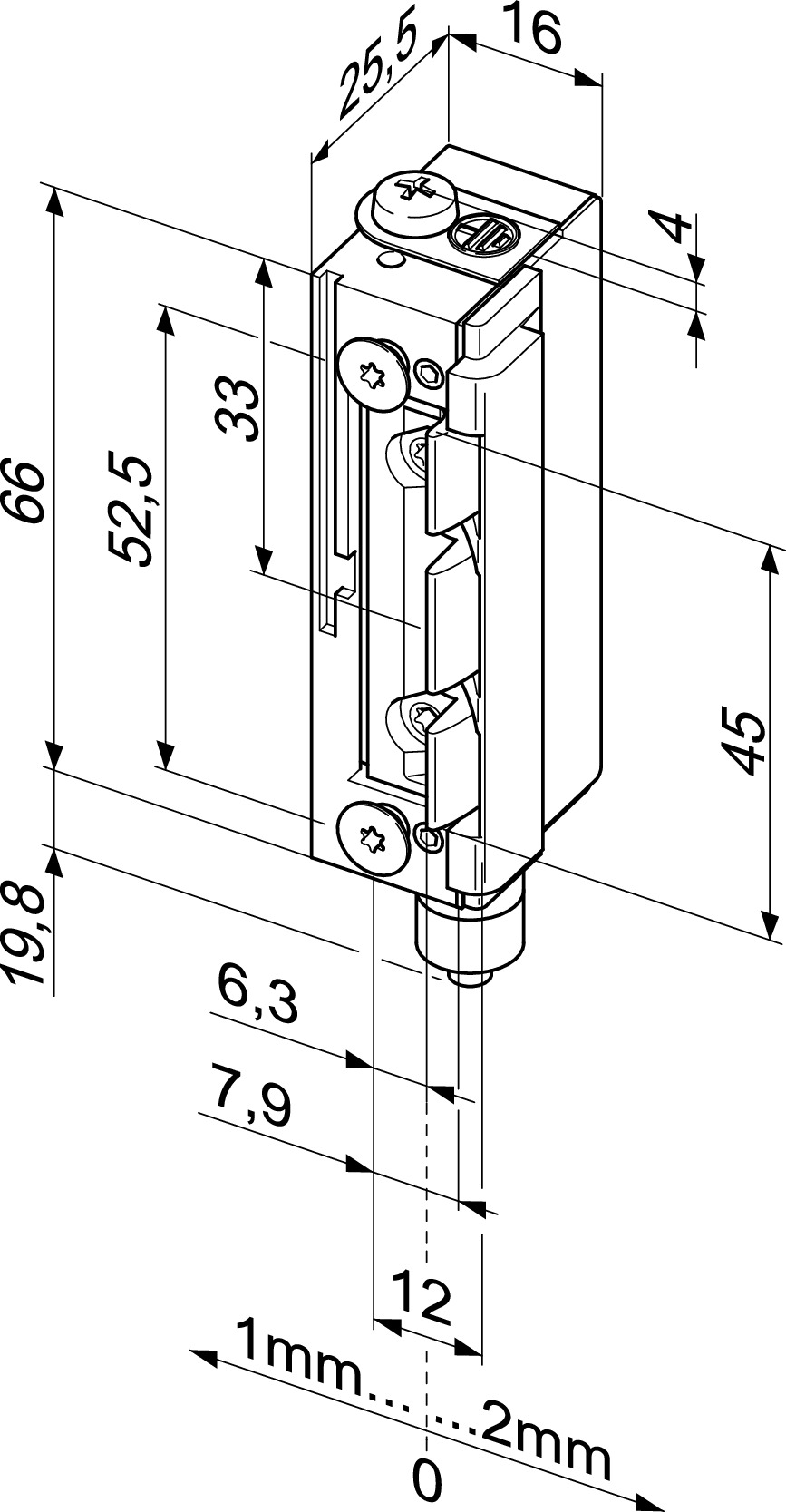

| Height | 90 mm |
| Width | 20.1 mm |
| Depth | 25.5 mm |
| Ambient temperature | -10 °C to +50 °C |
| Required hose diameter | Inside: 4 mm; outside: 6 mm |
| Installation position | Vertical and horizontal |
| Load cycles for in-plant test | 500000 |
| Certified in compliance with | EN 14846:2008 |
