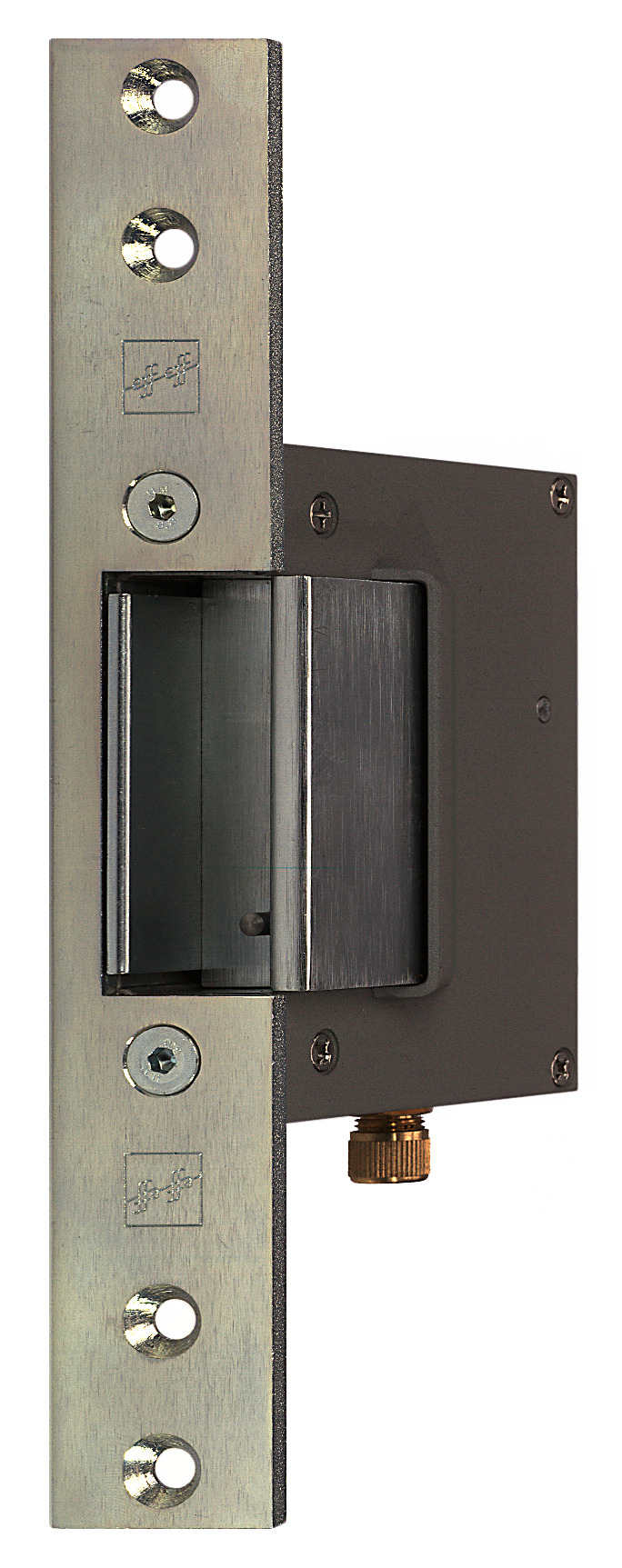

Electric strike 9104.80
Product description
Model with monitoring contact as potential-free changeover contact,
Overview of Advantages
- Sturdy design for demanding requirements
Monitoring contact (RR) | Yes |
Fail-locked | Yes |
Break-in resistance | 15000 N |
Height | 116 mm |
Width | 28.5 mm |
Depth | 91 mm |
Operating temperature range | -15 °C to +40 °C |
Installation position | Vertical and horizontal |
Order number | Description |
---|---|
9104.80-----E11 | Without striking plate, 12 V AC/DC |
9104.80-----F11 | Without face plate, 24 V AC/DC |
9104.80-----E41 | Without strike plate, 12V DC 100% duty cycle |
9104.80-----F41 | Without strike plate, 24V DC 100% duty cycle |
