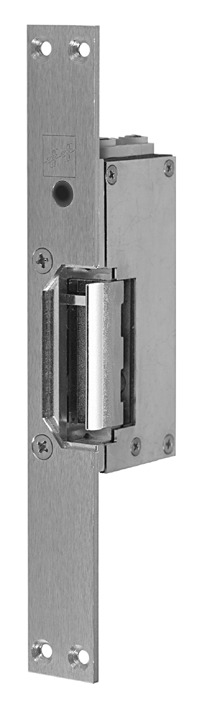

Electric strike 12/140
Product description
Suitable for twin bolt locks and doors without fire safety requirements.
Overview of Advantages
- Integrated electrical switch-off when lock is engaged
Note
- If installed in fire doors, the approval for the fire protection element is no longer valid
Mechanical unlocking (E) | Yes |
Fail-locked | Yes |
Break-in resistance | 3000 N |
Width | 25 mm |
Height | 99.4 mm |
Depth | 45 mm |
Operating temperature range | -20 °C to +40 °C |
Installation position | Vertical and horizontal |
Material housing | Zinc die-cast |
Latch material | Brass |
