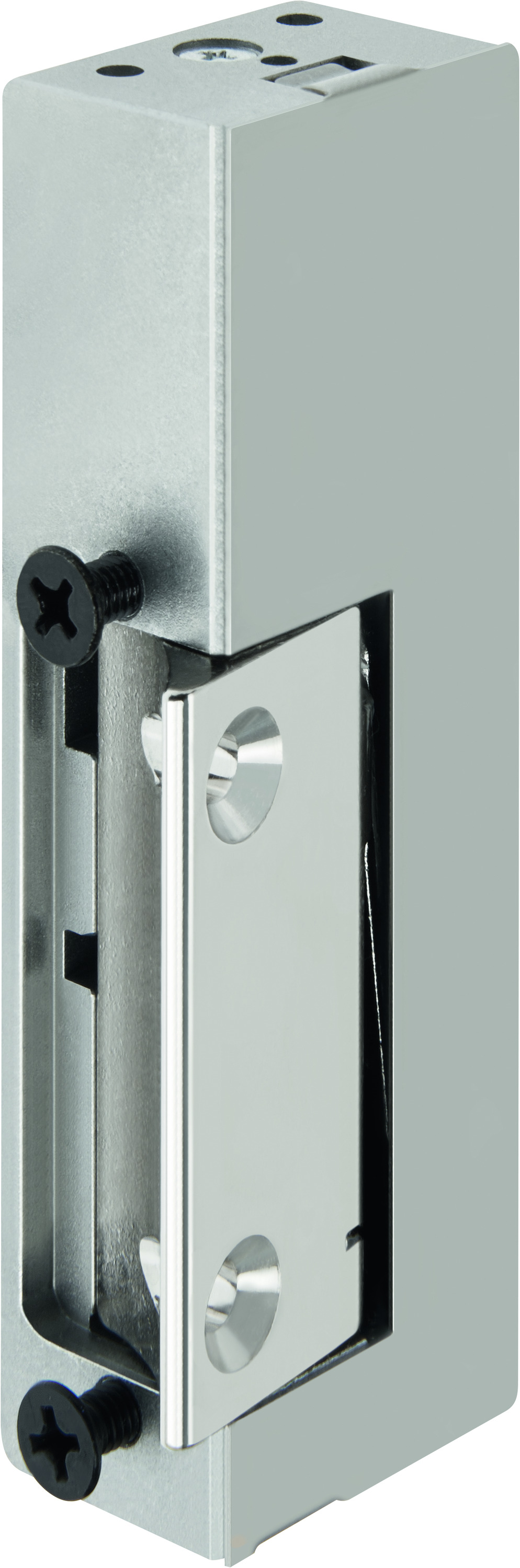

Electric strike 14.400

Product description

Electric strike for horizontal panic door locks. Suitable for the surface-mounted casing ATP-------20105-01

Overview of Advantages

  • Vertical and horizontal mounting possible
  • Due to 180° fitting, can be used DIN right and left

Scope of delivery

  • 1 piece electric strike
Technical data
Fail-lockedYes
ATP (anti-panic)Yes
Break-in resistance3000 N
Height90 mm
Width22.6 mm
Depth28 mm
Operating temperature range-15 °C to +40 °C
Installation positionVertical and horizontal
Material housingZinc die-cast
Latch materialCoated brass
Variants that can be ordered
Order number
Description
14.400------D11Without strike plate, 6-12 V AC/DC
14.400------R11Without face plate, 8-16 V AC/DC
14.400------F11Without face plate, 24 V AC/DC
14.400------E31Without striking plate, 12 V DC electric unlocking
14.400------F31Without striking plate, 24 V DC electric unlocking
