Angled strike plate

250 mm long; 4 fixing holes

Product description

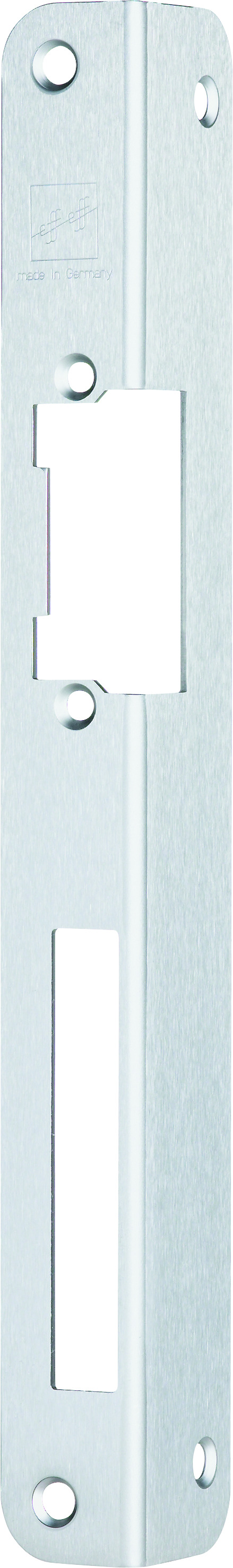

Angled striking plate with latch bolt aperture and dead bolt cutout.

Overview of Advantages

  • 2 mm material thickness
  • For conventional effeff standard electric strike models, except for ProFix® variants

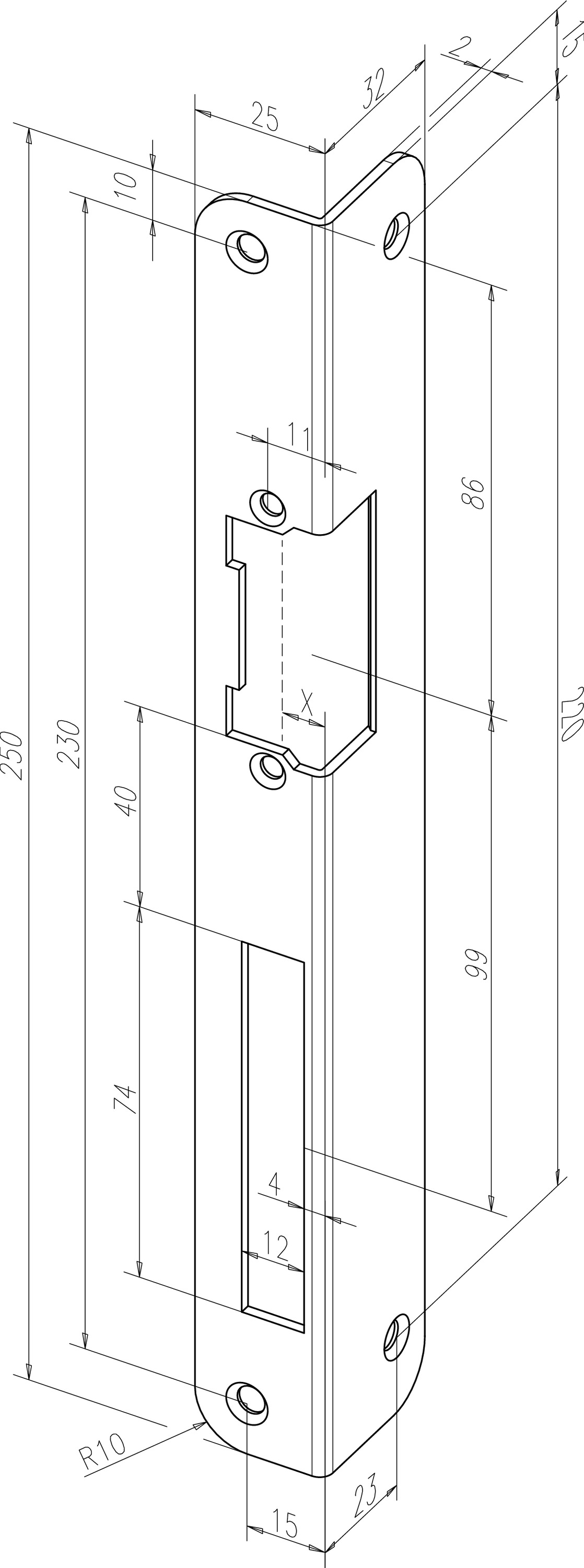

Technical data
Length250 mm
Width25 mm
Thickness2 mm
Depth32 mm
Dead bolt cutoutYes
Latch bolt guideNo
Variants that can be ordered
Order number
Description
-------32402-0#02 Dusty grey
-------32401-0#01 Ducat gold
-------32404-0#250 mm long; 4 fixing holes
-------32435-0#35 Stainless steel
-------32440-0#40 Smoothed, galvanised
