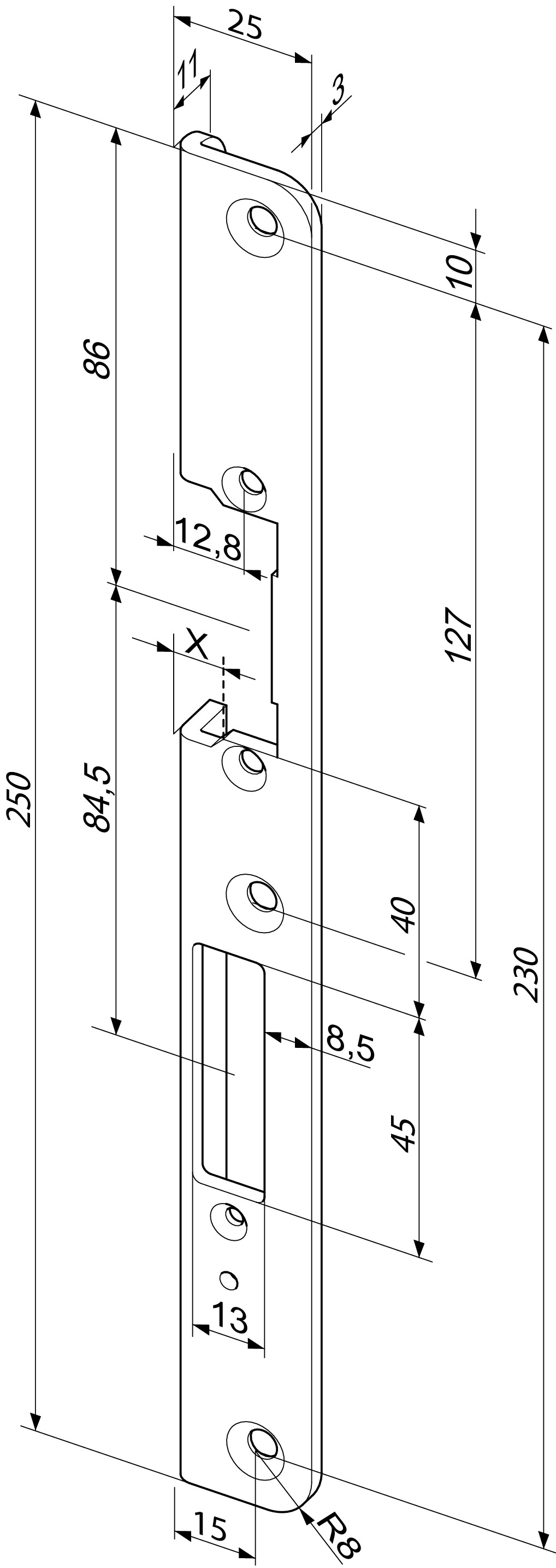

Angled strike plate -------72B35-05
250 x 25 mm, for model series 118, 118E, 118S, 118F
Product description
Angled strike plate with dead bolt cutout and holes for bolt switch contact 878.
Overview of Advantages
- With dead bolt cut-out
Note
- Special features of X dimension: Model series 118.513 = 4.5 – 7.5 mm; Model series 118.500 = 3.5 – 6.5 mm
| DIN-direction | Right |
| Length | 250 mm |
| Width | 25 mm |
| Thickness | 3 mm |
| Depth | 11 mm |
| Dead bolt cutout | Yes |
| Latch bolt guide | No |
| X measurement | 2,5 - 5,5 mm |
| Colour | 35 |
| Colour | Stainless steel |
