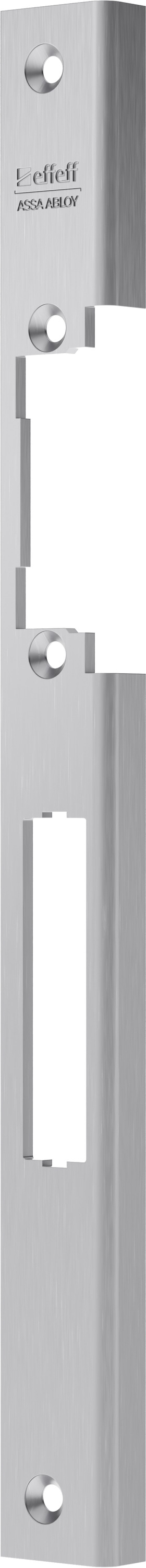

Angled strike plate

250 x 22 x 10 mm, including dead bolt pocket; for ProFix® 2 Model Range

Product description

Angled striking plate with dead bolt cut-out.

Overview of Advantages

  • Slim-fit outer dimensions
  • Supply includes bolt pocket
  • With dead bolt cut-out
  • Suitable for standard-compliant steel frames
  • 2,5 mm material thickness
  • For effeff ProFix®2 electric strike models of the series 118.14

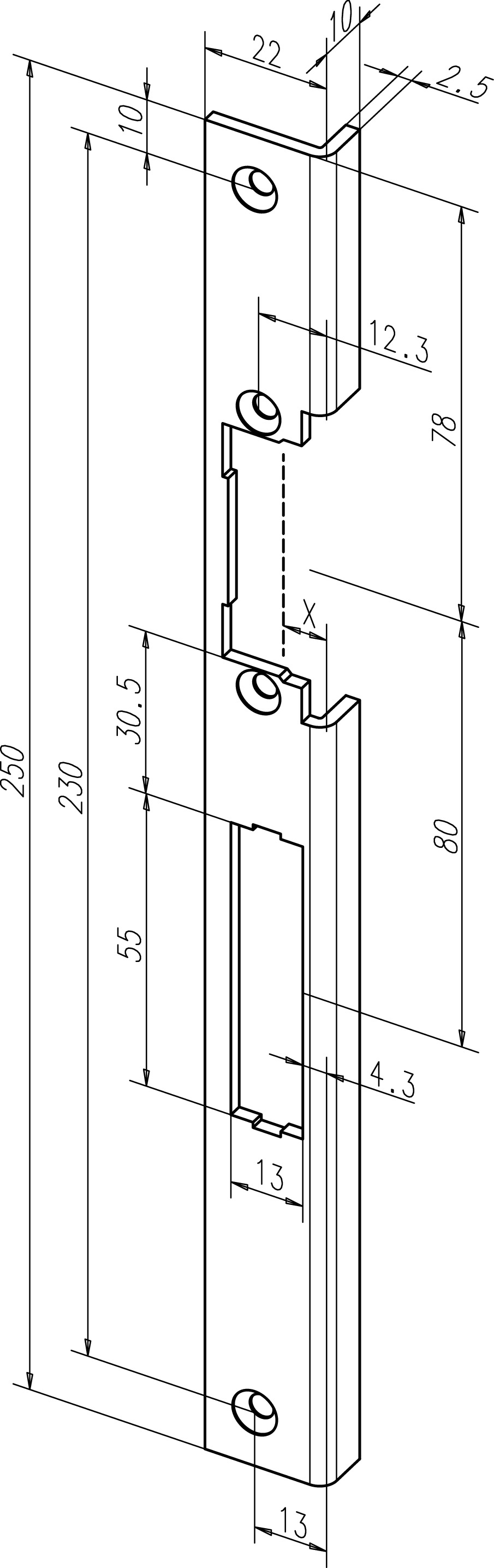

Technical data
Length250 mm
Width22 mm
Depth10 mm
Thickness2.5 mm
X measurement4,0 - 7,0 mm
Dead bolt cutoutYes
Variants that can be ordered
Order number
Description
-------44B35-0#35 Stainless steel
