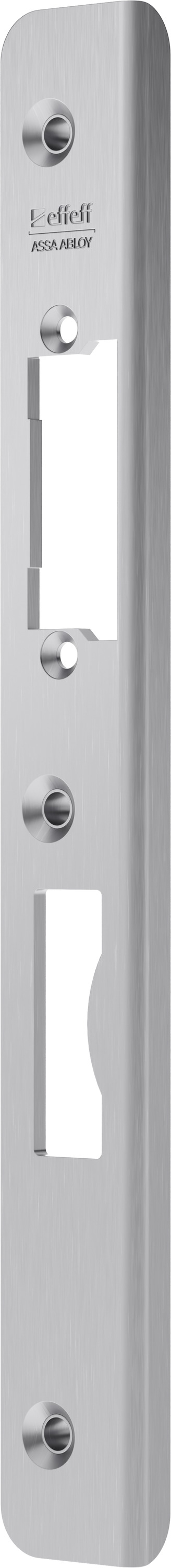

Angled strike plate

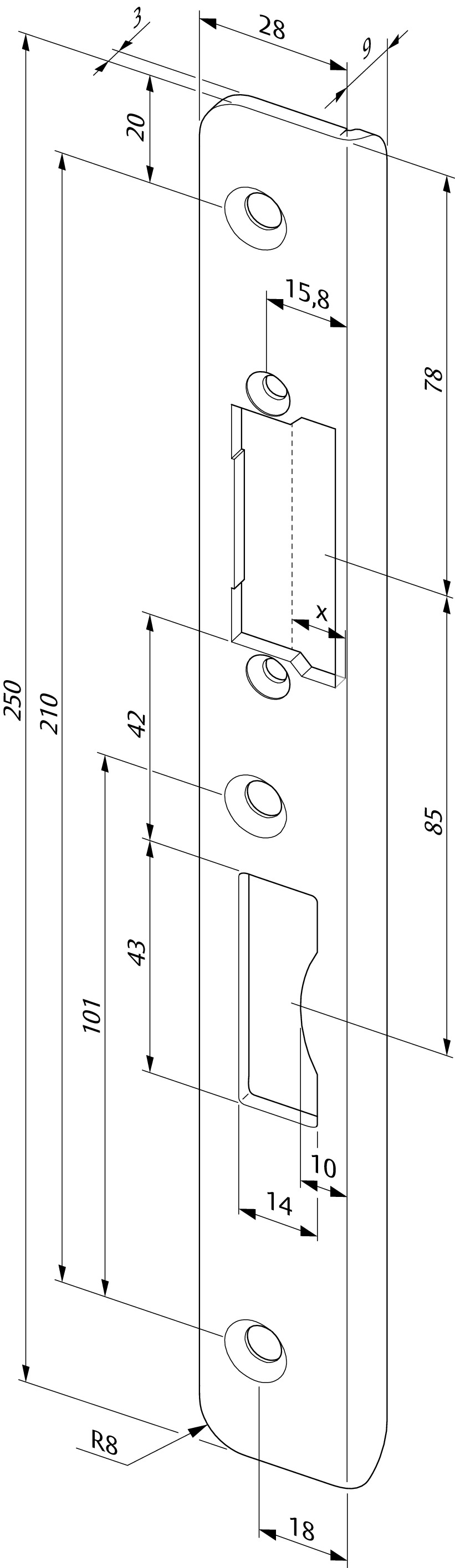

Long, curved end; 250 x 9 x 28 mm; for ProFix® 2 Model Range; includes 3 bolts

Product description

Angled striking plate with dead bolt cut-out.

Overview of Advantages

  • Slim-fit outer dimensions
  • with bolts, 16x8mm calibre for greater stability
  • With dead bolt cut-out
  • 3 mm material thickness
  • For conventional effeff ProFix®2 electric strike models
Technical data
Length250 mm
Width28 mm
Thickness3 mm
X measurement7,5 - 10,5 mm
Dead bolt cutoutYes
Variants that can be ordered
Order number
Description
-------45B35-0#35 Stainless steel
