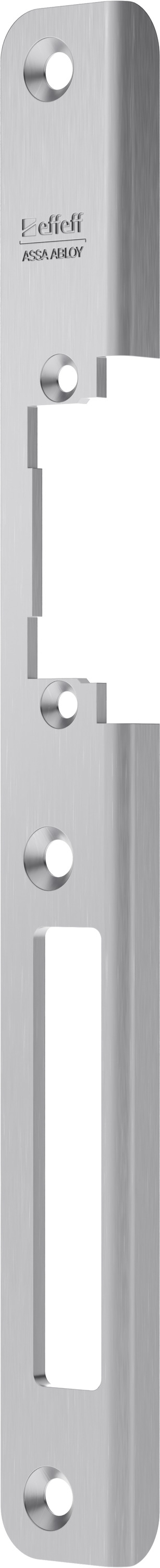

Angled strike plate

Curved end; 250 x 10 mm; for Model Range ProFix® 2

Product description

Angled striking plate with dead bolt cut-out.

Overview of Advantages

  • Slim-fit outer dimensions
  • With dead bolt cut-out
  • Suitable for standard-compliant steel frames
  • 3 mm material thickness
  • For effeff ProFix®2 electric strike models of the series 118.14

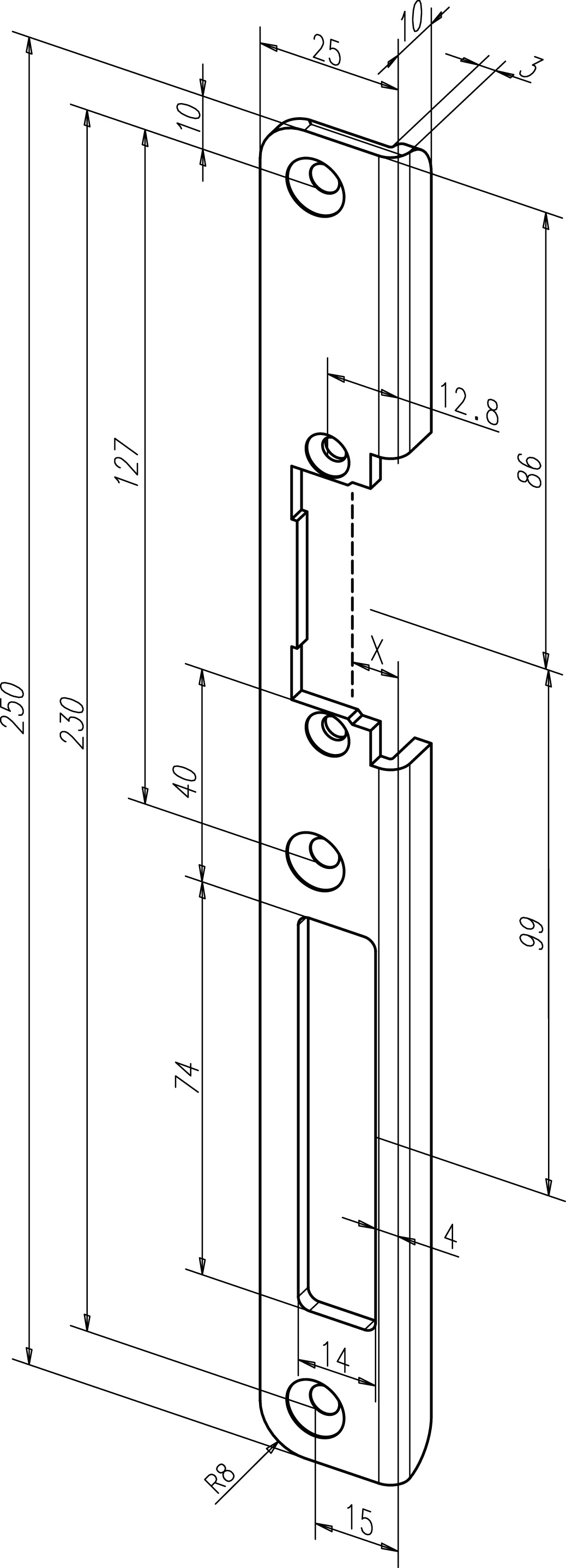

Technical data
Length250 mm
Width25 mm
Thickness3 mm
X measurement4,5 - 7,5 mm
Dead bolt cutoutYes
Variants that can be ordered
Order number
Description
-------63B35-0#35 Stainless steel
