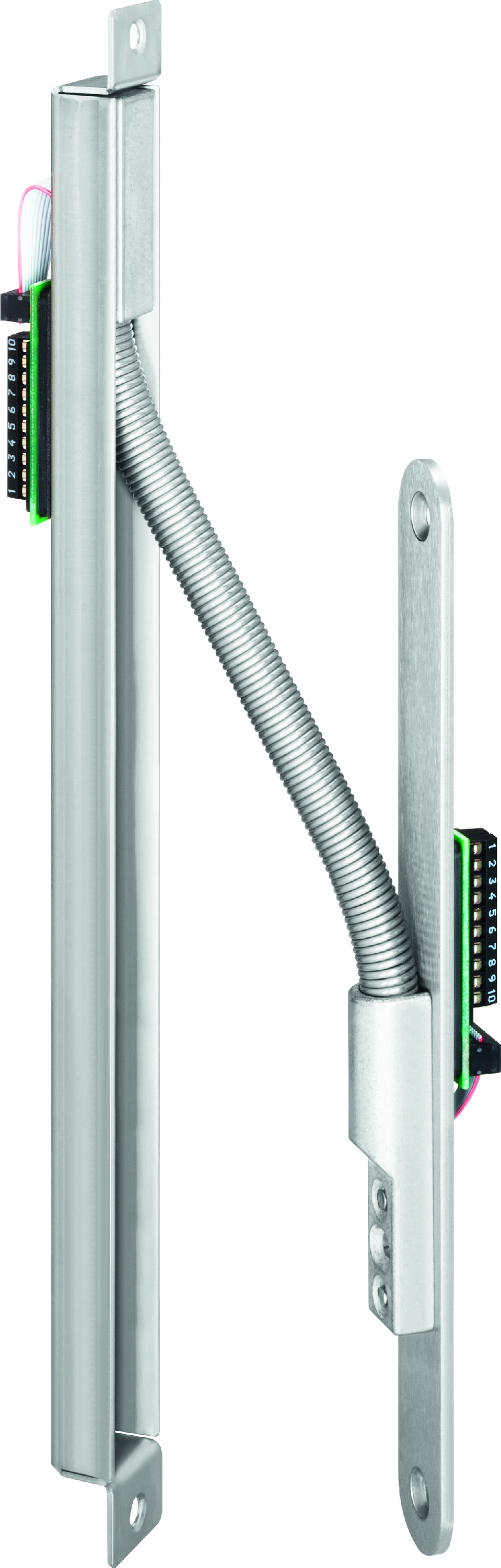

Lead cover
Short model
Product description
24 mm width installation casing
Lead cover for concealed mounting.
With integrated flexible cable to prevent cale breakage
Clamp/plug connector technology, 10-pin
One-sided switch box and curved end mounting plate suitable for wooden profiles
Accessories
Scope of delivery
- Lead cover
Note
- Short model
| Contact resistance per signal | 0.21 Ohm |
| Input operating voltage | 24 V +20% |
| Max. current consumption | 1 A 100% ED, 4 A max. 1 sec. 10% ED |
| Version | Plug-in device |
| Version | Installation casing on one side/curved end mounting plate |
| Material mounting plate / installation casing | Stainless steel |
| Material spiral hose | Stainless steel |
| Max. permissible horizontal rotation | 100 mm |
| Length installation casing / mounting plate | 330 mm / 228 mm |
| Width installation casing / mounting plate | 24 mm / 24 mm |
| Depth installation casing / mounting plate | 33 mm /19 mm |
| Cycles at 180 turns | 1000000 |
| Signal transmission | 10-pin |
