Lead cover
Short model
Product description

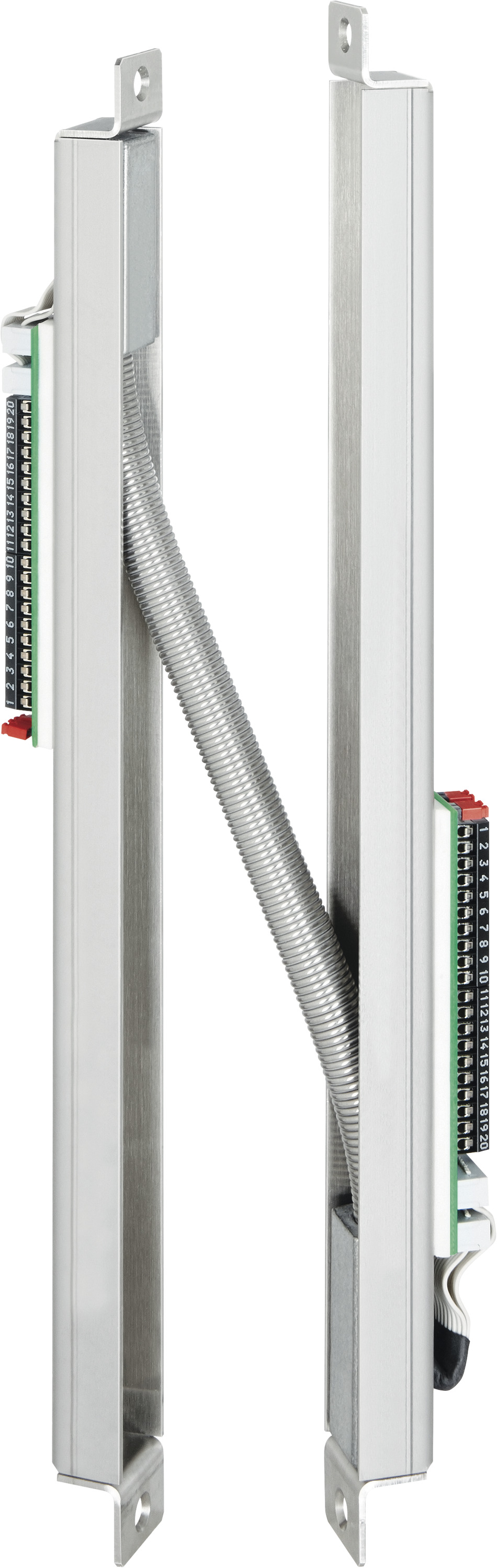

20-pin lead cover for power transmission between frame and leaf
Overview of Advantages
- Lead cover for concealed mounting.
- 24 mm width installation casing
- With integrated flexible cable to prevent cale breakage
- Clamp/plug connector technology, 20-pin
- Installation casing on both sides
- With 2 jumpers to the bridge of PIN 1+2 as well as 3+4 for increase of power load
- The particular advantage of this mounting type is being able to position the casing practically flush with the frame (<1 mm distance when door is closed). Minimal gaps for door rotation, as with inside hinges, for instance, do not result in the door jamming.
| Input operating voltage | 24 V +20% |
| Max. current consumption | 1 A 100% ED, 4 A max. 1 sec. 10% ED |
| Max. current consumption jumper 1+2 connected | 2 A 100% ED, 5 A max. 1 sec. 10% ED |
| Contact resistance per signal | 0.21 Ohm |
| Signal transmission | 20-pin |
| Connecting cable | Plug-in device |
| Version | Installation casing on both sides |
| Material installation casing | Stainless steel |
| Material spiral hose | Stainless steel |
| Max. permissible horizontal rotation | 100 mm |
| Cycles at 180 turns | 1000000 |
| Length | 330 mm |
| Width | 24 mm |
| Depth | 33 mm |
