Supplementary locking system 9338RR
Product description

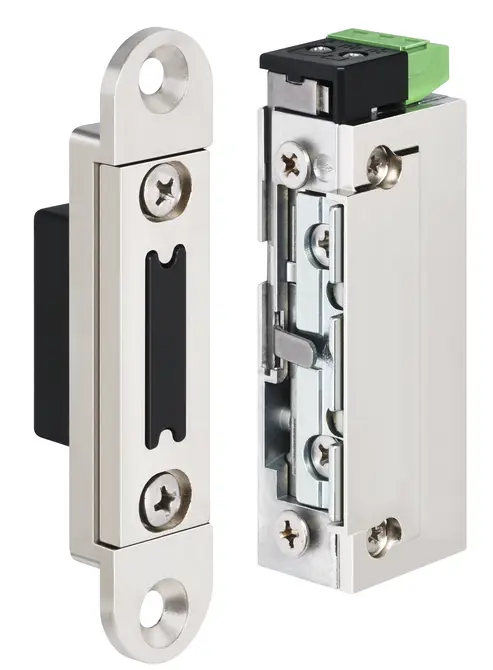

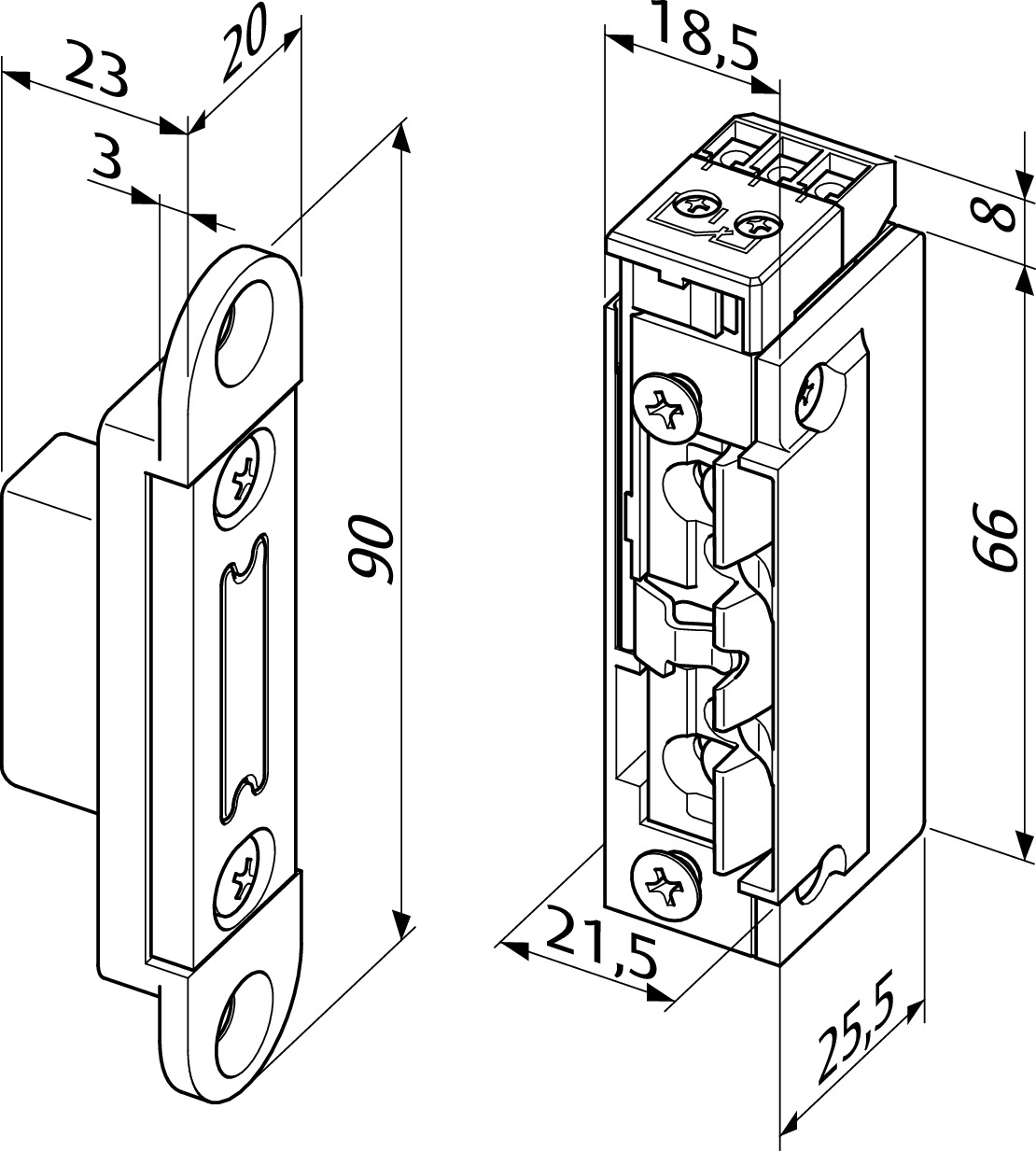

Version with magnet bolt counterpart, with fail-unlocked strike 138TQ53
Model with monitoring contact, actuated by the latch bolt.
Overview of Advantages
- Latch insertion on the door frame removed
- Visually attractive, concealed installation, magnet bolt is retracted when door open
- Low opening force due to weak keeper spring
- No closing force due to magnet bolt
- Quiet locking and unlocking
- The supplementary locking system 9338 is designed as a supplementary locking system for versatile applications for the locking of doors
- Example for other usage options: Office doors, laboratory doors, interlocks, wet cells in hospitals, special doors
- Universal installation position, vertical and horizontal
- Compatible with model 9334
- Load cycles factory test: 220000
Scope of delivery
- Delivery with magnet bolt counterpart and fail-unlocked strike 138TQ63 with monitoring contact and stainless steel steel striking plate no. 34G
| Adjustable keeper (FF, FaFix®) | Yes |
| Monitoring contact (RR) | Yes |
| Diode (05) | Yes |
| Fail-unlocked | Yes |
| Weak latch bolt spring | Yes |
| Noise reduction | Yes |
| Input operating voltage | ± 10% |
| Current consumption 12 V DC | 235 mA |
| Current consumption 24 V DC | 150 mA |
| Bolt throw | 10 mm |
| Load cycles for in-plant test | 220000 |
| Installation position | Vertical and horizontal |
| Operating temperature range | -15 °C to +40 °C |
| Break-in resistance | 3000 N |
| Max. pre-load | 30 N |
| Max. latch preload DC (stabilised) | 50 N |
| material bolt | Plastic |
| Latch bolt engaging depth | 5.5 mm |
| FaFix® adjustment range | 4 mm |
| Order number | Description |
|---|---|
| 9338RR------E91 | Without striking plate, 12 V DC |
| 9338RR------F91 | Without striking plate, 24 V DC |
