Supplementary locking system 9318

effeff Supplementary locking system

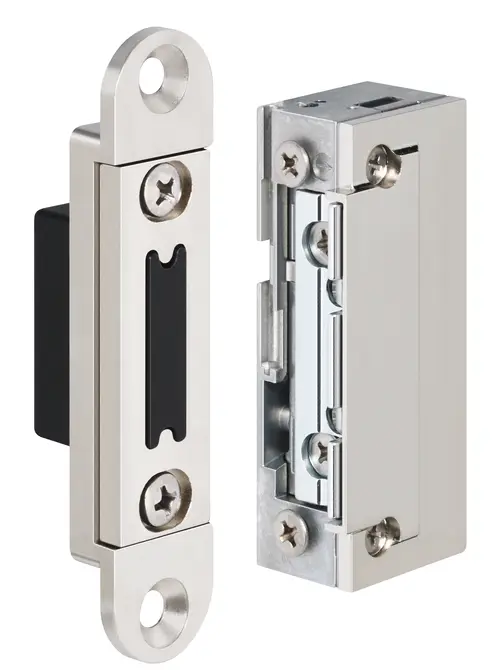

Version with magnet bolt counterpart, with fail-locked strike 118TQ53

Latch insertion on the door frame removed
Visually attractive, concealed installation, magnet bolt is retracted when door open
Low opening force due to weak keeper spring
No closing force due to magnet bolt
Quiet locking and unlocking
The supplementary locking system 9318 is designed as a supplementary locking system for versatile applications for the locking of doors
Example for other usage options: Office doors, laboratory doors, interlocks, wet cells in hospitals, special doors
Universal installation position, vertical and horizontal
Compatible with model 9314

Delivery as a complete set with striking plate or as a set without striking plate

Adjustable keeper (FF, FaFix®)	Yes
Fail-locked	Yes
Bi-directional diode	Yes
Weak latch bolt spring	Yes
Noise reduction	Yes
Input operating voltage	± 10 %
Break-in resistance	3000 N

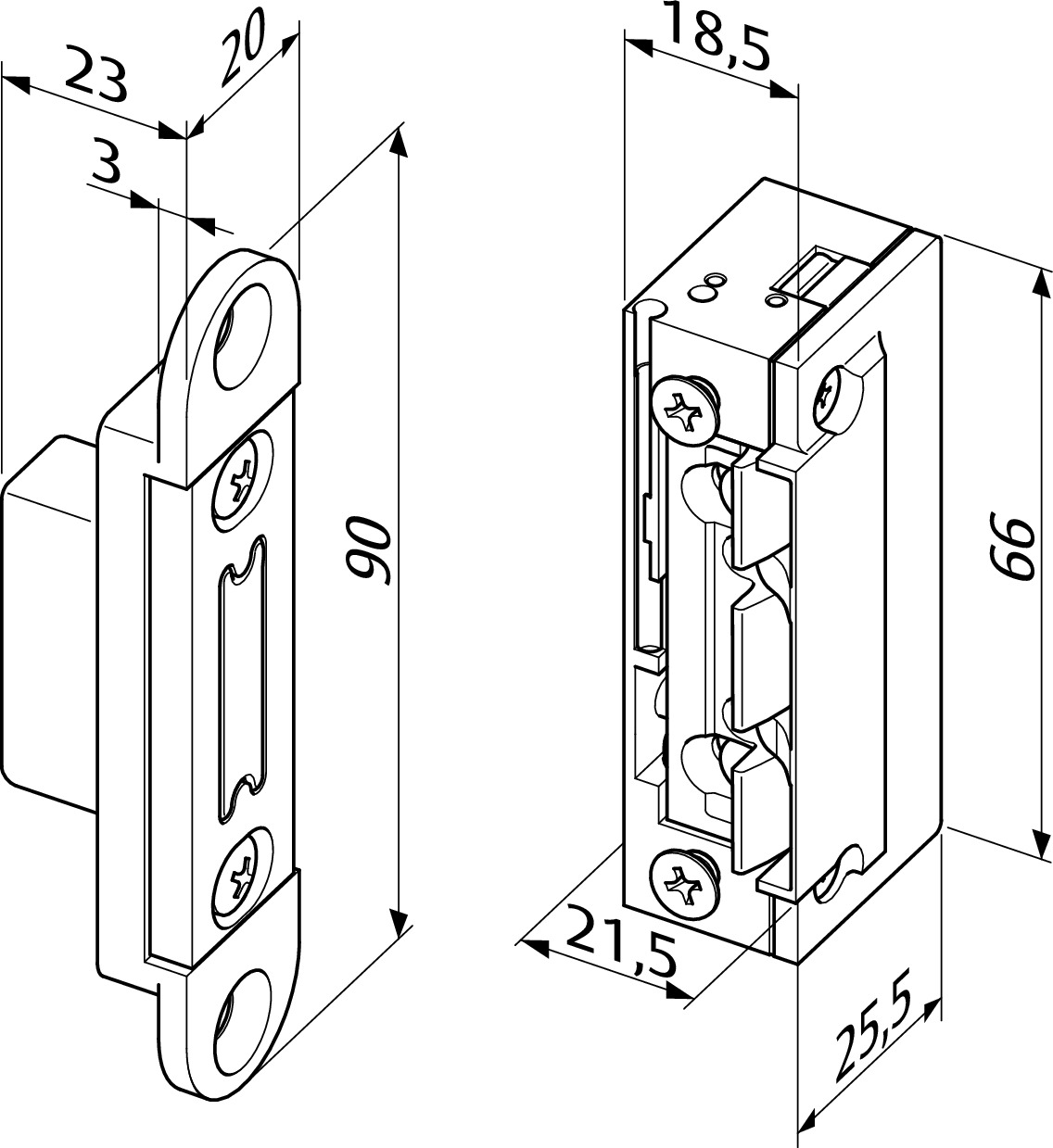

Height	90 mm
Width	20 mm
Depth	23 mm
FaFix® adjustment range	1 mm
Operating temperature range	-15 °C to +40 °C
Installation position	Vertical and horizontal
Load cycles for in-plant test	220000
Bolt throw	10 mm
material bolt	Plastic

Order number	Description
9318--------A71	Without striking plate, 12-24V AC/DC
9318--------B71	Without striking plate, 22-42 V AC/DC
