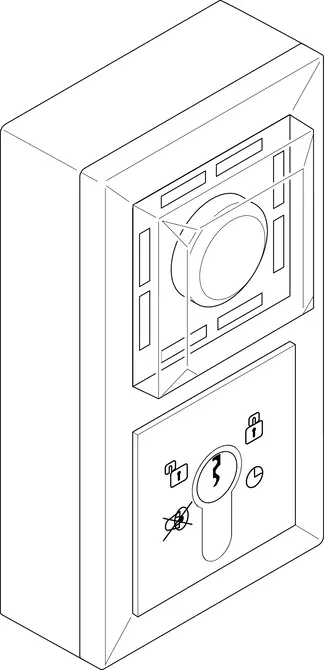

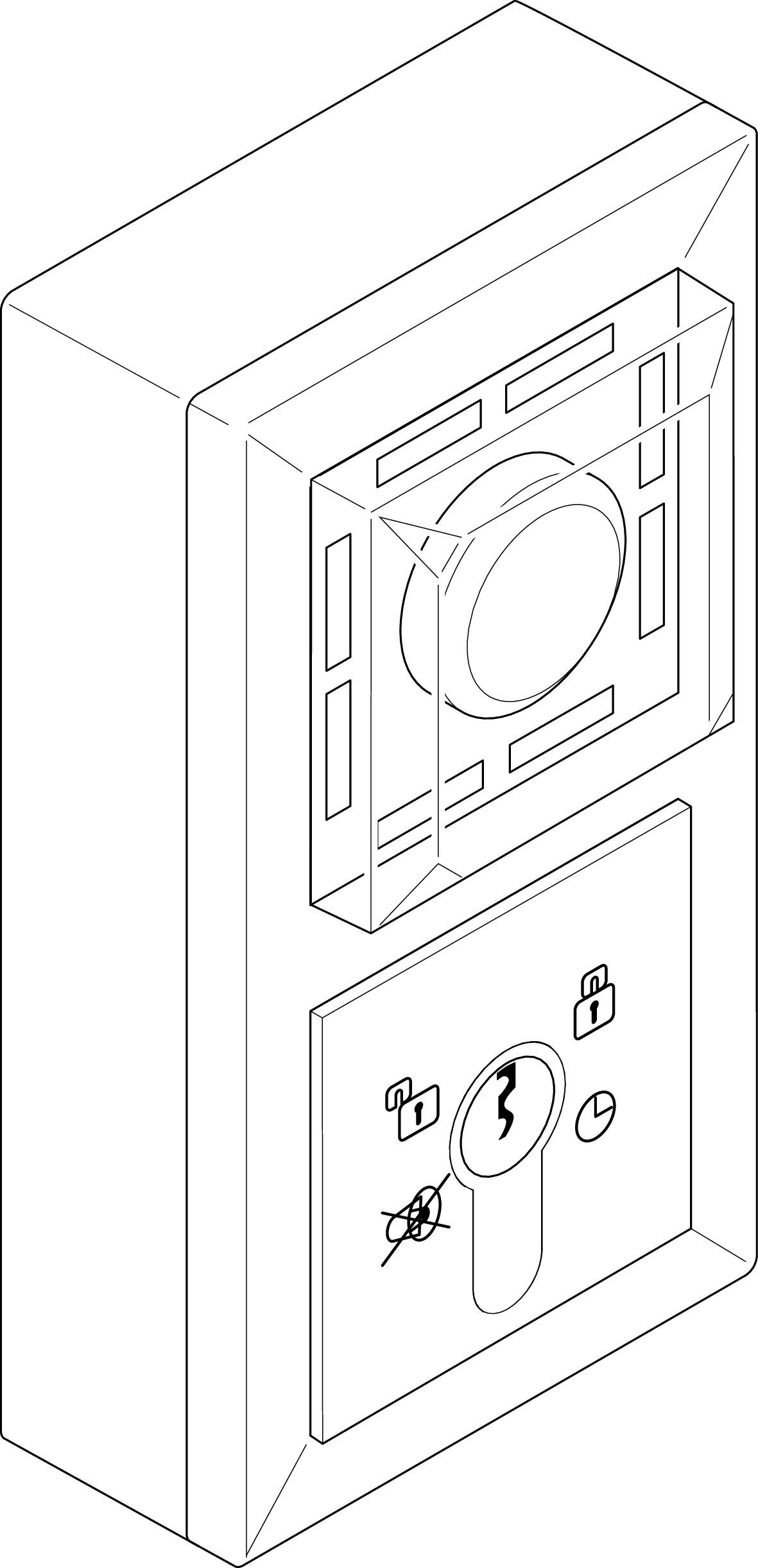

Surface-mounted escape door control terminal, offline

Gira E2 surface-mounted version – pure white gloss

To control electric locking elements in doors along escape routes; certified in compliance with EltVTR and DIN EN 13637:2015.

Emergency button lights up; features reusable, non-detachable, shatterproof protective cover
Integrated visual door status indicator with high-performance LEDs (green / red / yellow) signalling unlocked / locked / alarm status
Acoustic alarm device for alarm systems
Emergency button actuation sign
Tamper contact
Adjustable time periods for max. permanent release, delay permanent release, temporary release, pre-alarm, alarm time, guidance signal
Monitoring of time door is open in the case of temporary unlocking
With an input featuring adjustable parameters for:
Control of locking and unlocking, temporary release, alarm acknowledgement via a potential-free contact in operating devices, such as card readers and door code device, or
Temporary release using an access control system, or
Priority locking via burglar alarm system, or
Unlocking via timer, etc.
With an input for:
Emergency release via fire alarm system
With a relay output featuring adjustable parameters for:
Door locked/unlocked, or
Door open/closed, or
Collective alarm, or
Individual alarm, or
Activation of electric strike/motorised lock/door automatics/arrestor system
Connections:
SYSCON-4: power supply
SYSCON-5: operating unit
Plug-in screw terminals
Product version: 2
Model range 1385: TS bus interface for parameterisation using software (FT Manager) and networks for parallel operation of visual display software, panel and OPC server

Rated voltage	12-24 VDC SELV
Output current	Max. 1 A (depending on the power supply used)
Power consumption	0.1A at 24V
Outputs	1x; 30 V / 1 A switchover contact; adjustable parameters
Control	Yes, integrated
Power supply	Mains receiver necessary
Certified in compliance with	EltVTR; DIN EN 13637:2015
TS-Bus interface	Only model series 1385
Connection to panel, visualisation system, OPC server	Only model series 1385
Configured centrally using FT Manager	Only model series 1385
Stand-alone operation with I/O module	Only model series 1385
Stand-alone operation (offline)	Yes
Emergency switch	Yes
Control element	Key switch with Euro profile cylinder; cam position adjustable 8 x 45°; length 30.5 mm
Setting of times and functions	Via key switch; model series 1385 additionally via FT Manager (in conjunction with with bus controller)
Operating temperature range	-5 °C to +40 °C
Class of protection	IP 30
Area of application	For indoor use, without condensation
Dimension	Double frame in switch range; installation in 2 flush-mounted switch boxes, 62.5 mm deep, surface-mounted version incl. surface-mounted housing
Inputs	1x parameterisable; 1x fire alarm system
Key switch on opposite side to direction of escape	Yes (without display)
