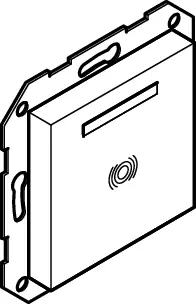

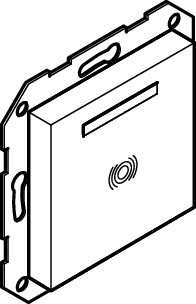

Alarm signal 1385EB1
Product description
For connection to an escape door control module or door monitoring module to provide additional signalling for acustic and optical alarms.
Power supplied via SYSCON 4 and system activation via the universal output on the escape door control terminal.
| Rated voltage | 12-24 VDC SELV |
| Stand-by current power input | 20 mA |
| Power input when signalling | 50 mA |
| LED display | Yellow |
| Actuation input (optocoupler) | Max. 30 V DC 7 mA |
| Sound pressure at 12 V DC and 1m distance | About 80 dB A |
| Sound pressure at 24 V DC and 1m distance | About 92 dB A |
| SYSCON 4 connections | 2 |
| Order number | Description |
|---|---|
| 1385EB1-1--0400 | Jung AS500, alpine white |
| 1385EB1-1--1800 | Jung AS500, green |
| 1385EB1-6--0400 | Jung LS990, alpine white |
| 1385EB1-6353500 | Jung LS990, stainless steel |
| 1385EB1-2--0400 | Gira E2, pure white gloss |
| 1385EB1-2--3500 | Gira E2, aluminium finish |
