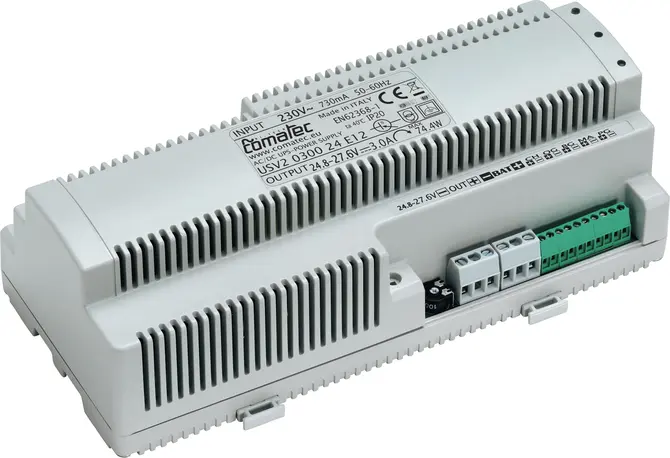

Emergency power supply model 1006

Top hat rail installation

  • ArtNo: 1006-24030---10
  • EAN: 4042203798687

Product description

Uninterruptible AC/DC UPS with integrated charging level and battery management, with signal outputs for remote control. Connection terminals for load and battery. For distributor installation.

Technical data
Operating voltage230 V AC/ / ± 15 %; 50/60 Hz
Output voltage24.8 – 27.6 V DC (stabilised)
Output currentmax. 3 A DC (72 W)
Operation conditioncontinuous
Connectable accumulator4 – 14 Ah lead-acid batteries
Recommended accumulatore.g. FIAMM FG20451 (12 V – 4.5 Ah) or YUASA NP7-12 (12 V – 7 Ah)
Mounting methodDistributor installation
Dimension210 x 93 x 66.5 mm
Sub-units12
Class of protectionIP20
Operating temperature range-10 °C to + 40 °C
Function indicatorLED
Outputs for messagesOpen-Collector, max. 24 VDC / 30 mA
Certified in compliance withDIN EN 62368-1
