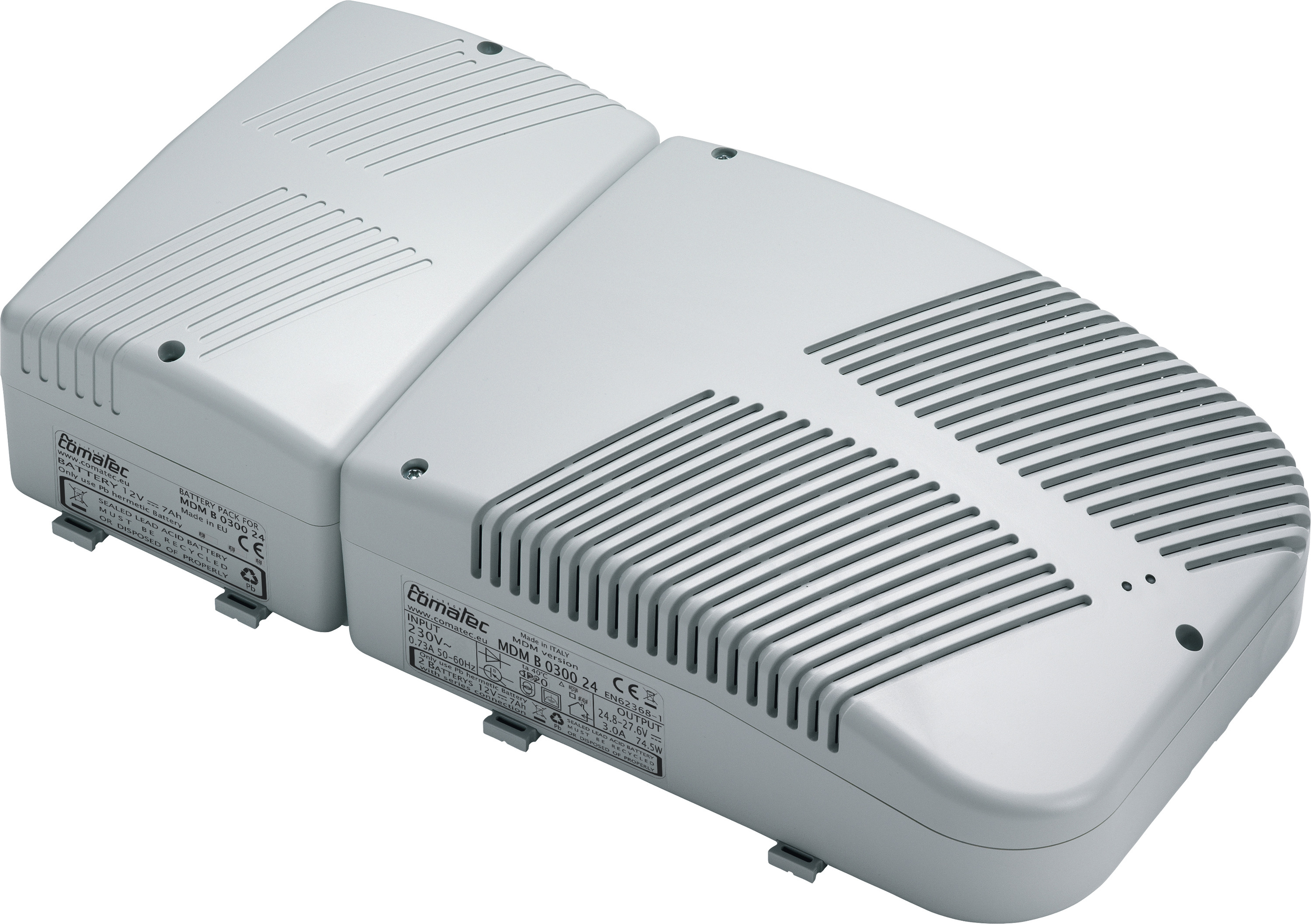

Emergency power supply model 1006
Surface-mounted housing
Product description
Uninterruptible AC/DC UPS with integrated charging level and battery management, with signal outputs for remote control. Connection terminals for load and battery. In surface-mounted plastic housing, complete with batteries.
Operating voltage | 230 V AC/ ± 15 %; 50/60 Hz |
Output voltage | 24.8 – 27.6 V DC (stabilised) |
Output current | max. 3 A DC (72 W) |
Operation condition | continuous |
Capacity | Rechargeable battery: 2 x 12 V / 7 Ah |
Mounting method | Wall mount |
Dimension | 335 x 180 x 84 mm |
Class of protection | IP20 |
Operating temperature range | -10 °C to + 40 °C |
Function indicator | LED |
Outputs for messages | Open-Collector, max. 24 VDC / 30 mA |
Certified in compliance with | DIN EN 62368-1 |
