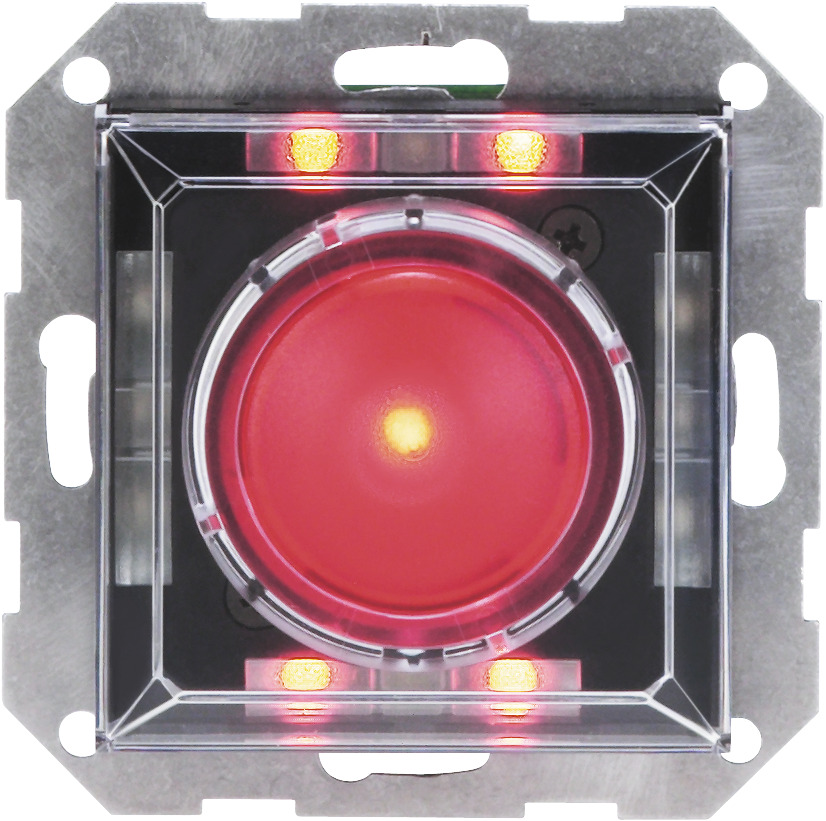

Flush-mounted emergency button

Suitable for Gira or Jung switch range

  • ArtNo: 1380E10------00
  • EAN: 4042203336919

Product description

For connection to the effeff escape door control device, with reusable, cannot be lost, splinter-proof emergency switch protective bonnet and integrated optical door status display with symbolic disposed, super-light high power LED series with sabotage switch.

Scope of delivery

  • 1 emergency button
  • 1 operating manual

Note

  • Frames are not enclosed with flush-mounted emergency button.
Technical data
Rated voltage12-24 VDC SELV
Power consumption90 mA
ControlNo, external escape door control unit required
Emergency switchYes
LED displayYes (red, green, yellow)
BuzzerYes
Sabotage switchYes
Operating temperature range0 °C to +40 °C
Class of protectionIP 30
Switching element2 NC, positive opening 24 V DC/2 A max. ohmic load
