Key switch module 1385ES3

Product description

Key switch for connection to an effeff escape door control module or door monitoring module for controlling unlocking, locking, temporary unlocking and alarm resetting, integrated tamper contact

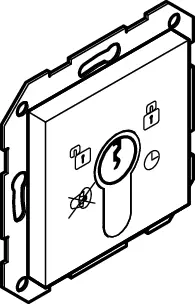

Key switch module

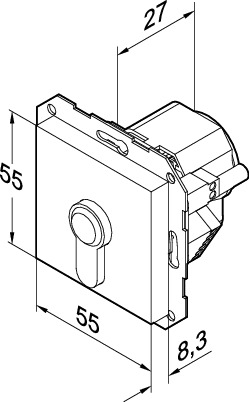

  • For standard flush-mounted boxes: 45 mm depth, with Euro profile half-cylinder, cam position 180°, length 30.5 mm
  • Connection: SYSCON-5
Technical data
Sabotage switchYes
Connections (key switch)Screw/ plug-in terminals
Variants that can be ordered
Order number
Description
1385ES3-1--0400Jung AS500, alpine white
1385ES3-1--1800Jung AS500, green
1385ES3-2--0400Gira E2, pure white gloss
1385ES3-2--3500Gira E2, aluminium finish
1385ES3-6--0400Jung LS990, alpine white
1385ES3-6353500Jung LS990, stainless steel
1385ES3-2--0600Gira E2, anthracite
