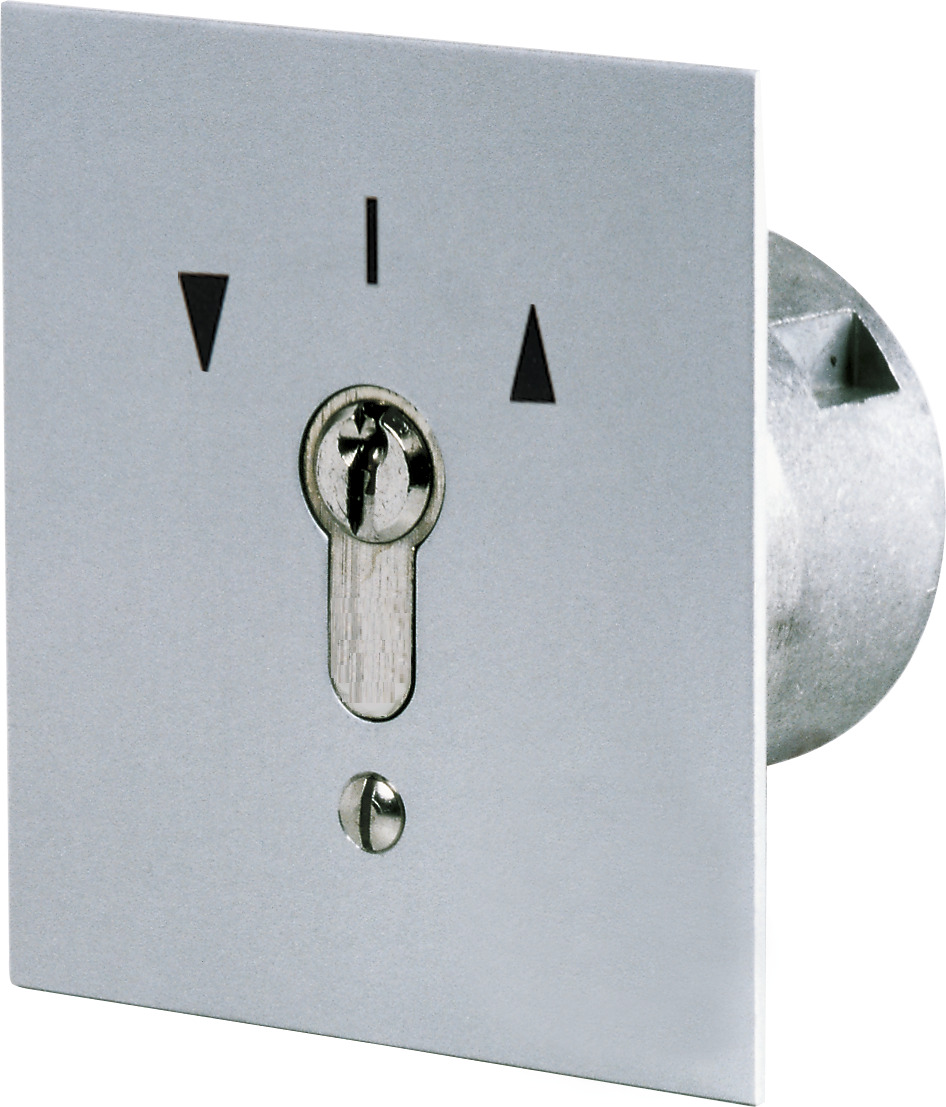

Contact lock GEBA MSR 1

With momentary n.o. contact on both sides; flush-mounted

  • ArtNo: 1140-11------00
  • EAN: 4042203164550

Product description

An operating unit to release doors against direction of escape (outdoors) in conjunction with escape door control unit.

Key switch module

  • With a momentary n.o. contact which can be operated to the left or right,
  • For locking/unlocking, temporary releasing
  • Metal housing
  • Connections: screw terminals

Scope of delivery

  • 1 contact lock
Technical data
Max. contact load capacity24V / 2A
Depth55.5 mm
Height100 mm
Mounting methodFlush-mounted
Type of cylinderDesigned for with profile half-cylinder; cam position 8 x 45°; 30.5 mm long
Width90 mm
LED displayNo
BuzzerNo
Sabotage switchNo
Class of protectionIP 54
