Surface holding magnet 828-x

Product description

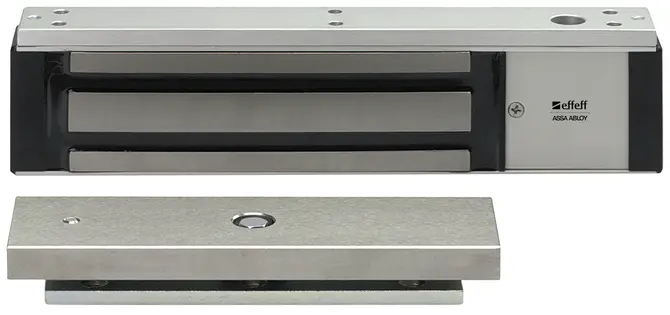

Surface holding magnets are suitable for securing doors in an electro-magnetic system. They are easy to install, as there is no need to make modifications or cut-outs in door frames. Surface holding electro-Magnet 828 contains an integrated contact to monitor locking status (Hall effect sensor).

Overview of Advantages

The rated voltage can be set on the magnet at either 24 V DC or 12 V DC.

Note

Please note at order: In addition to the integrated locking signal, an additional door contact must also be ordered.

Technical data

Input operating voltage	12 V DC / 24 V DC
Max. contact load capacity	2 A
Current consumption 12 V DC	630 mA
Current consumption 24 V DC	315 mA
Holding force	5000 N
Switching contact	Potential-free relay change-over contact
Length	287 mm
Width	37.5 mm
Height	68 mm
Counterplate length	200 mm
Counterplate width	27 mm
Counterplate length	60 mm
Continous duty	100 % ED

Variants that can be ordered

Order number	Description
828-------44F90	With counterplate; with hall-sensor; 12/24 V DC; holding force: 5000 N; EV1 silver
