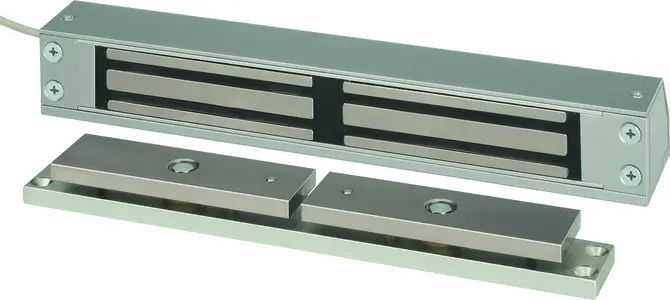

Surface holding magnet 827-IP

Product description

Surface holding magnet in compact design for securing doors along escape routes. Dimensionally stable aluminium housing for surface mounting incl. counter holding plate. A monitoring contact, such as model 10365-6, is not included in the scope of delivery.

Technical data
Input operating voltage12 V DC / 24 V DC
Current consumption 12 V DC500 mA
Current consumption 24 V DC250 mA
Continous duty100 % ED
VersionEinbaumontage
Hall-sensorNo
Class of protectionIP 67
Connection cable length4 m

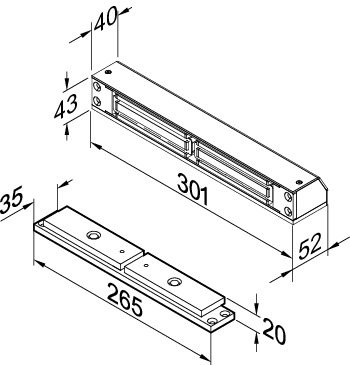

Length301 mm
Width43 mm
Height52 mm
Counterplate length265 mm
Counterplate length35 mm
Counterplate width20 mm
Holding force2500 N
Variants that can be ordered
Order number
Description
827A-IP---44F90With counterplate; 12/24 V DC; holding force 2500 N; IP 67; silver
827A-IP---93F90With counterplate; 12/24 V DC; holding force: 2500 N; IP 67; white
