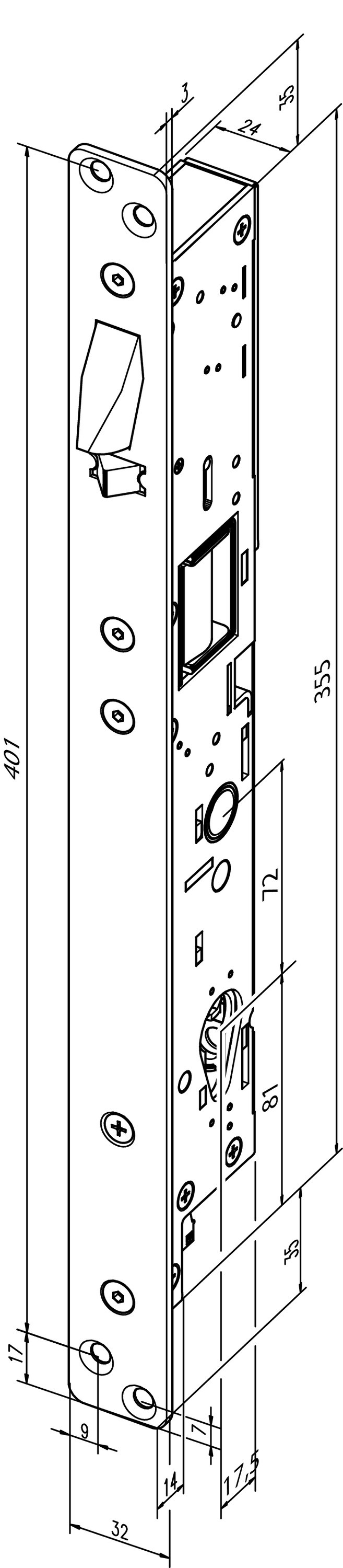

High security dead bolt Technilock® L4 Handle version 844L4
Product description
Electromechanical drop bolt for use in high security areas. The drop bolt is also equipped with a follower for unlocking via a door handle fitting.
Note
- Striking plate is not included in package and needs to be ordered separately.
| Input operating voltage | 24 V DC, stabilised |
| Rated operating voltage tolerance range | -10 % / +15 % |
| Rated current consumption | Impulse current: 4 A (0,5 sec); hold current: 0,25 A |
| Bolt side load breaking force | 20 N |
| Max. bolt side load | 50 N |
| Bolt throw | 20 mm |
| Case depth | Backset + 17,5 mm |
| Operating temperature range | -20 °C to +60 °C |
| Distance between faceplate and striking plate | Min. 2 mm to max. 5,5 mm |
| Order number | Description |
|---|---|
| 844L435EHE-9--- | Handle version - Backset 35 mm, Fail-locked with control latch, Follower 9 mm, Euro Profile cylinder |

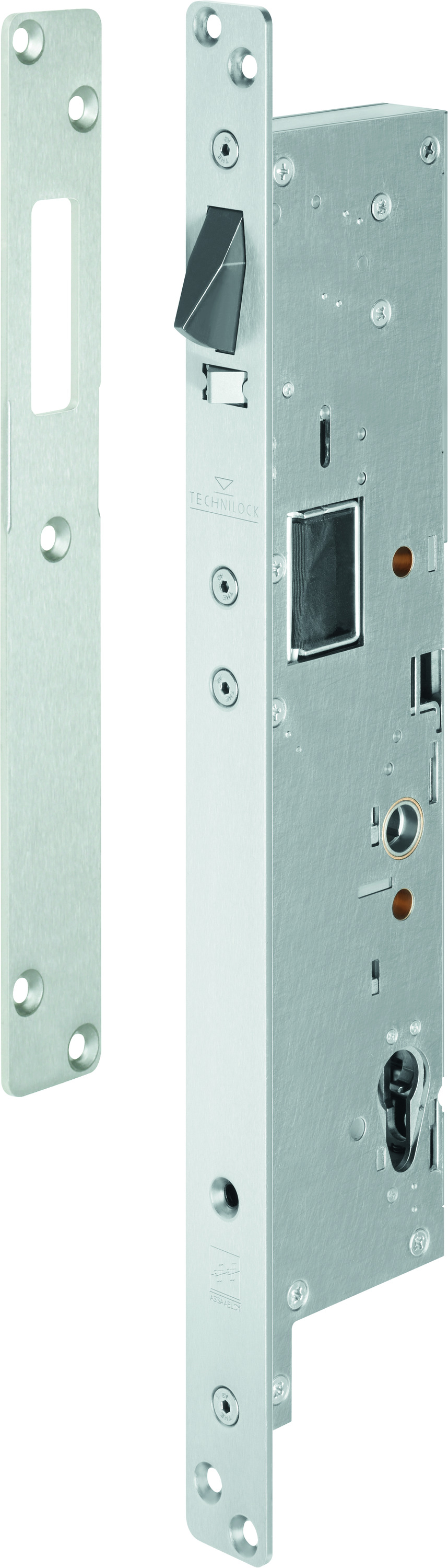

| 844L460EHE-9--- | Handle version - Backset 60 mm, Fail-locked with control latch, Follower 9 mm, Euro Profile cylinder |
