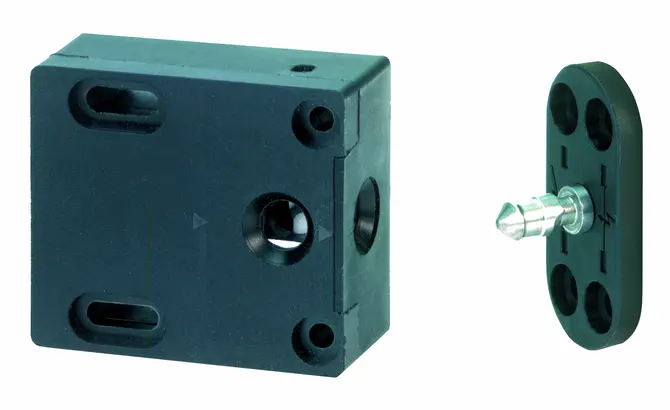

Cabinet lock 1049
Product description
Cabinet locks can be used instead of the mechanical locks commonly used until now, or as an additional electric access control. Installation can be performed from the side or from the front, thus flexible for any installation situation. It does not matter if drawers or doors are to be locked.
Current consumption at 12 V AC | 260 mA |
Current consumption at 12 V DC | 140 mA |
Current consumption at 24 V AC | 130 mA |
Current consumption at 24 V DC | 70 mA |
Length | 48 mm |
Width | 42 mm |
Height | 20 mm |
Class of protection | IP 20 |
Operating temperature range | -10 °C to + 40 °C |
Order number | Description |
---|---|
1049.10-----Q31 | Fail-locked / fail-unlocked reversible; 12/24 V DC eE |
1049.10RR---Q31 | Fail-locked / fail-unlocked reversible; 12/24 V DC eE; monitoring contact |
