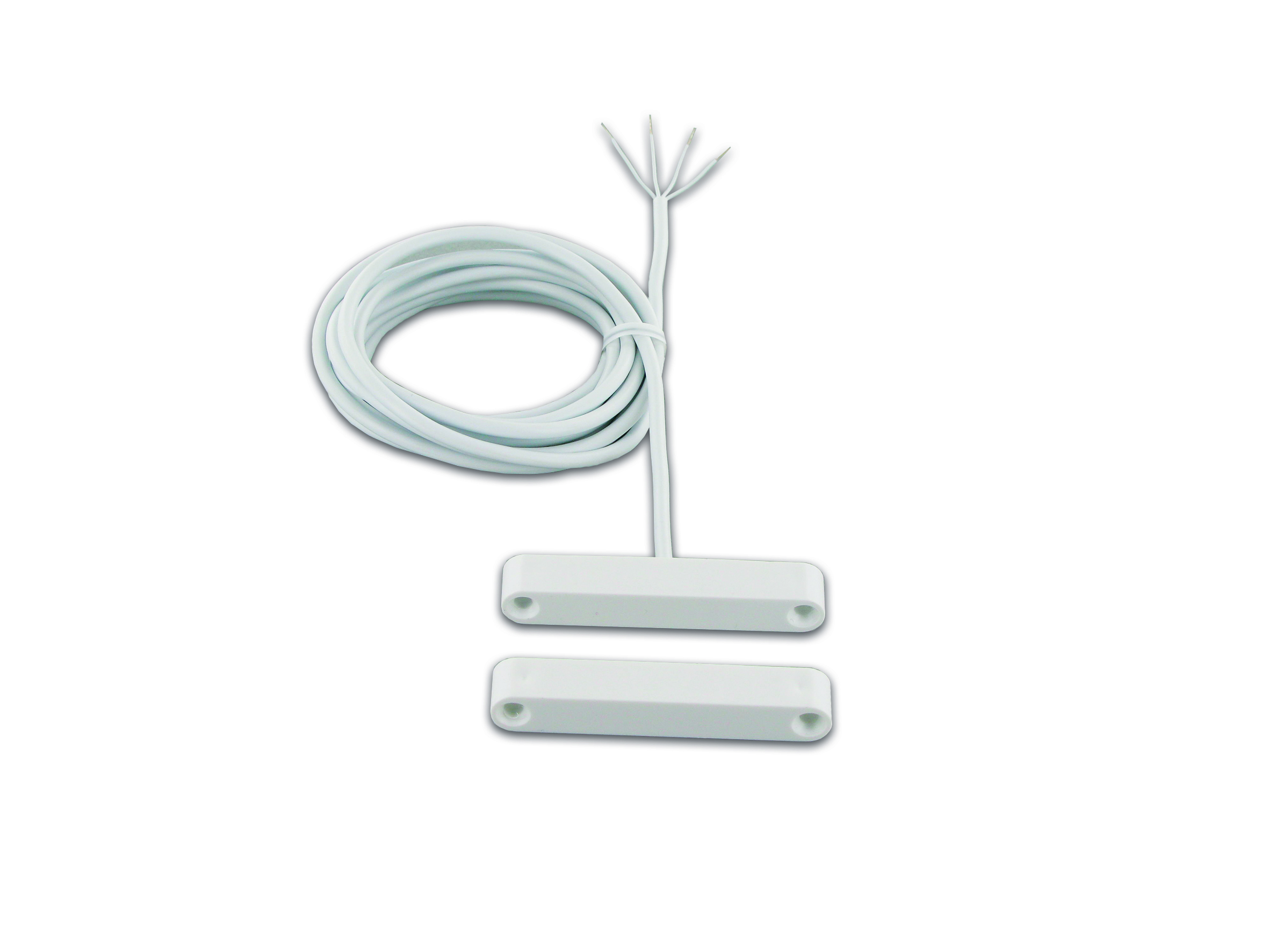

Recessed reed contact
6 m cable white
Product description
Suitable for flush mounting in aluminium or wood doors and windows in conjunction with installation casings.
| Max. contact load capacity | 6 W |
| Input operating voltage | max. 40 VDC |
| Max. switching current | max. 0.5 A; observe the max. contact load capacity! |
| Contact type | Normal open |
| Max. switching interval | 19 mm |
| VdS class | Class B |
| Class of protection | IP 67 |

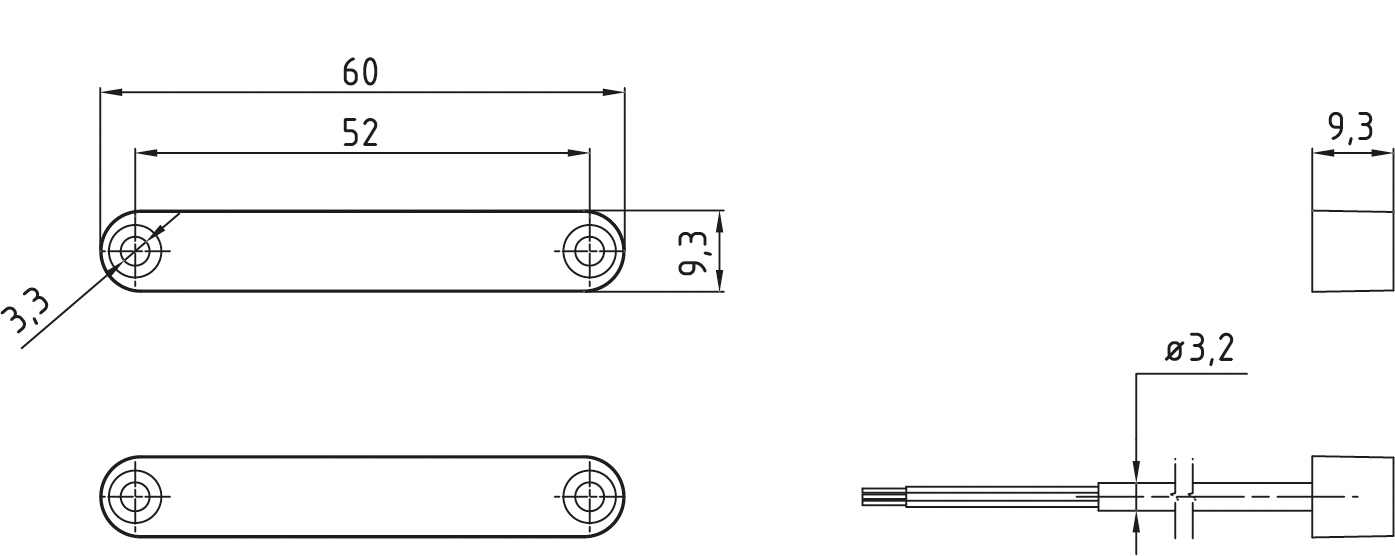

| Dimension | 60 x 9.3 x 9.3 mm |
| Connection cable length | 6 m |
| Number of wires | 4 wire |
| Colour | White |
| Material housing | Plastic |
| Operating temperature range | -40 °C to +70 °C |
