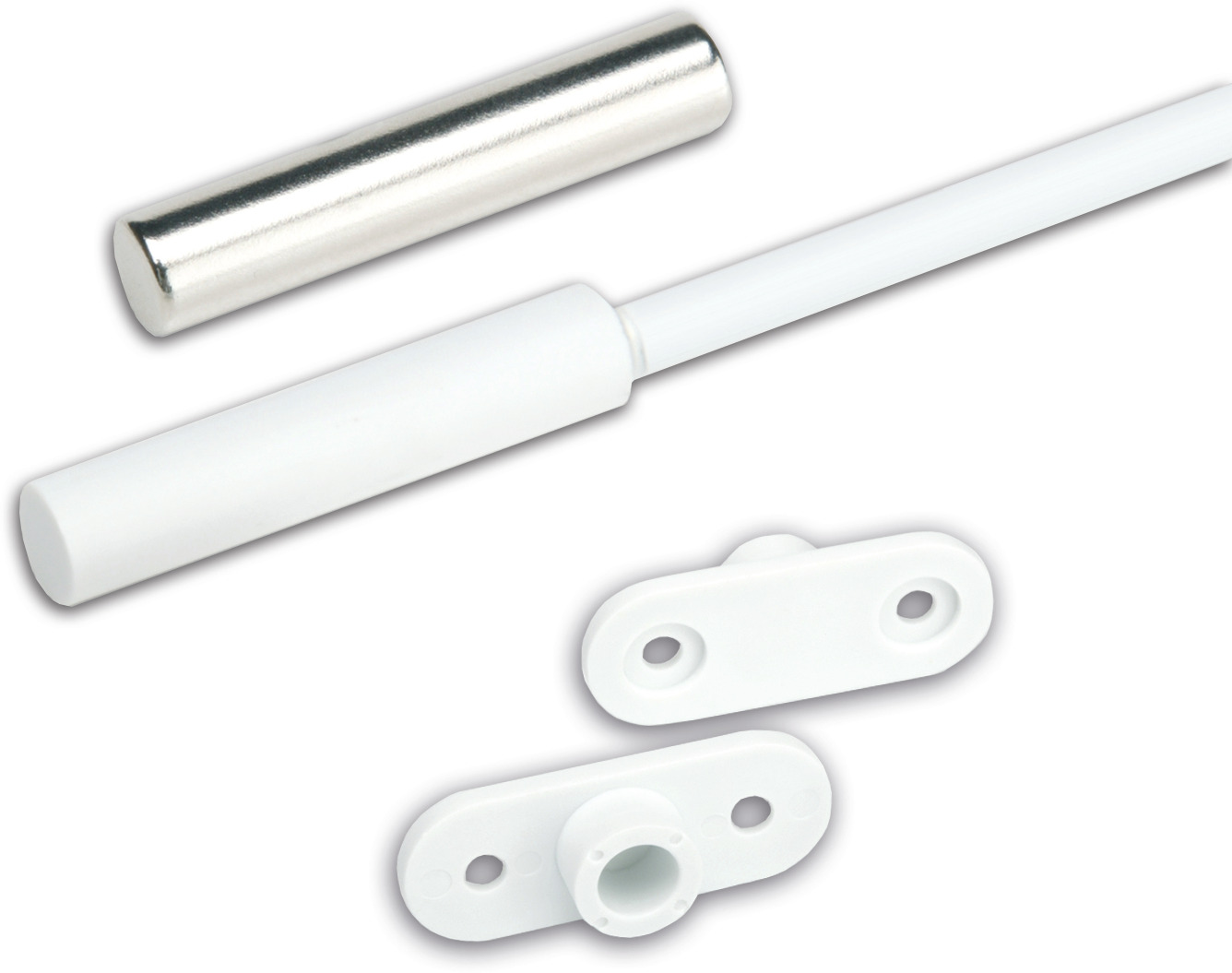

Round reed contact with flange
6 m cable white
Product description
Suitable for flush fitting in aluminium-wood doors and windows
| Max. contact load capacity | 10 W |
| Input operating voltage | max. 60 VDC |
| Max. switching current | max. 0.5 A; observe the max. contact load capacity! |
| Contact type | Normal open |
| Max. sensing distance | side: 24 mm / front: 18 mm |
| Class of protection | IP 67 |

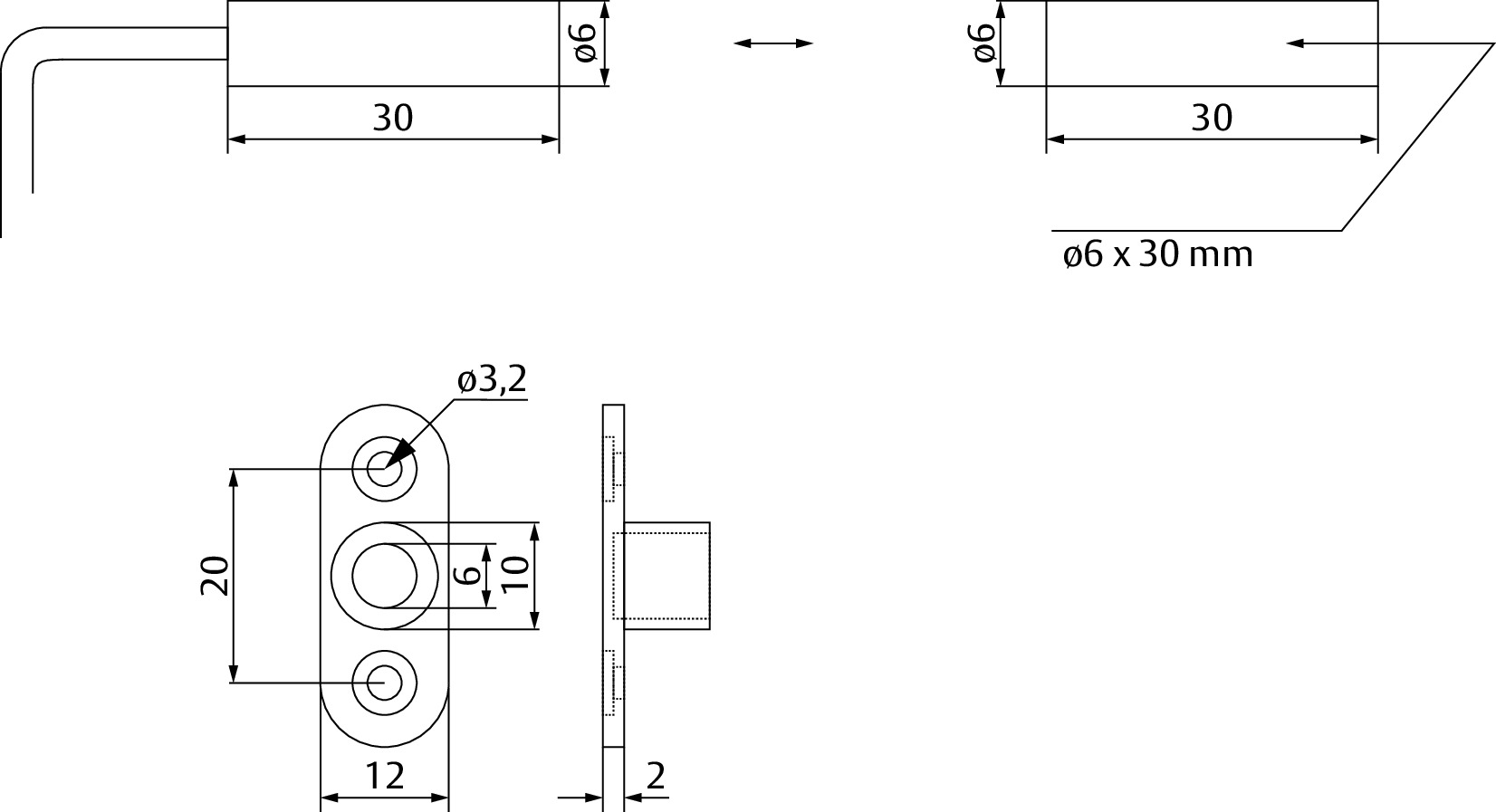

| Dimension | ∅ 6 x 30 mm |
| Connection cable length | 6 m |
| Number of wires | 2 wire |
| Colour | White |
| Material housing | Plastic |
| Operating temperature range | -5 °C to +50 °C |
