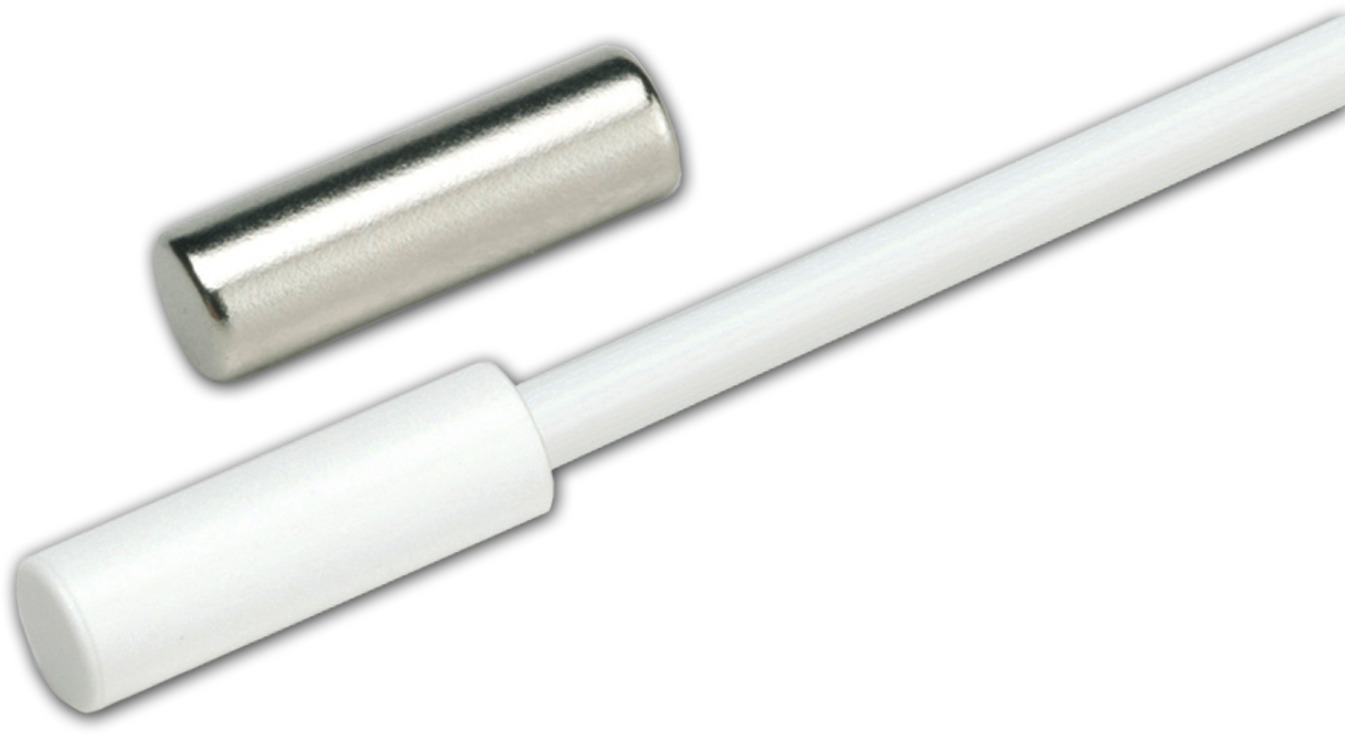

Round reed contact
VDS class B, 6 m cable white
Product description
Suitable for mortise fitting in aluminium or wood doors and windows.
| Max. contact load capacity | 10 W |
| Input operating voltage | max. 60 VDC |
| Max. switching current | max. 0.5 A; observe the max. contact load capacity! |
| Contact type | Normal open |
| Max. switching interval | 14 mm |
| VdS class | Class B |
| Class of protection | IP 67 |

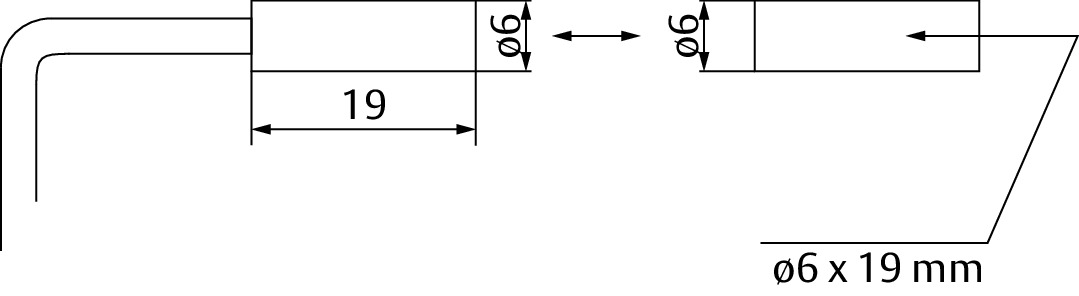

| Dimension | ∅ 6 x 19 mm |
| Connection cable length | 6 m |
| Number of wires | 4 wire |
| Colour | White |
| Material housing | Plastic |
| Operating temperature range | -5 °C to +50 °C |
