Universal Reed contact
VDS class B, 6 m cable white
Product description

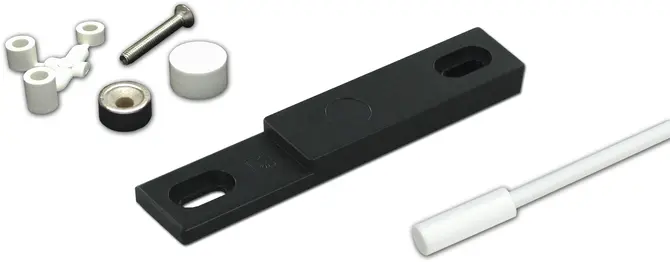

Reed contact and magnet unit for monitoring when door or window is opened, with fitting concealed in the door or window rebate.
Overview of Advantages
- Reed contact and magnet unit for monitoring opening of doors and windows.
- Universal, can also be retrofitted due to flat design
| Max. contact load capacity | 10 W |
| Input operating voltage | max. 60 VDC |
| Operating temperature range | -5 °C to +50 °C |
| Max. switching current | max. 0.5 A; observe the max. contact load capacity! |
| Contact type | Normal open |
| Max. sensing distance | 14 mm |
| VdS class | Class B |
| Class of protection | IP 67 |

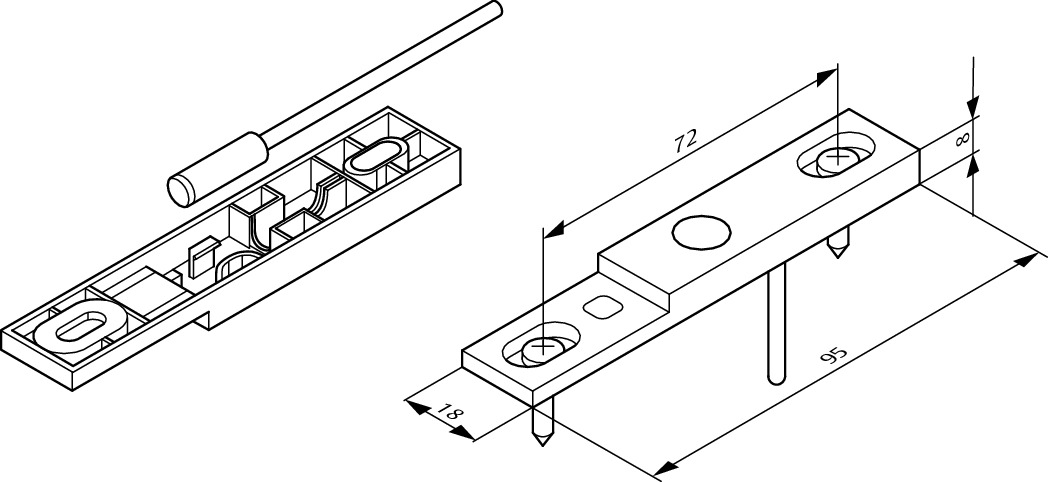

| Dimension | 95 x 18 x 8 |
| Connection cable length | 6 m |
| Number of wires | 4 wire |
| Colour | White |
| Material housing | Plastic |
