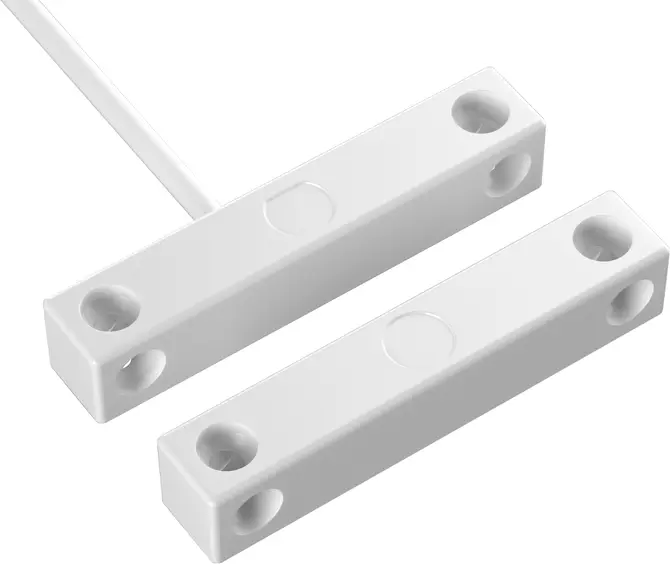

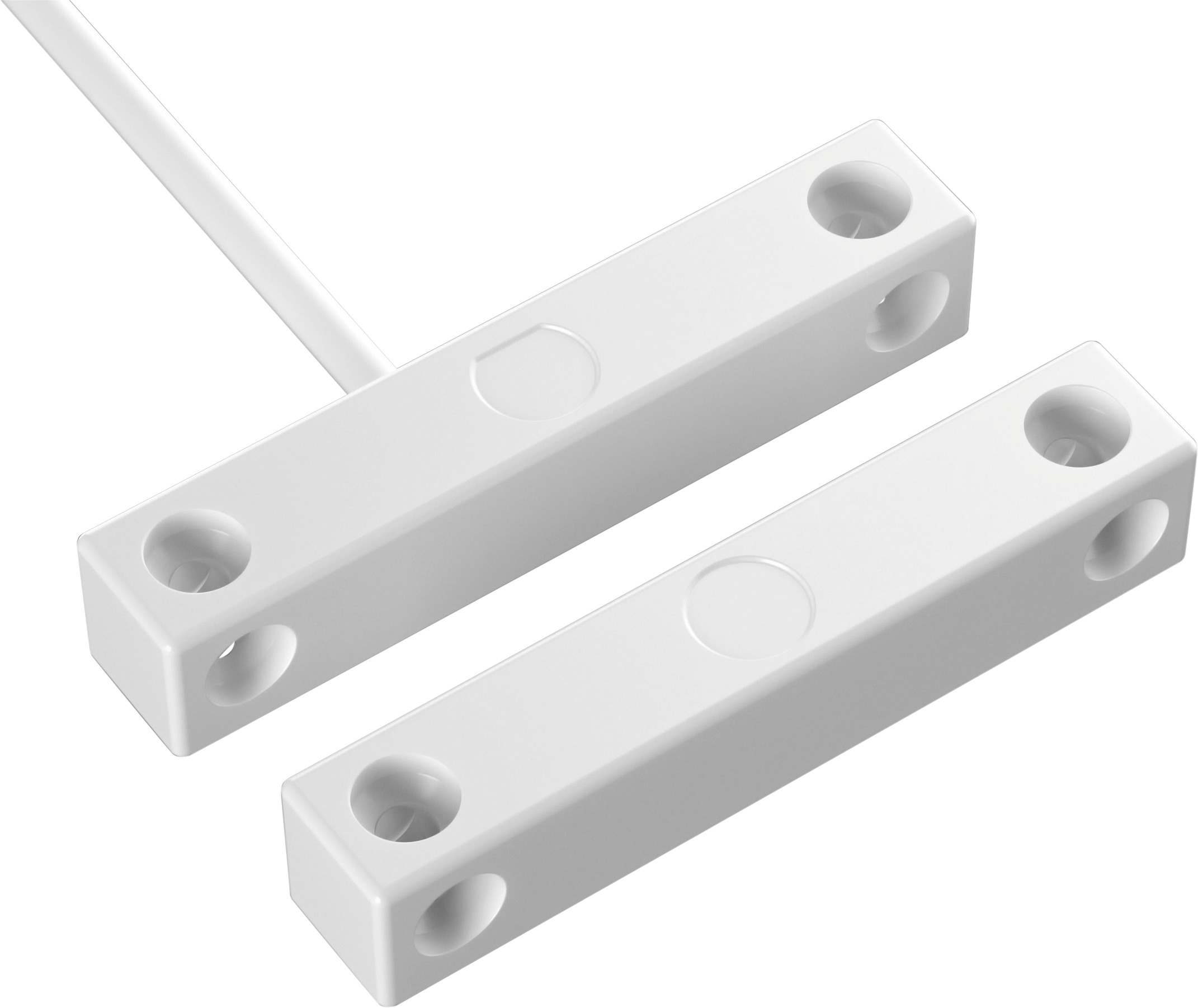

External field monitored surface-mounted magnet contact
Product description
Suitable for surface mounting on doors and windows for differential lines, tamper-proof, for parallel installation. 5 height adjustment plates are included in the scope of delivery.
Prohibited area/tampering area: see mounting instruction
Opening monitoring
EN 50131-2-6 Grade 3, VdS tested
| Max. contact load capacity | 10 W |
| Input operating voltage | max. 60 VDC |
| Max. switching current | max. 0.5 A; observe the max. contact load capacity! |
| Contact type | Normal open |
| VdS class | Class C |
| Class of protection | IP 67 |
| Dimension | 10 x 10 x 55 mm |
| Connection cable length | 6 m |
| Number of wires | 4 wire |
| Colour | White |
| Material housing | Plastic |
| Operating temperature range | - 40 °C to + 70 °C |
| Order number | Description |
|---|---|
| 10260G-6-----10 | Switching distance 23 mm +/- 3 mm |
| 10260K-6-----10 | Switching distance 14 mm +/- 3 mm |
