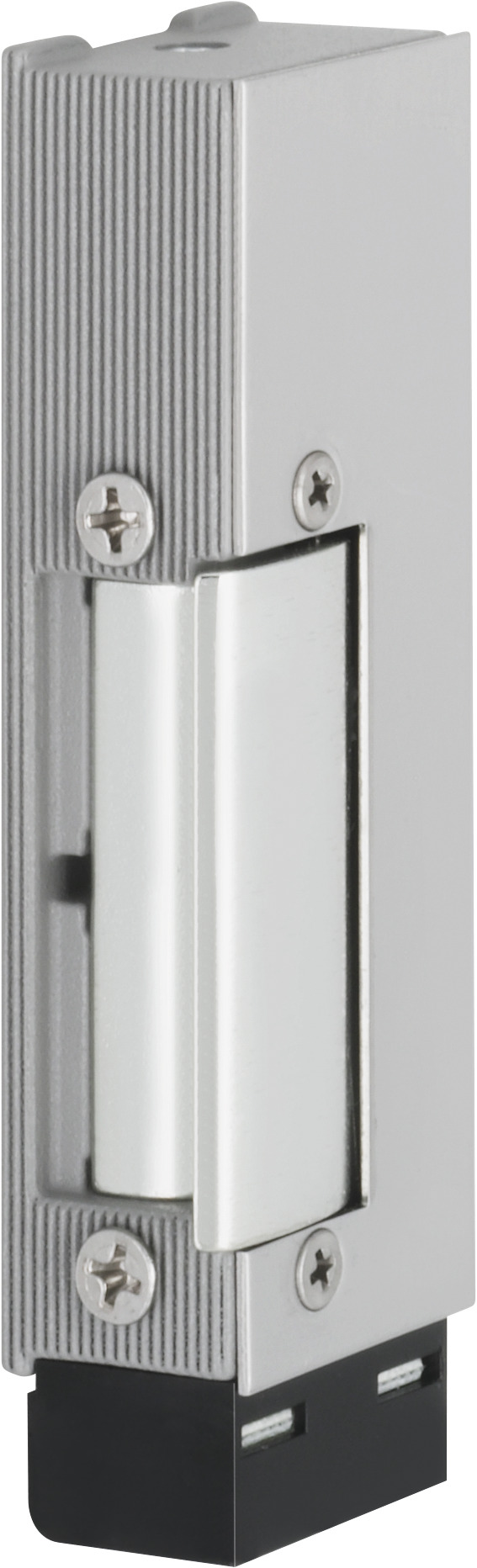

Electric strike 342UF

Note

  • Can only be used as a supplementary locking device on fire doors
  • Not an authorised locking system for doors along escape and rescue routes
Technical data
Adjustable electric strike (F, Fix®)Yes
Fail-unlockedYes
TVS diodeYes
Break-in resistance10000 N
Operating temperature range-15 °C to +40 °C
Material housingSteel precision-casting
Variants that can be ordered
Order number
Description
342UF-------Q94Without faceplate, 12-24 V DC, DIN left
342UF-------Q95Without faceplate, 12-24 V DC, DIN right
