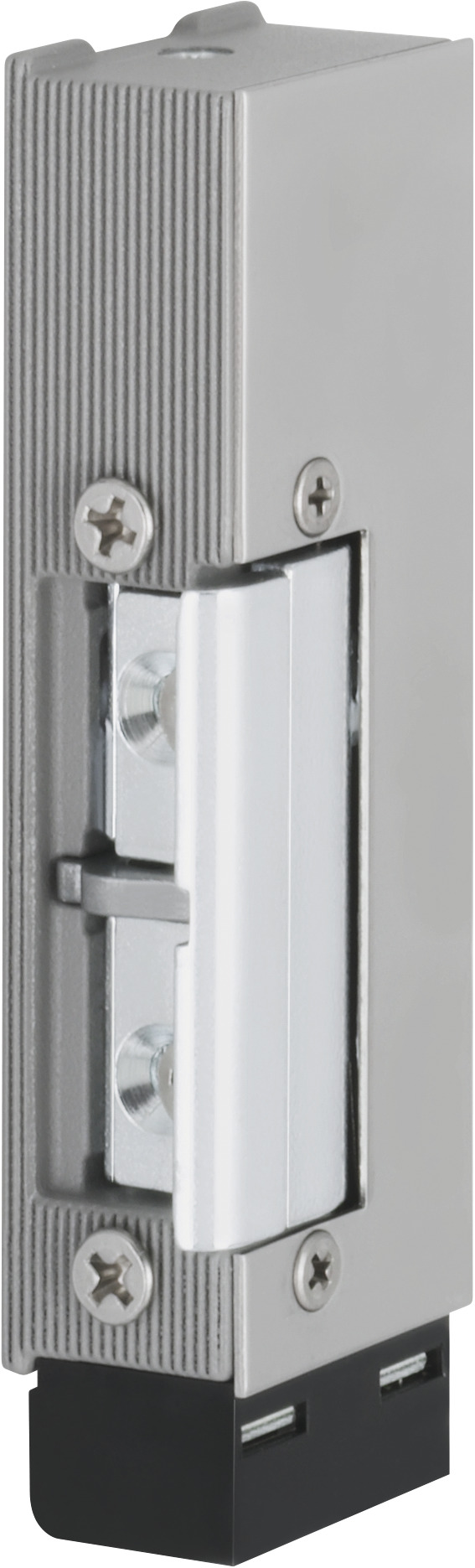

Electric strike 342UR
Product description
Model with monitoring contact as potential-free changeover contact. This is actuated by the latch bolt via a lever.
Overview of Advantages
- Monitoring contact (RR)
- Can switch between 12 and 24 V
- Integrated surpressor diode
- FaFix® and Fix combined
Note
- Can only be used as a supplementary locking device on fire doors
- Not an authorised locking system for doors along escape and rescue routes
| Adjustable keeper (FF, FaFix®) | Yes |
| Adjustable electric strike (F, Fix®) | Yes |
| Monitoring contact (RR) | Yes |
| Fail-unlocked | Yes |
| TVS diode | Yes |
| Break-in resistance | 6500 N |
| Height | 103 mm |
| Width | 28.5 mm |
| Depth | 21 mm |
| Operating temperature range | -15 °C to +40 °C |
| Installation position | Vertical and horizontal |
| Order number | Description |
|---|---|
| 342UR-------Q94 | Without faceplate, 12-24 V DC, DIN left |
| 342UR-------Q95 | Without faceplate, 12-24 V DC, DIN right |
