SCALA reader BEHNKE design 435
Product description

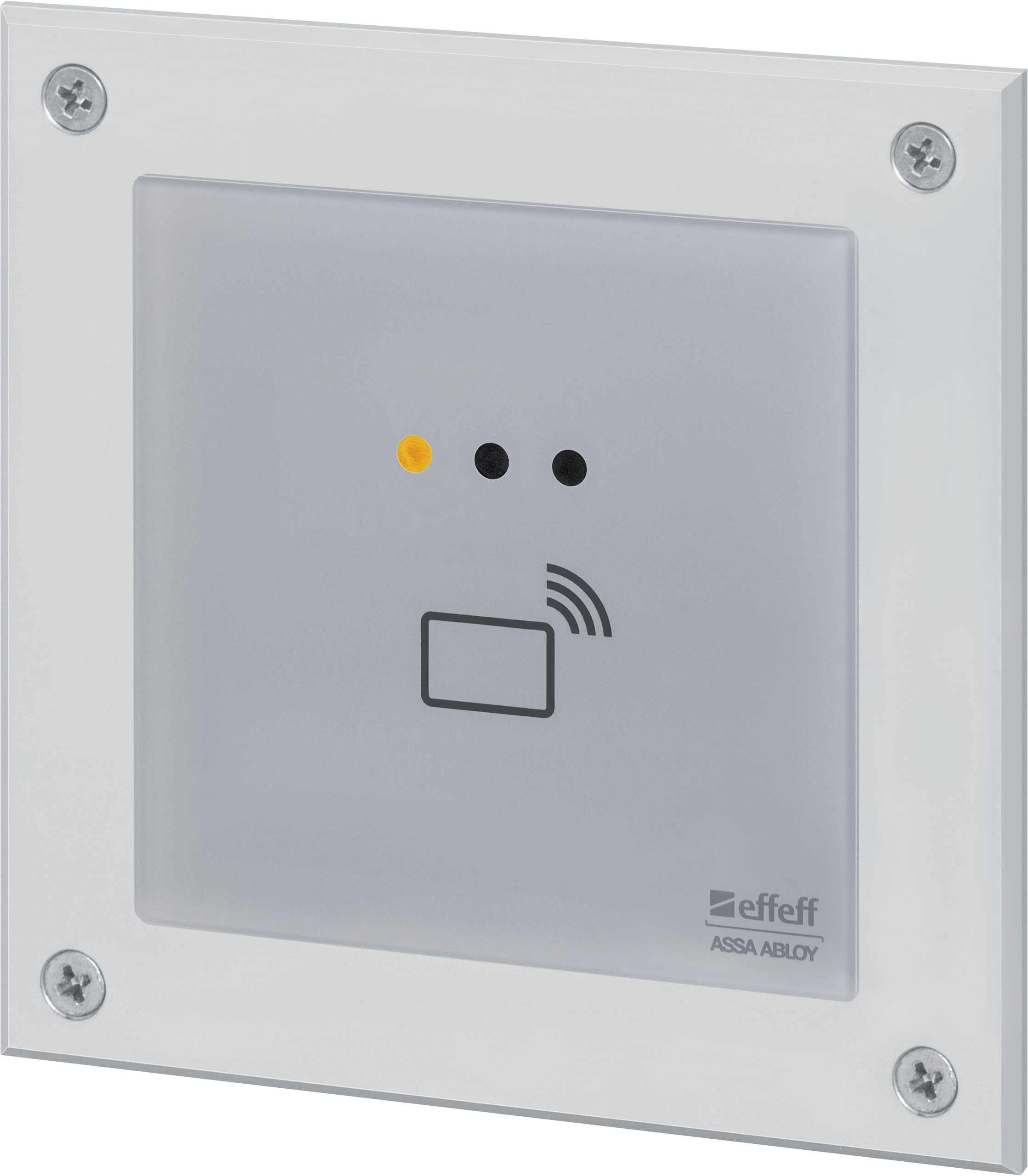

The SCALA reader in BEHNKE design is a write/reader unit, which can be used in combination with the SCALA EAC system. The reader is used for contactless identification in SCALA.
The BEHNKE identification card reader can be installed directly in BEHNKE intercom systems. The reader uses a module space. It is suitable for indoor and outdoor installation.
Operation is extremely easy thanks to the clear signals. The display takes place both visually via LEDs and acoustically. The user therefore sees instantly whether access is being granted or whether new user rights are being written on the identification card.
Flexible and secure
The SCALA reader in BEHNKE design can be easily integrated in existing BEHNKE intercom systems.
The data of the transponder is converted 1:1 analogue/digital and sent to the SCALA controller. The security of the encryption is identical to the security of the air interface between the user identification card and reader.
All safety-relevant processes do not take place in the reader, but are controlled in the controller. This rules out tampering between the identification card, reader and controller based on the current state-of-the-art technology – such as tapping the encryption or replacing the reader with a compromised unit. The SCALA readers have integrated temperature and voltage sensors as standard, which permanently measure the temperature and input voltage of the readers. This can help to prevent faults.
Extended diagnostic possibilities and LED display
The SCALA reader has integrated temperature and voltage sensors as standard, which permanently measure the temperature and input voltage of the reader. This can help to prevent faults.
The available operating states are displayed via a yellow, a dual colour (red/green) and a RGB-LED. The transmission quality between the user identification card and the reader is displayed via the RS485 bus with a communication LED.
Simple installation and commissioning
The communication between SCALA reader and controller takes place via a RS485 interface. Both the communication and the voltage supply takes place via the 4-wire cable.
The wiring of the reader takes place intuitively and is particularly easy.
The reader is mounted in the BEHNKE element in the usual way during installation.
Versatile functions
- Permanent open/permanent locking
- Authorisation via identification card
Overview of Advantages
- Suitable for BEHNKE intercom systems
- Integrated buzzer
- 3 multi-coloured LEDs
- RS485 interface (SCALA protocol)
- Integrated temperature monitoring (evaluation in SCALA net)
- Integrated voltage monitoring (evaluation in SCALA net)
- Integrated read/write mode (can be set via the SCALA software)
- Integrated encryption mode
- Encrypted data transmission from the identification card to the door control
Note
- Frame not included in the scope of supply
| Input operating voltage | 12-24 V DC +/- 15 %, 0.8 W |
| Max. start current consumption at 12 V DC | 0.07 A |
| Authentication | Identity card |
| Approvals | CE |
| Dimension | 1 module space suitable for door station 20 and 30 |
| Colour | Grey |
| Class of protection | IP54 |
| Operating temperature range | -25 °C to +70 °C |
| Relative humidity | < 95% (non-condensing) |
| Door status | 1 x single-color LED, 1 x dual-color LED, 1 x RGB LED |
| RFID Technologies (Based on reader type) | MIFARE® Classic® / MIFARE® DESFire® EV1/EV3; LEGIC® (Advant, Prime, ISO 14443a ) only RFID versions |
| RFID reading | UID / Sektor / Block / Application / File / LEGIC® Segment Data |
| RFID Reading range | approx. 2-4 cm identification card; approx. 2 cm key tag |
| Communication interfaces | RS485 interface for connection to the controller (automatic baudrate recognition) SCALA protocol. |
| Order number | Description |
|---|---|
| 435-4212B--MD00 | |
| 435-4212B--LG00 | LEGIC® |
