SCALA reader, SIEDLE design PIN MIFARE® DESFire®
Dark grey
Product description

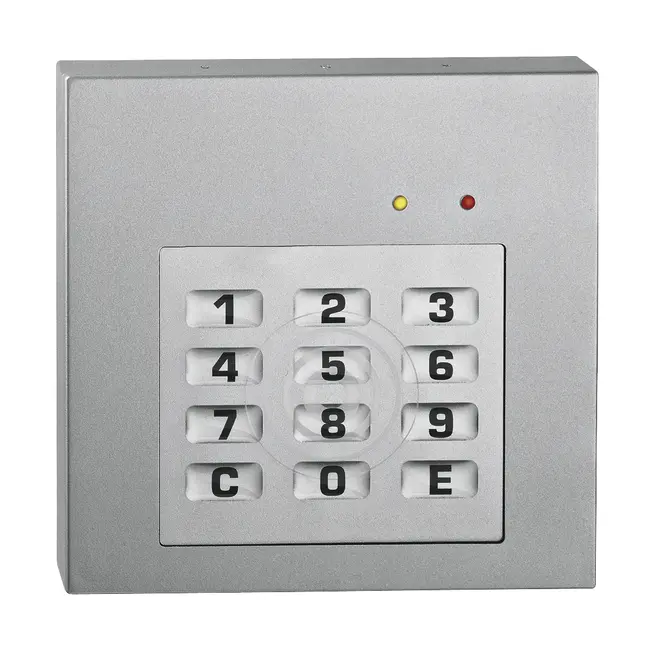

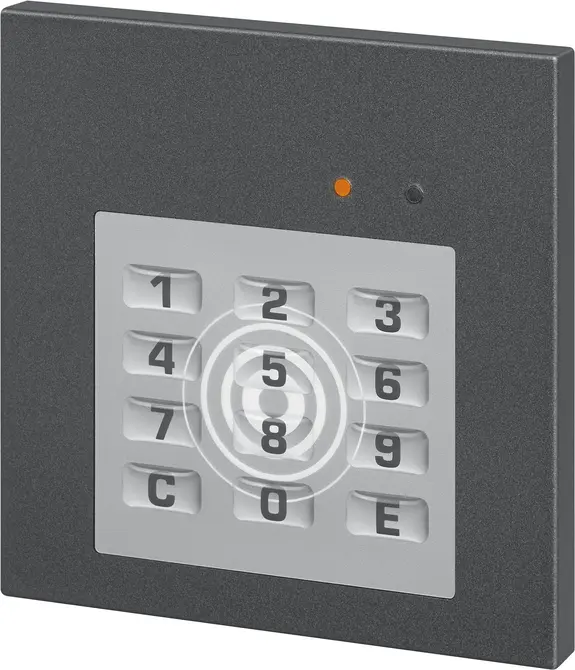

The identification card reader with PIN keypad for SIEDLE modules can be installed directly in SIEDLE speaker systems. The reader requires one module position. It is suitable for use in indoor and outdoor installations.
The reader has a PIN keypad, a display with two LED Fields and a Piezo buzzer.
The readers are also available in different colours. That way, the reader is ideally adapted to existing SIEDLE solutions.
Flexible and secure
The SCALA reader in Siedle design is available in the standard colour versions. This means that it can be integrated optimally in existing Siedle intercom systems.
The data transmission takes place securely via the PHG-Crypt protocol.
All safety-relevant processes do not take place in the reader, but are controlled in the controller. This rules out tampering between the identification card, reader and controller based on the current state-of-the-art technology – such as tapping the encryption or replacing the reader with a compromised unit. The SCALA readers have integrated temperature and voltage sensors as standard, which permanently measure the temperature and input voltage of the readers. This can help to prevent faults.
LED display
The available operating states are displayed via two LEDs and a Piezzo buzzer.
Simple installation and commissioning
The communication between SCALA reader and controller takes place via a RS485 interface. Both the communication and the voltage supply takes place via the 4-wire cable.
The reader is engaged in the Siedle element in the usual way during installation.
Versatile functions
- Permanent open/permanent locking
- Authorisation via identification card, identification card and PIN and PIN only
- For authorisation via identification card and PIN, the sequence with which the user authentication takes place can be set in the software (SCALA net): First the identification card, then the PIN, or the PIN followed by the identification card
- Door code (SCALA PIN reader)
- Threat code (SCALA PIN reader)
Overview of Advantages
- Available in the three conventional colour versions
- Integrated buzzer
- 2 multi-coloured LEDs
- RS485 interface (PHG crypt protocol)
- Integrated read/write mode (can be set via the SCALA software)
- Integrated encryption mode
- Encrypted data transmission from the identification card to the door control
Note
- *additional colours available on request
- Frame not included in the scope of supply
| Input operating voltage | 8 to 30 V DC |
| Total power consumption | max. 2.5 VA |
| Authentication | PIN & identification card combined |
| Code | PIN code: 4- to 8-digit code can be set in the software |
| Approvals | CE |
| Dimension | 1 module space |
| Class of protection | IP 54 |
| Operating temperature range | -25 °C to +70 °C |
| Relative humidity | < 95% (non-condensing) |
| Door status | 3 LEDs; 1 Piezzo buzzer |
| RFID Technologies (Based on reader type) | MIFARE® Classic® / MIFARE® DESFire® EV1/EV3 |
| RFID reading | UID / Sektor / Block / Application / File |
| RFID Reading range | 1 – 4 cm (depending on the ambient conditions, identification card type and RFID technology) |
| Communication interfaces | RS485 interface for connection to the controller. PHG crypt protocol. |
| Installation | Compatible with SIEDLE vario model |
| Address setting | via DIP switch; switchable bus terminating resistance (likewise via DIP switch) |
| signalisation | 2 LED arrays: red-green (bi-colour), yellow (one LED per array); 1 Piezo buzzer |
| Mounting | With added PIN keypad |
| Signal elements | 2 LED arrays; 1 piezo buzzer |
| Power consumption in stand-by-mode | 1.2 VA |
| Max. power consumption | 3.1 VA |
| Colour | glittery, dark grey |
