SCALA reader with PIN, MIFARE® DESFire®
For switch ranges in indoor installation
Product description

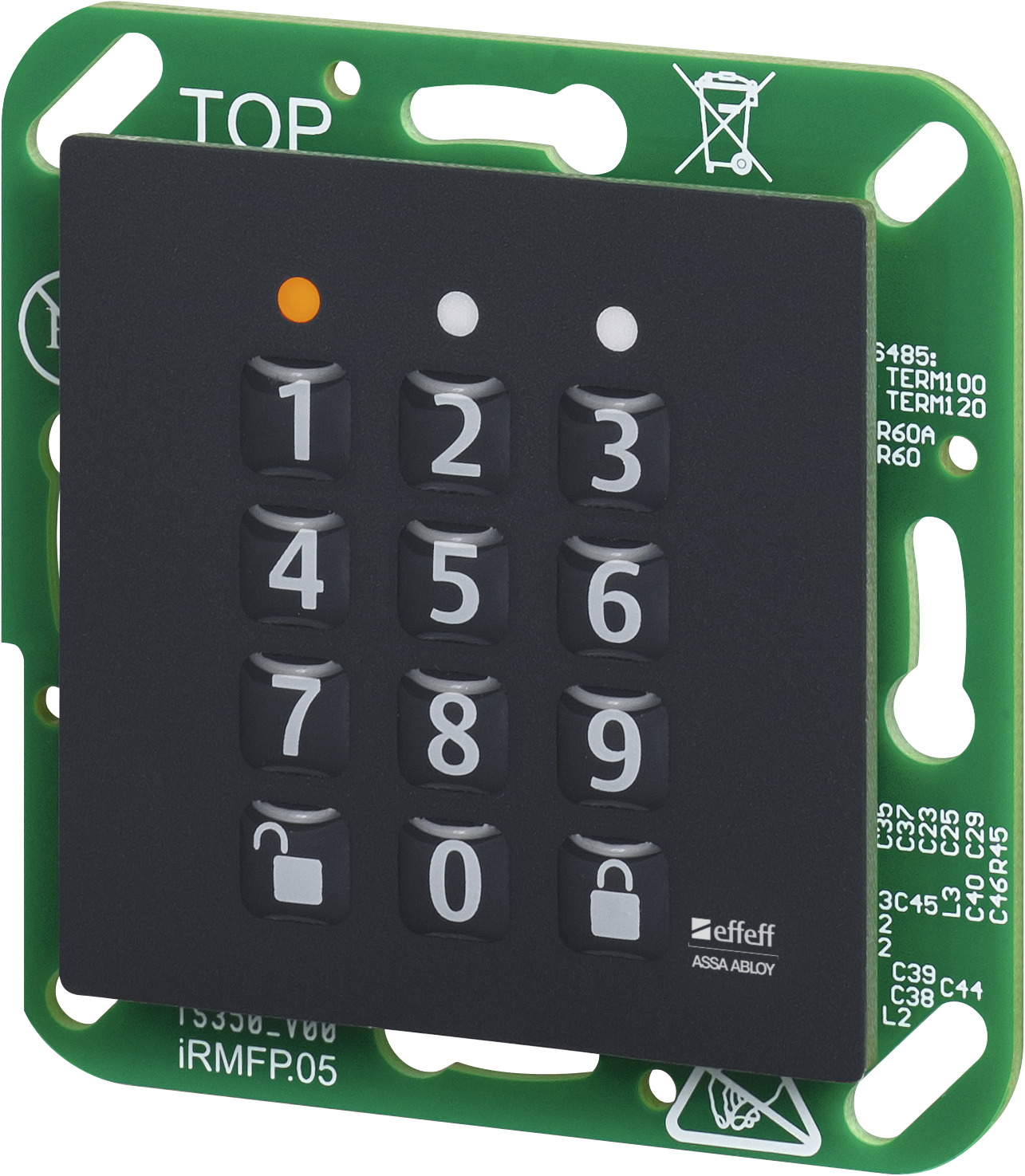

The SCALA Jung readers are write/reader units, which can be used in combination with the SCALA EAC system. With the relevant reader covers, the reader fits seamlessly in the existing switch ranges.
Operation is extremely easy thanks to the clear signals. The display takes place both visually via LEDs and acoustically. The user therefore sees instantly whether access is being granted or whether new user rights are being written on the identification card.

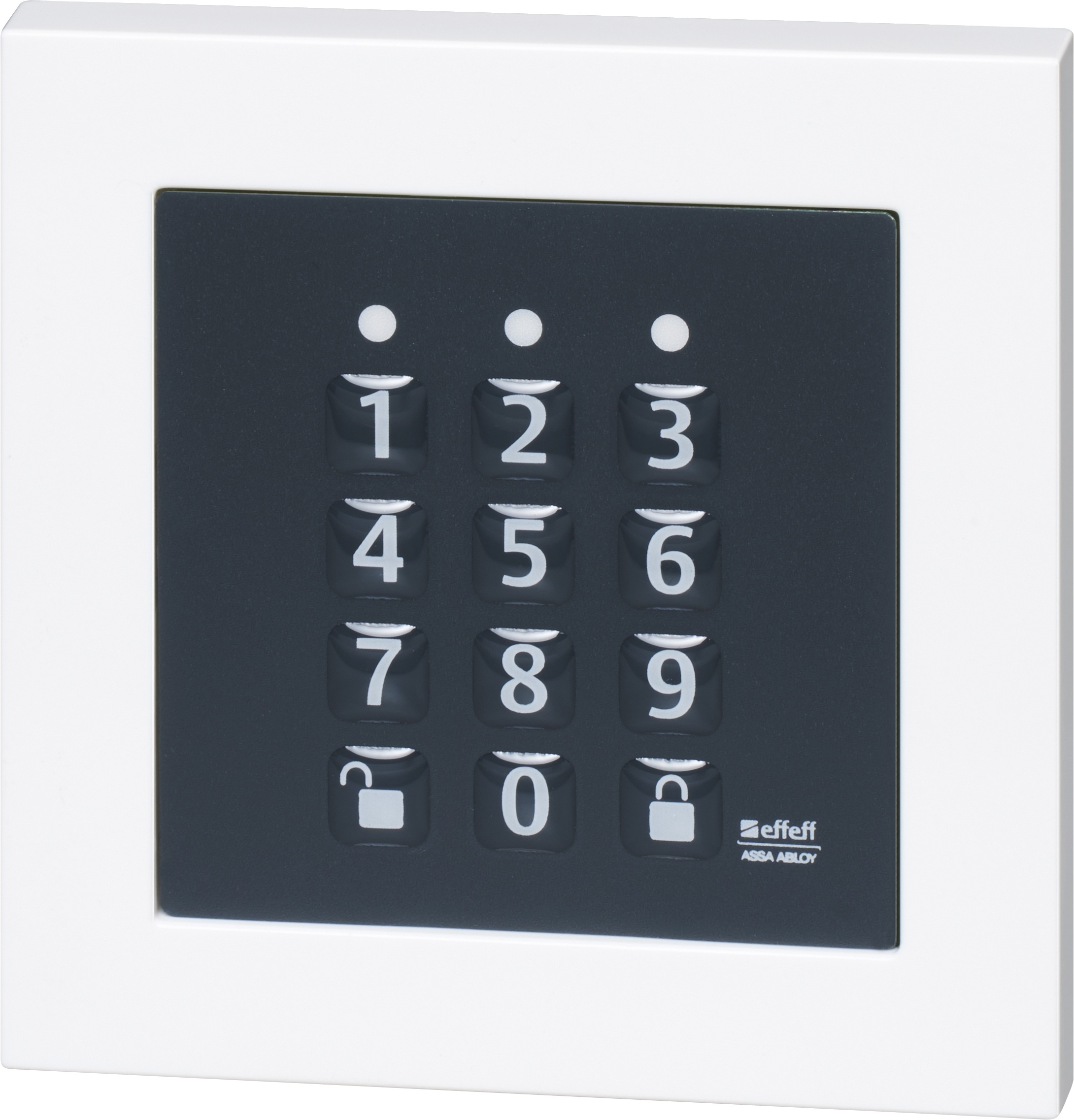

The SCALA Jung readers are available in the two conventional switch ranges and can thus be optimally integrated in existing switch programmes.
The data of the transponder is converted 1:1 analogue/digital and sent to the SCALA controller. The security of the encryption is identical to the security of the air interface between the user identification card and reader.
All safety-relevant processes do not take place in the reader, but are controlled in the controller. This rules out tampering between the identification card, reader and controller based on the current state-of-the-art technology – such as tapping the encryption or replacing the reader with a compromised unit. The SCALA readers have integrated temperature and voltage sensors as standard, which permanently measure the temperature and input voltage of the readers. This can help to prevent faults.
The SCALA readers have integrated temperature and voltage sensors as standard, which permanently measure the temperature and input voltage of the readers. This can help to prevent faults.
The available operating states are displayed via a yellow, a dual colour (red/green) and a RGB-LED. The transmission quality between the user identification card and the reader is displayed via the RS485 bus with a communication LED.
The communication between SCALA reader and controller takes place via a RS485 interface. The communication and the voltage supply takes place via the 4-wire cable.
The wiring of the reader takes place intuitively and is particularly easy.
The SCALA reader can be mounted on any standard flush-mounted box. The reader can also be surface-mounted using the mounting frame.
Flexible and secure
The SCALA Jung readers are available in the two conventional switch ranges and can thus be optimally integrated in existing switch programmes.
The data of the transponder is converted 1:1 analogue/digital and sent to the SCALA controller. The security of the encryption is identical to the security of the air interface between the user identification card and reader.
All safety-relevant processes do not take place in the reader, but are controlled in the controller. This rules out tampering between the identification card, reader and controller based on the current state-of-the-art technology – such as tapping the encryption or replacing the reader with a compromised unit. The SCALA readers have integrated temperature and voltage sensors as standard, which permanently measure the temperature and input voltage of the readers. This can help to prevent faults.
Extended diagnostic possibilities and LED display
The SCALA readers have integrated temperature and voltage sensors as standard, which permanently measure the temperature and input voltage of the readers. This can help to prevent faults.
The available operating states are displayed via a yellow, a dual colour (red/green) and a RGB-LED. The transmission quality between the user identification card and the reader is displayed via the RS485 bus with a communication LED.
Simple installation and commissioning
The communication between SCALA reader and controller takes place via a RS485 interface. The communication and the voltage supply takes place via the 4-wire cable.
The wiring of the reader takes place intuitively and is particularly easy.
The SCALA reader can be mounted on any standard flush-mounted box. The reader can also be surface-mounted using the mounting frame.
Versatile functions
- Permanent open/permanent locking
- Authorisation via identification card, identification card and PIN and PIN only
- For authorisation via identification card and PIN, the sequence with which the user authentication takes place can be set in the software (SCALA net): First the identification card, then the PIN, or the PIN followed by the identification card
- Door code (SCALA PIN reader)
- Threat code (SCALA PIN reader)
- Alarm arming/disarming (SCALA PIN reader)
Overview of Advantages
- Permanent open/permanent locking
- Authorisation via identification card and PIN
- For authorisation via identification card and PIN, the sequence with which the user authentication takes place can be set in the software (SCALA net): First the identification card, then the PIN, or the PIN followed by the identification card
- Door code (SCALA PIN reader)
- Threat code (SCALA PIN reader)
- Alarm arming/disarming (SCALA PIN reader)
- Integrated buzzer
- 3 multi-coloured LEDs
- RS485 interface (SCALA protocol)
- Integrated temperature monitoring (evaluation in SCALA net)
- Integrated voltage monitoring (evaluation in SCALA net)
- Integrated read/write mode (can be set via the SCALA software)
- Integrated encryption mode
- Encrypted data transmission from the identification card to the door control
Note
- Frame not included in the scope of supply.
| Input operating voltage | 12 - 24 V DC +/- 15 %, 0,8 W |
| Max. start current consumption at 12 V DC | 0.07 A |
| Authentication | PIN & identification card combined |
| Code | PIN code: 4- to 8-digit code can be set in the software |
| Approvals | CE |
| Class of protection | Depending on the switch range |
| Operating temperature range | -25 °C to +70 °C |
| Door status | 1 x single-color LED, 1 x dual-color LED, 1 x RGB LED |
| RFID Technologies (Based on reader type) | MIFARE Classic® / MIFARE® DESFire® |
| RFID reading | UID / Sektor / Block / Application / File |
| RFID Reading range | approx. 2-4 cm identification card; approx. 2 cm key tag |
| Colour | Black |
| Relative humidity | 10 % to 95 % not condensing |
| Communication interfaces | 1 x RS485, automatic baud rate detection |
| Dimension | 55 x 55 x 16 mm, reader PCB: 70 x 70 x 16 mm (W x H x D) |
| Operating mode | Read and write mode |
| Ambient temperature | 0° C to 50° C with temperature monitoring |
| Switch range | Jung and Gira |
| Inputs | 1 x analog input for the keyboard |
