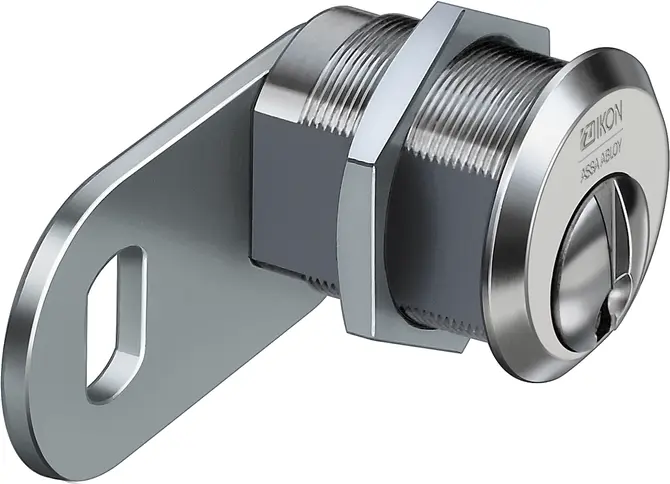

Universal locking lever cylinder - system SK6 Z211

23 mm diameter, laterally flattened to 17.6 mm

Overview of Advantages

  • If necessary, the locking direction can however be easily changed by changing the position of the stop screw.

Product description

  • 6 pin tumblers
  • Brass cylinder
  • Standard finish, matt chrome-plated (OF=MC)
  • Other surfaces: satin nickel-plated (OF=MV), brass, mat brushed (OF=MG), polished brass (OF=MP)
  • Blocking wave (SW=), additional lateral scanning and security card depending on profile (PR=)
  • Spherical cylinder core head with reinforced key guide
  • Core pins made of special wear-resistant bronze
  • Locking path and locking lever path 90º left or right
  • Key withdrawal when locking lever is closed
  • Fixing with housing nut M23 x 0.75
  • Standard locking lever (SLHB=1645009)

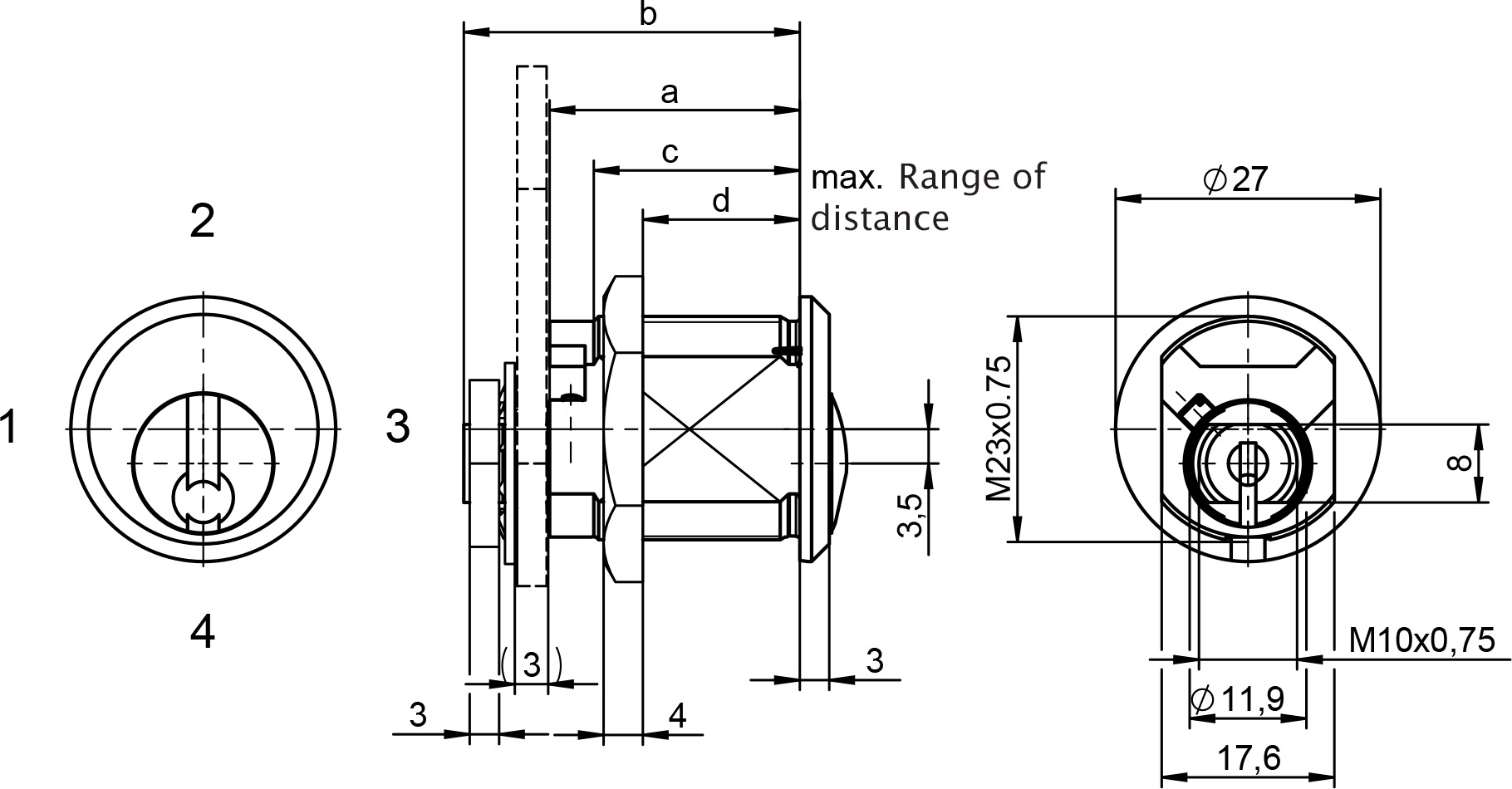

  • Lenght: L=29: a, b, c, d 29.5, 39.5, 25, 20 and optional L=25: a, b, c, d 25.5, 35.5, 21, 16
  • Key with square metal head
  • Available for individual lockings and locking systems
  • Protected key profile with security card

Scope of delivery

  • 1 locking lever cylinder
  • 2 nickel silver keys
  • 1 casing screw nut M23 x 0.75
  • 1 core nut, M10 x 0,75 x 3

Ordering Information

  • Please include the desired locking path (SST=) in your order.
  • Cylinder lenght L= is necessary in your order for measurements a,b,c,d with L=25 (25, 35, 21, 16) or L=29 (29, 39, 25, 20).
  • The actual lengths for a and b can deviate by +0.5 mm.
  • For article H211, locking levers that differ from the standard (SLHB=1645009) must be ordered separately using article 1905. Locking levers in the RW6 system are generally not pre-assembled.
System and Profile overview
SystemSK6
ArticlenumberZ211
Locking system (AA=)GHHKHZZZUE
Main profile group=PA=
ABLOY PROTEC²21
Reversible key profile RW624
Radii profile blocking wave29
VERSO®CLIQ40
eCLIQ41
CLIQ® Go41
Radii profile45
Radii profile extra46
SystemSK6
ArticlenumberZ211
Locking system (AA=)GHHKHZZZUE
Main profile group=PA=
Standard profile00
Special profile02
Blocking rib profile03
Blocking rib/Labyrinth profile04
Meander profile05
Meander rib profile06
Meander rib/Labyrinth profile07
Standard locking wave profile08
Special locking wave profile09
Angular profile10
Blocking wave undercut11
Angular profile / ZSE12
Angular profile / ZSV13
Multiprofile14
Vector profile 1st security level15
Vector profile 1st security level15
Vector profile 2nd security level16
Reversible key profile blocking wave18
Blocking wave undercut extra code19
Multiprofile plus22
Vector profile Rib25
Vector profile Rib Extra26
Arcus profile30
X profile32
ZR profile33
R profile34
SystemSK6
ArticlenumberZ211
Profile (PR=)PA=
Standard profile N3.50
Blocking cam angular ..RS (0RS- 16RS)52
Blocking rib 1RP2.53
Locking wave profile 2PE54
Blocking cam ..RN58
Blocking rib/Labyrinth 1RP5.59
Angular profile SP..60
Standard profile SN.62
Standard profile N1.63
Standard profile DR.64
Blocking cam angular ..RS (from 34RS)66
Blocking rib 1RP4.68
Blocking rib 1RP6.69
Standard profile N1P070
Blocking cam profile ...NP72
Standard profile N4.73
Standard profile SP3.74
Blocking rib 1RP3.75
Blocking rib Vector 1RP0476
Flat profile Vector FP0479
Reversible key profile RWS81
Reversible key profile blocking wave 2RWS82
