Locking cam radii profile ...NP
Retailer Profile

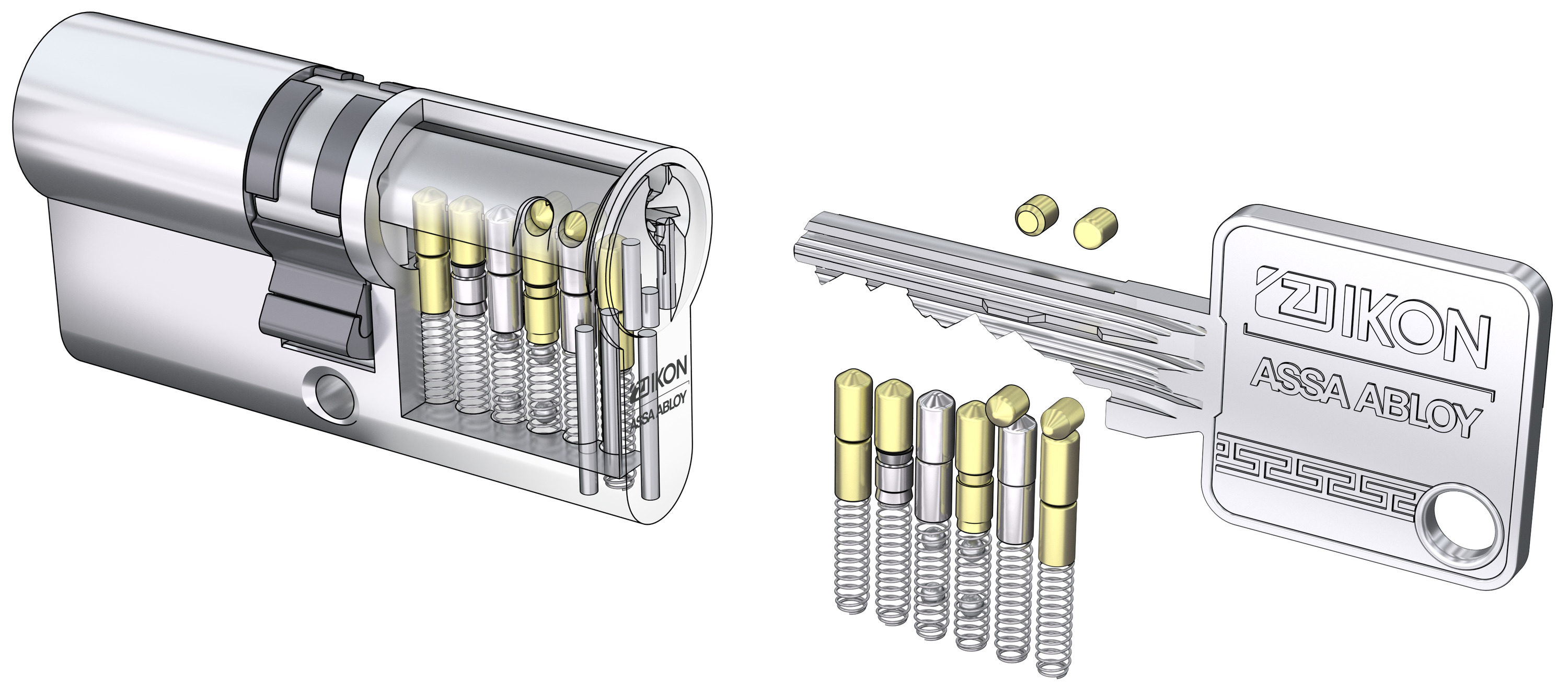

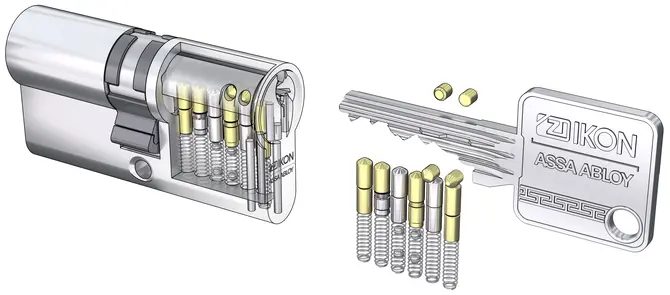

Premium IKON locking cam radii profile in system SK6 with 6 active spring-loaded pin tumblers. This profile is based on a long-term patent which has been developed especially to counteract current and established intrusion techniques, which it impedes to a very high degree. The ...NP Profile is a paracentric profile and meets the expectations according to DIN, VdS Home (certification requested). The so-called locking cams are located laterally on the key shaft on both sides. These blocking cams are scanned inside the cylinder by blocking cam pins resulting in a particularly high degree of protection against unauthorised opening, forced entry and lock picking, scanning security as well as increased key copy protection.
Overview of Advantages
- Long term patented
- Broad range of cylinder types
- Increased technical key copy protection
- Original of the IKON brand
Product description
- 6 (+4) spring-loaded pin tumblers = protection against unauthorised opening
- Paracentric Locking cam radii key profile = anti-lock-picking security
- Protected key profile with security card
- Certification and identification meeting VdS★ (Home) or optional VdS★★★ (B, BZ) only for factory-keyed cylinders
- Certification and marking in compliance with DIN 18252
- Standard with high drilling protection class 2 (AB=2) and optional drilling protection class 3 (AB=3)
- Can be unlocked on both sides (GE=BS) = Comfort function
- High level of protection against lock picking as a result of special profile design, combination of pins and additional locking rib detection
- Nickel silver key with metal head
- Key optionally with coloured plastic pin
- Key with individual customer stampings
- Optionally available as a modular system (GBK=J)
Note
- * Intrusion resistance classes 1 and 2 or A and B require no pulling protection if the cylinder is used with drilling protection in combination with ES2 ZA class security fitting with pulling protection
Pin tumblers | 6 (+4) |
Cam | Nickel silver, multiple parts |
Drilling protection (AB=) | 2 |
Key head (RD=) | Square |
System (SYS=) | SK6 |
VdS class | VdS★ (Home) |
Profile design (PA=) | 91 |
Profile | Retailer Profile |
Profile (PR=) | Locking cam radii profile ...NP |
Comfort function (GE=) | BS |
Modular housing system (GBK=) | Optional |
Security card | Yes |
