Triangular profile DP06
Factory-keyed profile

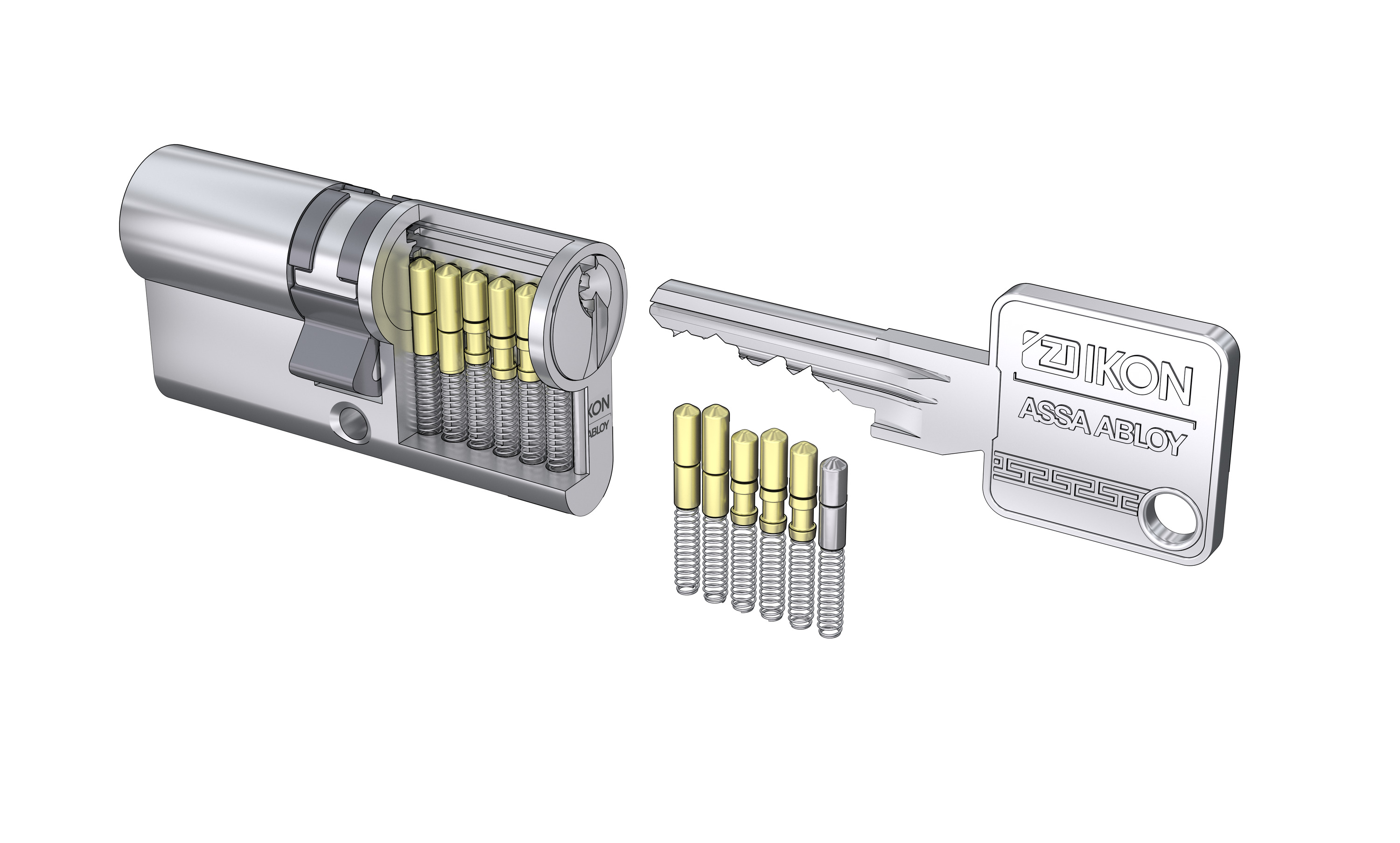

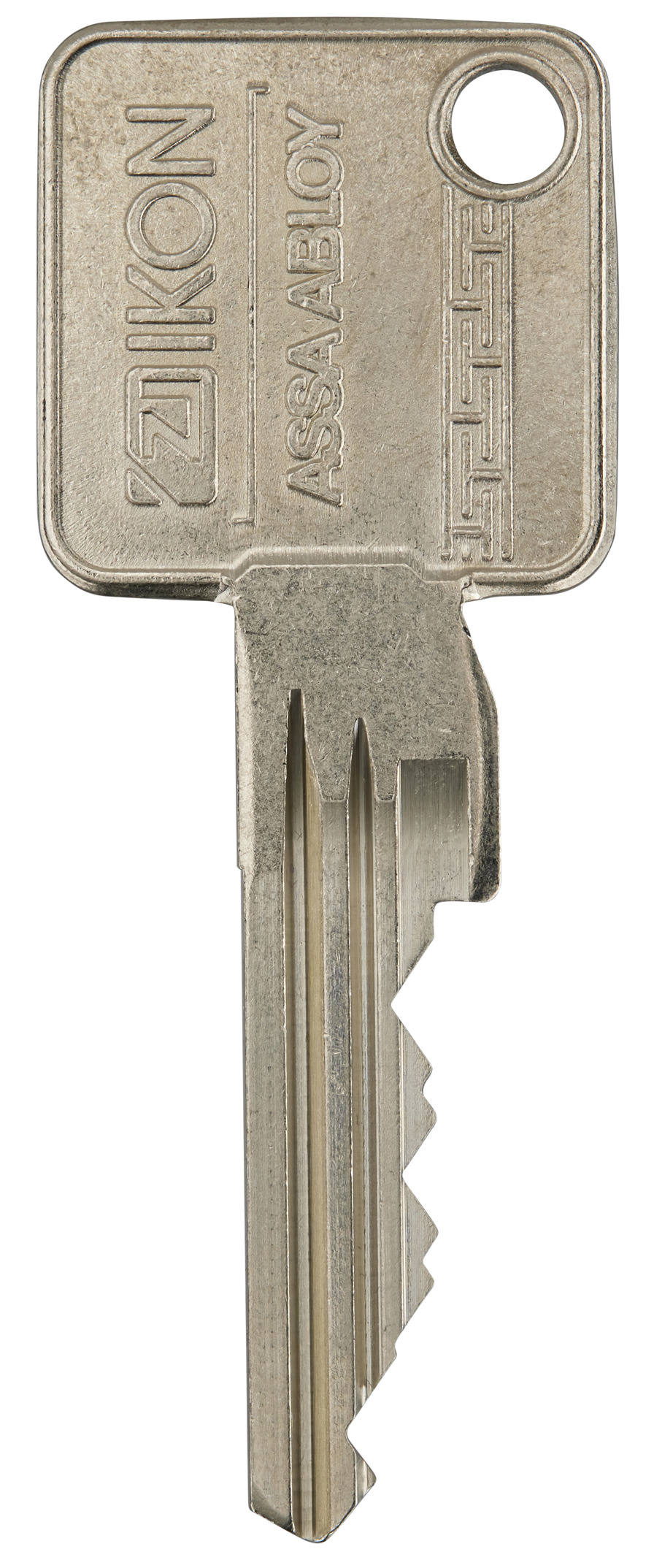

Premium IKON patented and paracentric triangular profile in system SK6 with 6 active spring-loaded pin tumblers according to DIN EN 1303 and DIN 18252. This profile is based on a long-term patent, which has been developed especially to counteract current and established illegal key-copying techniques, which it impedes to a very high degree. On the key shaft there are triangular profile grooves located on both sides which, due to their special arrangement in the area of the notches of the key, offer not only legal but also increased technical key copying protection.
Overview of Advantages
- Long-term patent
- Proven IKON special class SK6
- Broad range of cylinder types
- Increased technical key copy protection
Product description
- 6 spring-loaded pin tumblers = protection against unauthorised opening
- Paracentric key profile = unlocking security
- Protected key profile with security card
- Standard with drilling protection due to hardened steel pin in the housing and first pair of steel pins
- Optionally available with anti drilling protection class 2 (AB=2)
- Optionally with comfort function for bilateral opening (GE=BS)
- High level of protection against lock picking as a result of special profile design and combination of pins
- High-quality and stable nickel silver key with square metal chisel
- 13 mm extended key for all common security fittings and escutcheon
- High protection against the core extraction as standard due to the clawed lock bit made of sturdy nickel silver
System (SYS=) | SK6 |
Profile design (PA=) | 92 |
Profile (PR=) | Triangular profile DP06 |
Pin tumblers | 6 |
Cam | Nickel silver, multiple parts |
Drilling protection (AB=) | Optional 2 |
Key head (RD=) | Square |
Profile | Factory-keyed profile |
Comfort function (GE=) | Optional BS |
Security card | Yes |
