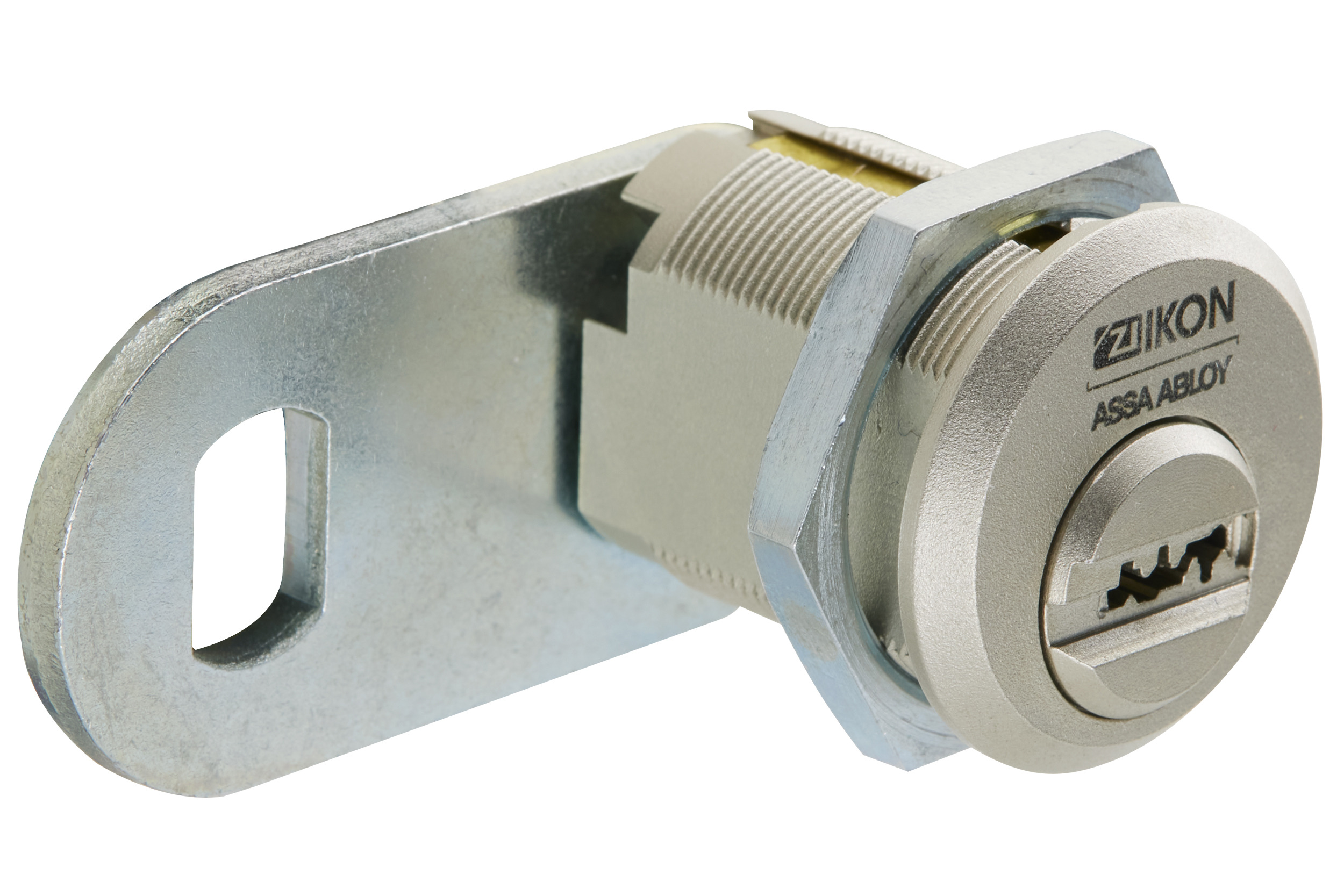

Locking lever cylinder - system RW6 H211

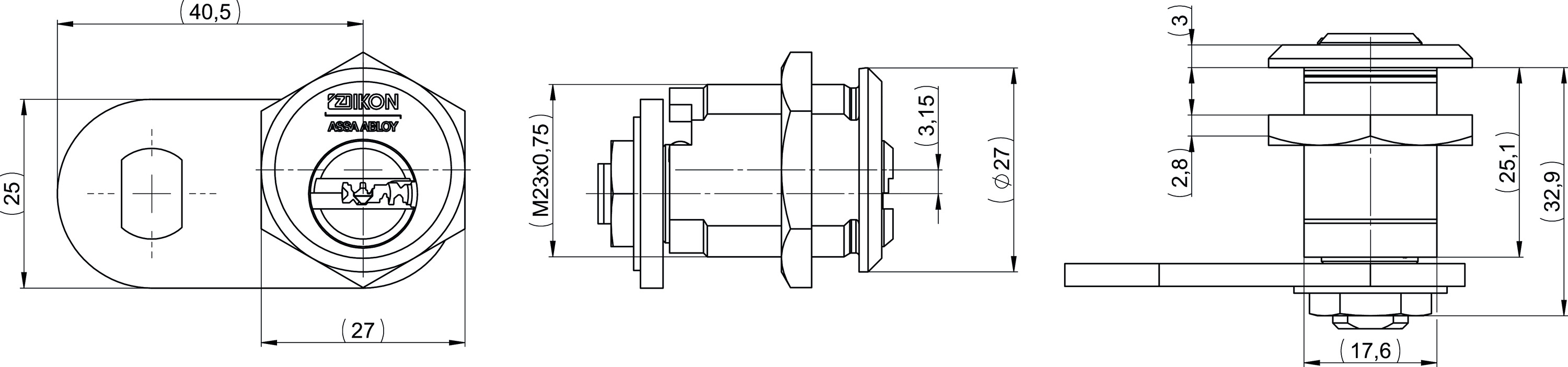

23 mm diameter, laterally flattened to 17.6 mm

Overview of Advantages

  • Very compact dimensions
  • The locking direction of the locking lever can be given when ordering, but the locking direction can however be easily changed by changing the position of the stop screw.

Product description

  • 6 pin tumblers and up to 5 additional side locking pins
  • Brass cylinder
  • Standard finish, satin nickel-plated (OF=MV)
  • Locking path and locking lever path 90º left or right
  • Available with locking path SST=1-2 or SST=1-4
  • Key withdrawal when locking lever is closed
  • Fixing with housing nut M23 x 0.75
  • Standard locking lever (SLHB=1645009)
  • Available for individual lockings and locking systems
  • Protected key profile with security card

Scope of delivery

  • 1 locking lever cylinder
  • 1 locking lever SLHB=1645009
  • 2 nickel silver keys
  • 1 casing screw nut M23 x 0.75
  • 1 core nut, M10 x 0,75 x 3

Ordering Information

  • Not available with drilling protection 2 (AB=2) or 3 (AB=3)
  • Please include the desired locking path (SST=) in your order.
  • Locking lever variants differ from the standard must be ordered separately using article 1905.
System and Profile overview
SystemRW6
ArticlenumberH211
Locking system (AA=)GHHKHZZZUE
Main profile group=PA=
ABLOY PROTEC²21
Reversible key profile RW624
Radii profile blocking wave29
VERSO®CLIQ40
eCLIQ41
CLIQ® Go41
Radii profile45
Radii profile extra46
