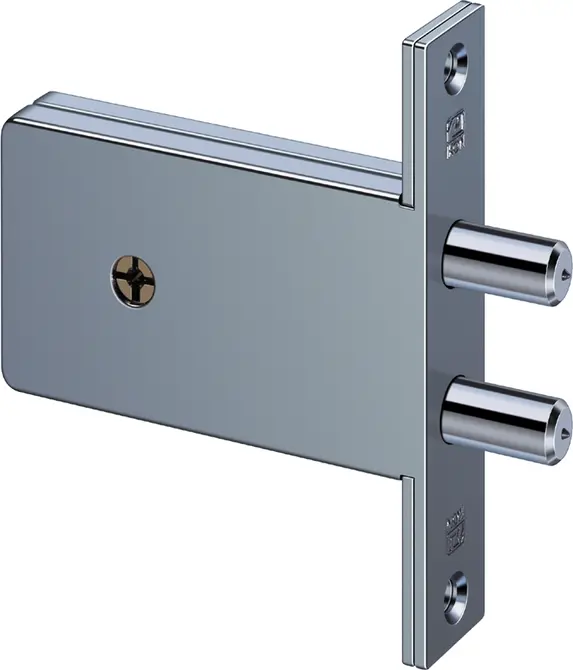

Mortise bolt lock 3211

6-pin cross profile security lock

Overview of Advantages

  • Discrete and inobtrusive concealed within door leaf

Product description

  • Suitable for left and right handed doors
  • Key withdrawal in open and closed position
  • With special paracentric profile (PR=SE1K) and drilling protection
  • 2 Single-throw bolts, 20 mm projection, galvanised steel, 10 mm diameter
  • Lock case completely closed
  • Galvanised lock case, face plate and striking plate

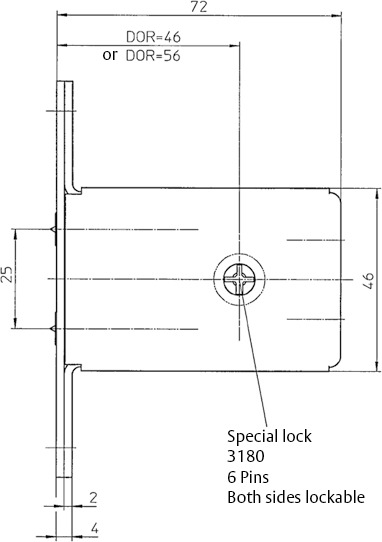

  • Available with different backsets (DOR=) 46, 56 mm

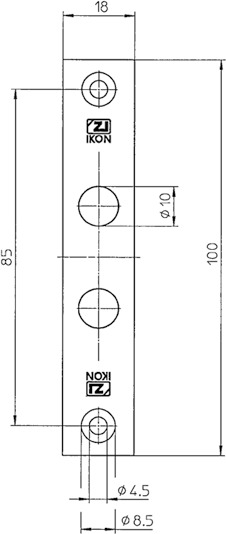

  • Available with different face plate widths (STU=) 18, 22 mm
  • Cross profile keys are available in different lengths (SLL=) from 70 mm to 130 mm
  • Available as S2 profile with standard locking and SE1K profile with restricted locking with security card
  • Available as keyed different or key aliked

Scope of delivery

  • 1 mortise bolt lock
  • 3 cross profile keys - length 70 mm (A)
  • 1 striking plate
  • 2 rosettes
Variants that can be ordered
Article numberPR=DOR=STU=
3211 S24618 mm
S24622 mm
S25618 mm
S25622 mm
SE1K4618 mm
SE1K4622 mm
SE1K5618 mm
SE1K5622 mm
