eCLIQ
CLIQ® technology
Product description

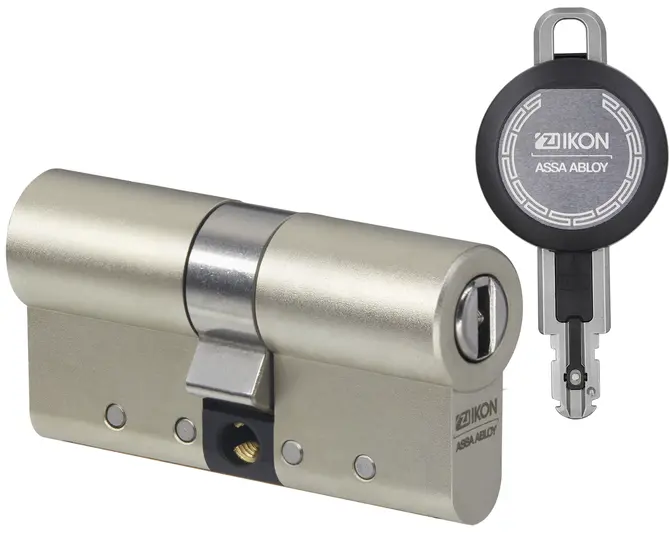

Profile-cylinder
- Unique and locking system coding
- Combination of electronic and rotationally-secured cylinder halves possible
- Adaptable housing kit
- Optional enhanced drilling protection
- Optional comfort function for bilateral opening
- Free rotation angles (optional)
- Integrated chip to store access authorisations and events log
- Memory locations for 1,000 individual keys or groups (up to 65,000 keys per group)
- Locking function for 1,500 keys
- Event memory for the last 750 locking actions (with CLIQ® Go for the last 50 locking actions)
- Operational temperature range: between -25°C and +85°C
- Maintenance-free for up to 200,000 cycles
- DIN EN 15684:2021-05 (optional)
- VdS approval, class BZ+ according to VdS 2156-2 (optional)
- Splash-proof IP54
- Optionally with dust and rain protection cap IP55
- Optionally available for use in potentially-explosive atmospheres in Zone 1
User key
- Reversible key: always fits, no matter which way it is inserted into the cylinder
- Optical and acoustic signalling for access entitlements, time zone and battery status
- Optional different colouring of the battery cover
- Optionally with RFID chip integrated in the battery cover
- Optional user keys with BLE functionality
- Temperature range 0° C to +70° C
- Protected against temporary immersion in water (IP67)
- Power supply via commercially-available lithium battery (CR2450)
- For 100,000 locking operations (service life of about 10 years)
- Optionally without battery with generator in the key
- Optionally available for use in potentially-explosive atmospheres in Zone 1
System (SYS=) | E |
Profile design (PA=) | 41 |
Profile (PR=) | eCLIQ |
