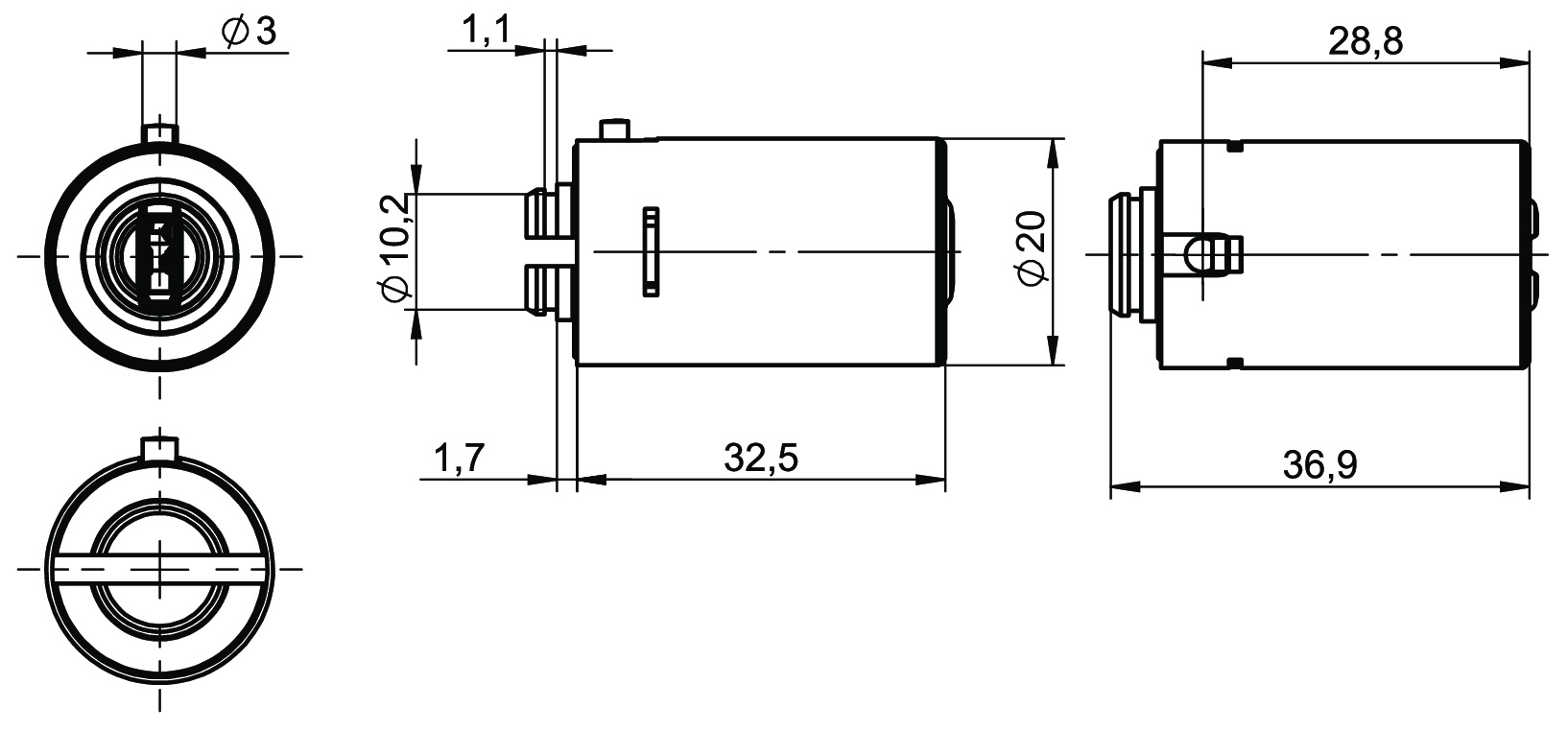

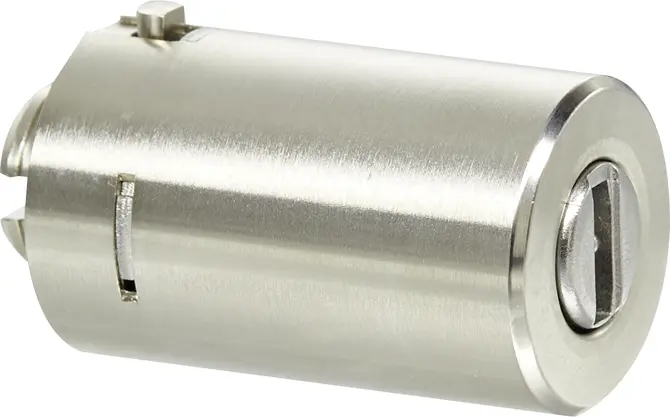

Switch cylinder NC52

Diameter 20 mm for electric rotary switches with multiple withdrawal positions -without key-

Product description

  • Power is supplied exclusively via the key (no battery in the cylinder)
  • Available as rotary secured or electronical version (V=)
  • Standard finish, satin nickel-plated (OF=MV)
  • Diameter 20 mm
  • For electric rotary switch with multiple withdrawal positions of various manufacturers
  • Key withdrawal in every resting position
  • Up to 12 resting positions possible
  • Display of switching position by the keyway
  • Maintenance-free for up to 200,000 cycles
  • Splash-proof IP54
  • Dust and rain cover available (SUR=1) IP55
  • Optionally available for use in potentially-explosive atmospheres in Zone 1 (ATEX=II 2G Ex ib IIC T4 Gb)

Scope of delivery

  • 1 switch cylinder

Ordering Information

  • Electric rotary switch not included
Variants that can be ordered
Article numberOF=AUS=V=
NC52 MV 1E
Special equipment

Explosion protection

ATEX=DescriptionInfo
II 2G Ex ib IIC T4 GbLocking cylinders for Zone 1 hazardous areasper cylinder

Version

V2=AUS3=DescriptionInfo
ONLINECylinder with function "Online Open", frontal marking with symbol "@"per cylinder
SEQUENCECylinder with function "two-man rule", frontal marking with symbol "&"per cylinder
OHNE AUDITCylinder without events list, frontal marking with symbol "§"per cylinder

Special finish

OF=Area of applicationInfo
MC For profile and locking lever cylindersMatt, chrome plated

Special identification marking

DescriptionInfo
Special designation of your choice for the front of profile cylinders, 6 characters maximum (SBZ=)per cylinder

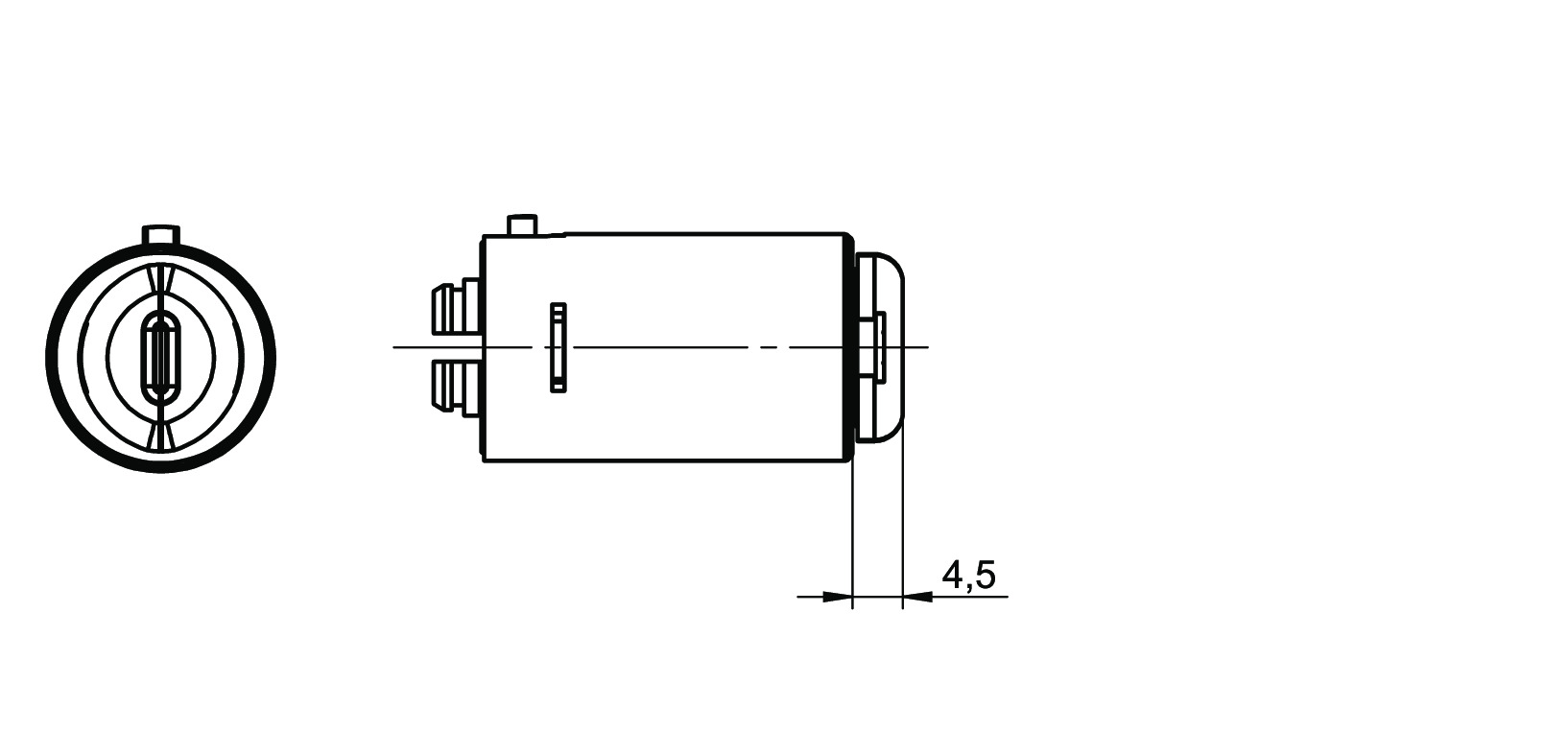

Dust and rain protection

SUR=Area of applicationInfo
1For special cylindersper cylinder
