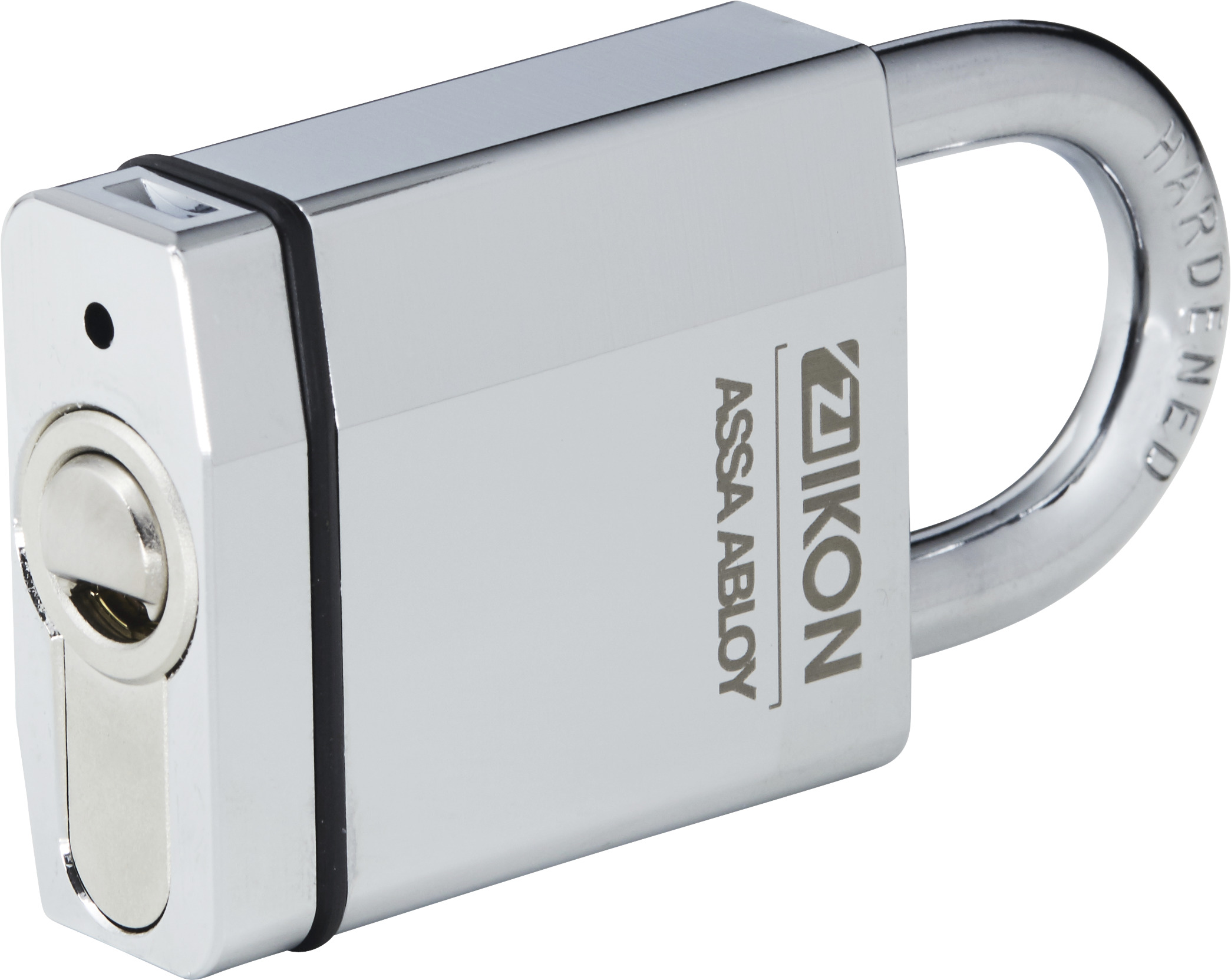

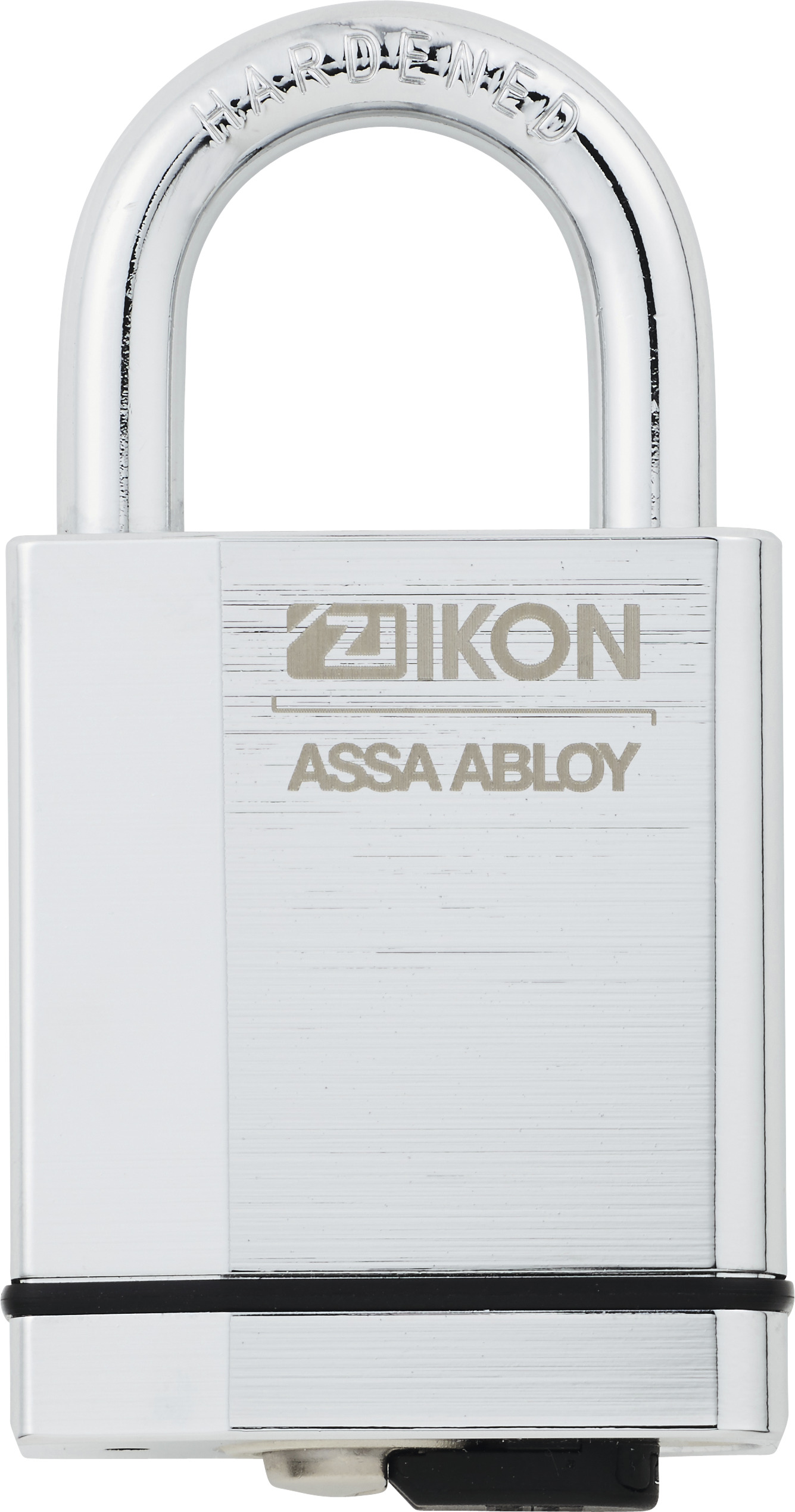

Cylinder padlock VERSO®CLIQ V316

With forced locking - without key -

Product description

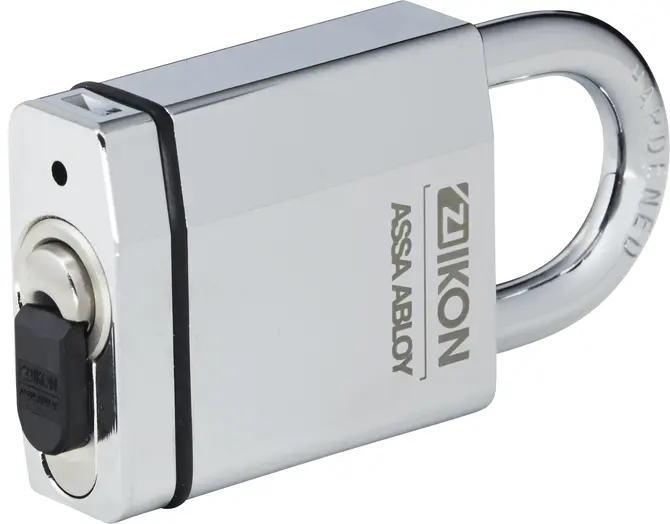

  • Available as mechanical or electromechanical version (V=)
  • Housing chrome-plated in brass
  • Cylinder, nickel-plated brass satin

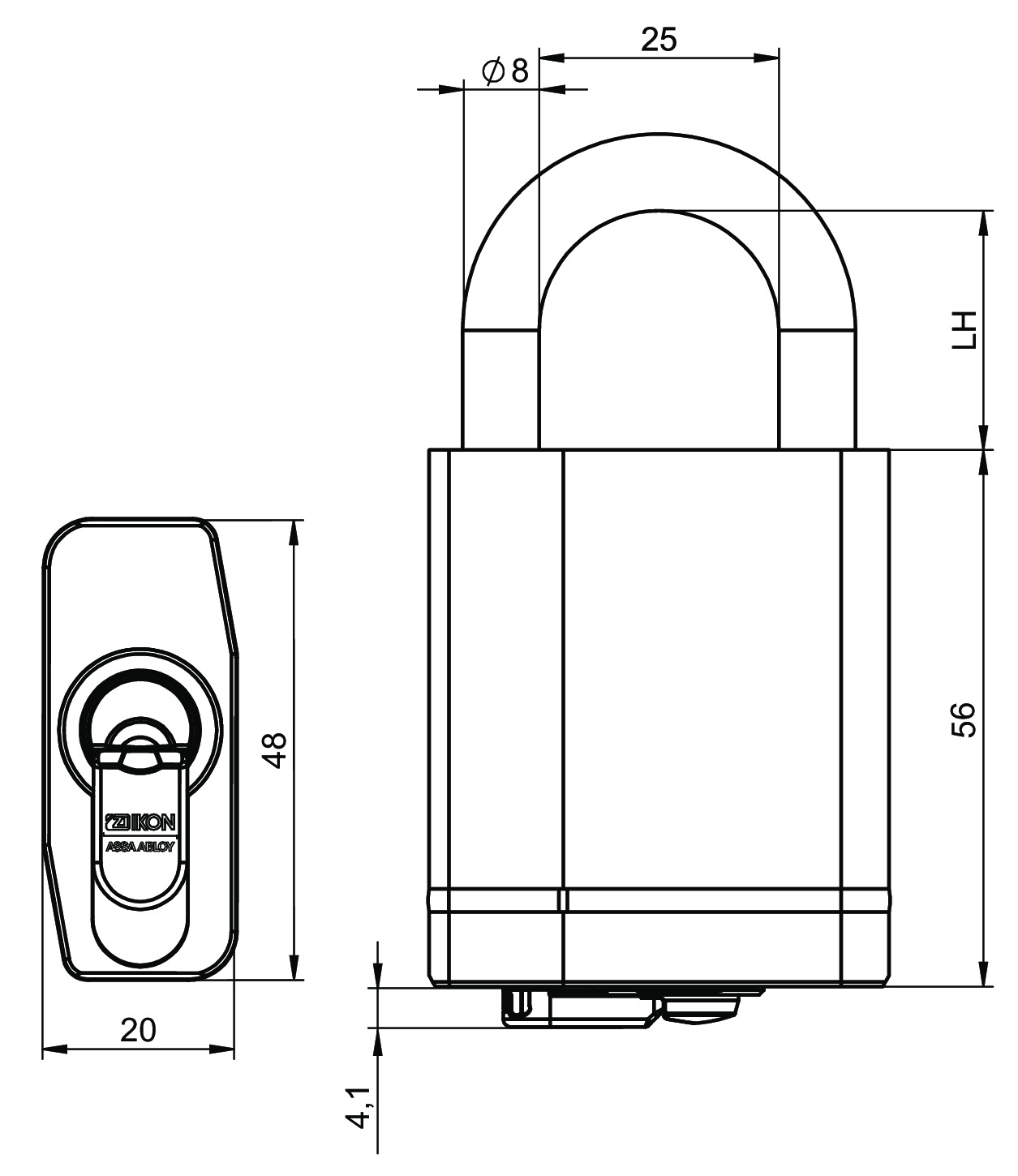

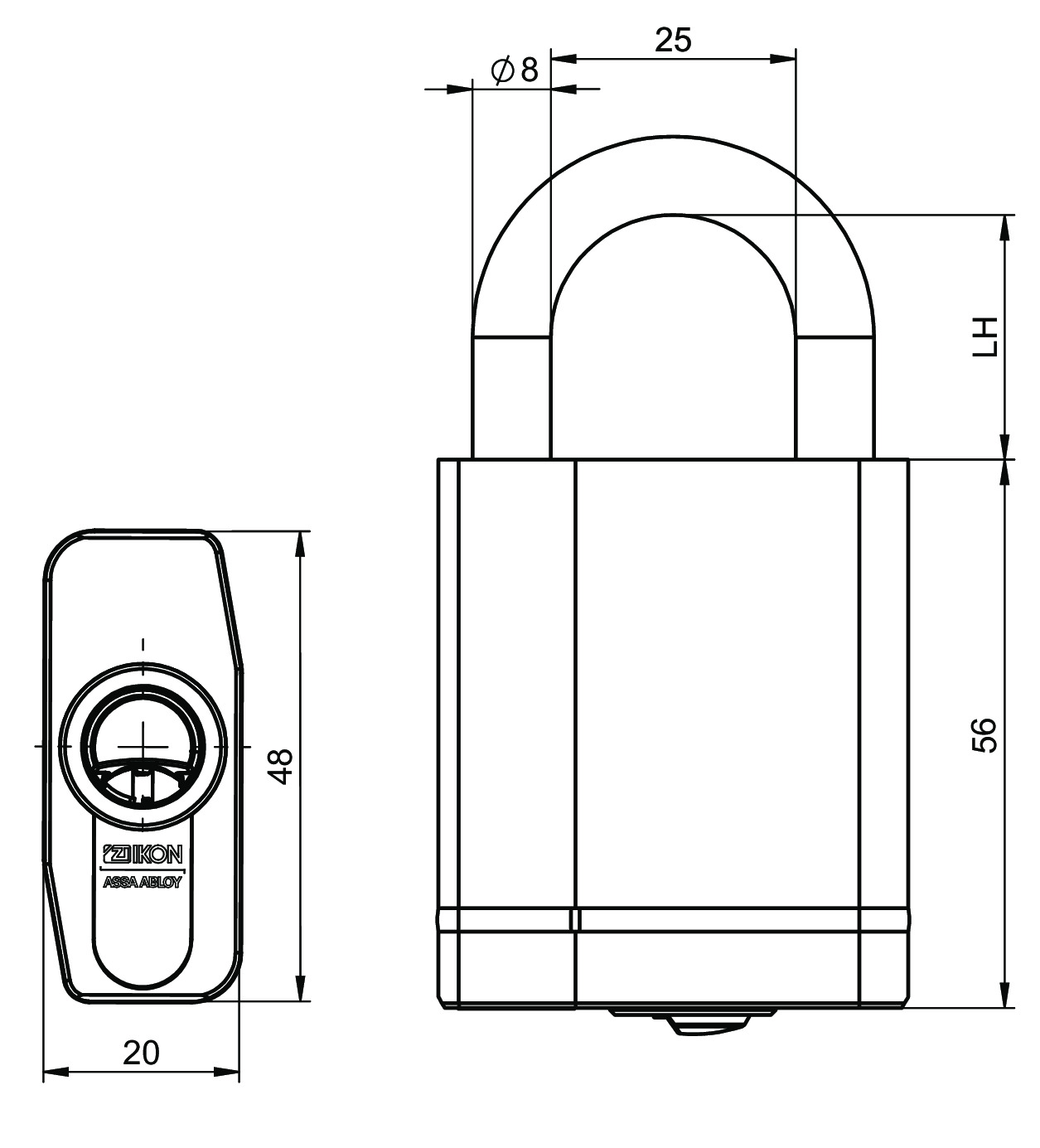

  • Standard shackle clearance height 25 mm (AUS=LH25)
  • Optionally with non-corroding shackles (AUS=LH25-NIRO)
  • Other shackle heights (AUS=LH50, LH75, LH28/5)
  • Steel shackle, diameter 8 mm, hardened and chrome-plated
  • Steel shackle diameter 5 mm at shackle height 28 mm (AUS=LH28/5), hardened and chrome-plated
  • With forced locking as standard
  • Optionally available without forced locking (AUS2= OHNE ZWANGSSCHL)

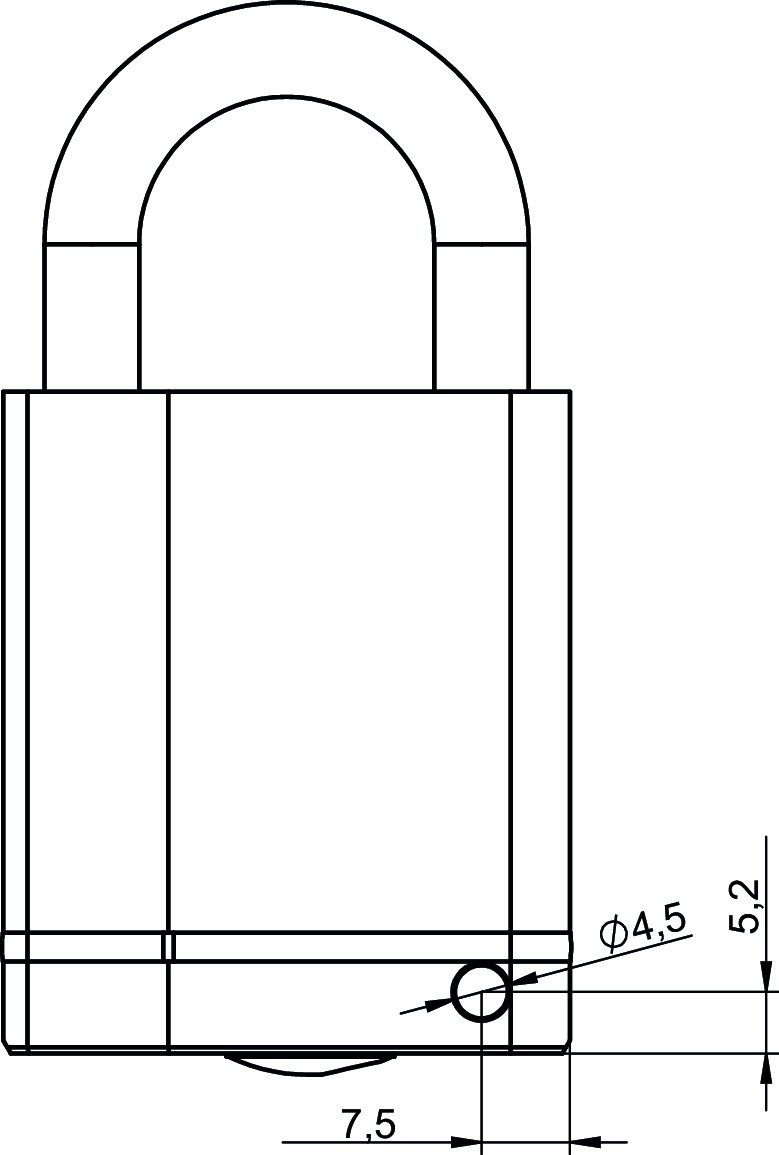

  • Optionally with hole for fastening a driving guard (VAR=1901043-X-BOHRUNG)
  • Standard version as per DIN EN 12320 class 3 (not valid for AUS=LH28/5)
  • Standard with dust and rain cover (SUR=1)
  • Optionally without dust and rain cover (SUR=0)

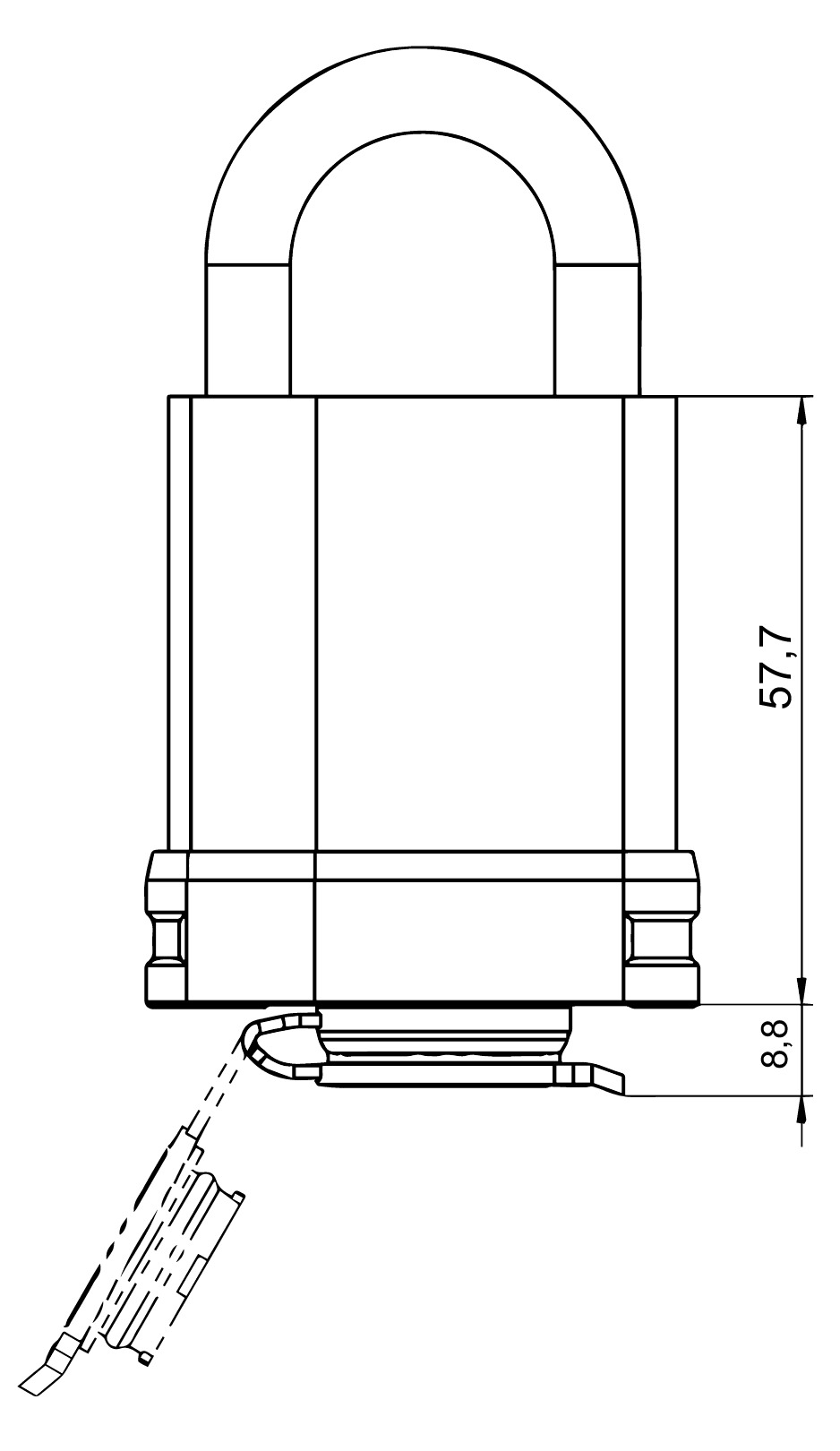

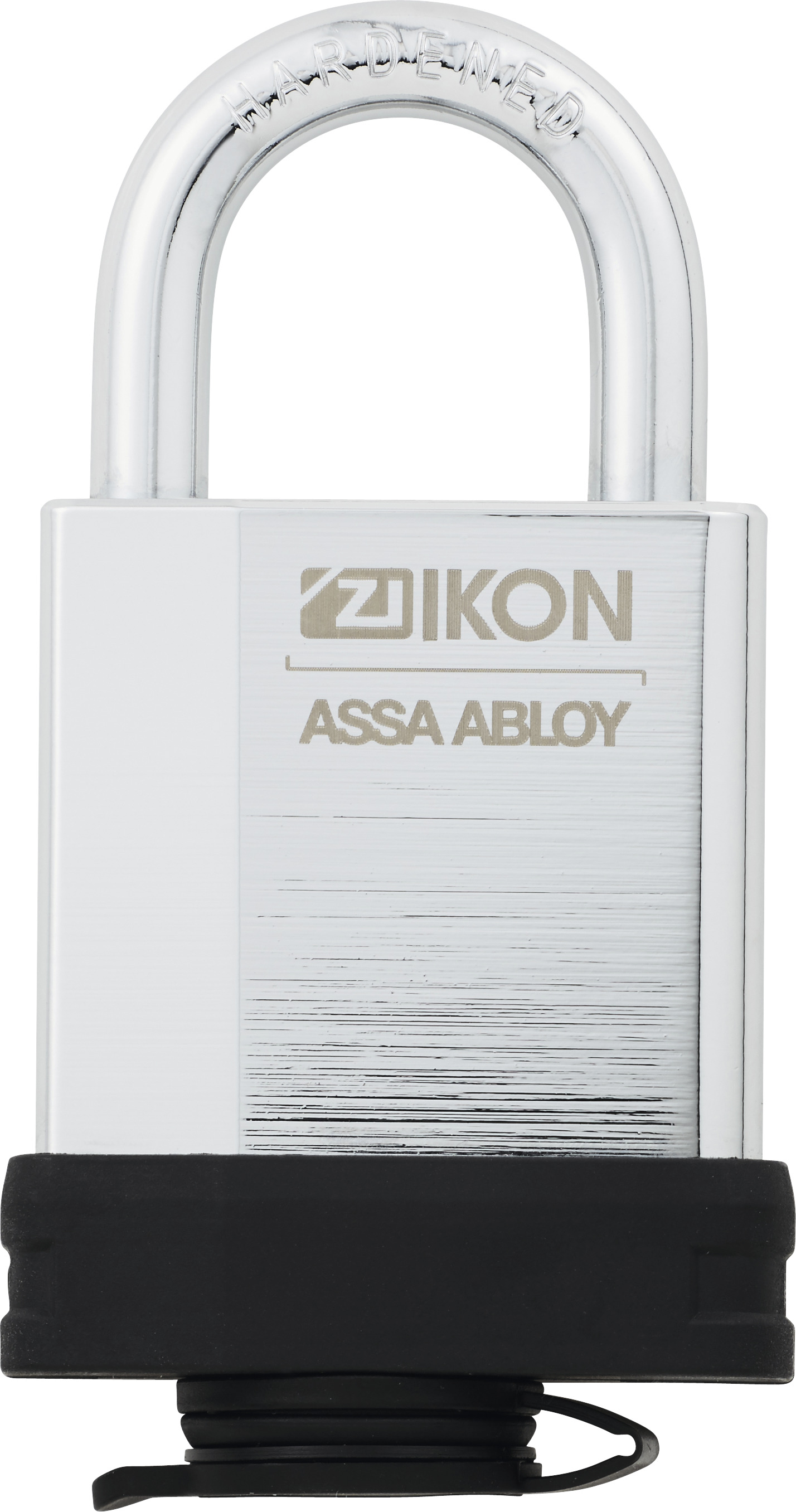

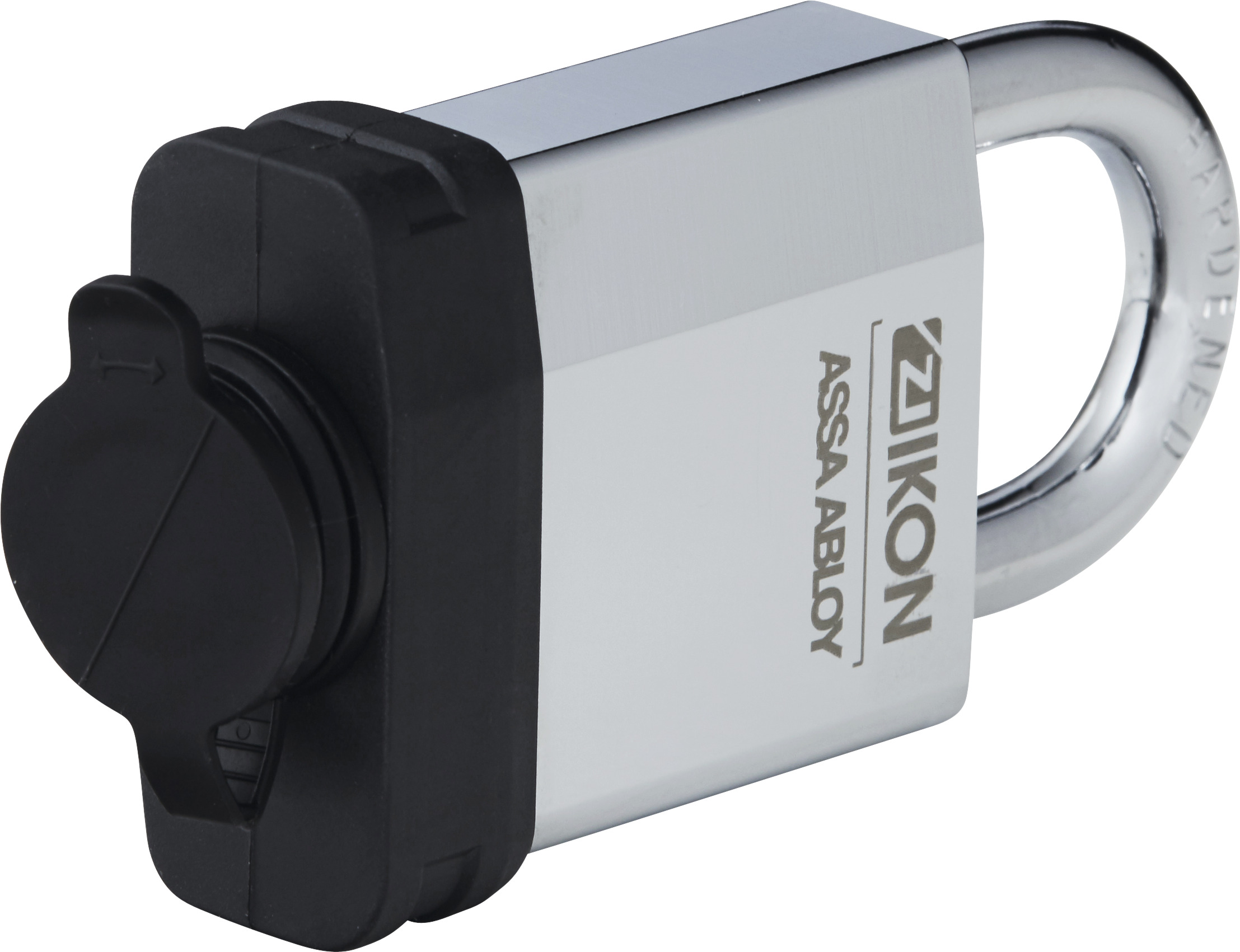

  • Optionally IP67 certified with protective cap (SUR=2)
  • Optionally available for use in potentially-explosive atmospheres in Zone 1 (Ex II 2G) ATEX=II 2G Ex ib IIC T4 Gb

Scope of delivery

  • 1 cylinder padlock

Ordering Information

  • Subsequent modification to SUR=2 only available if originally ordered as SUR=0
  • (VAR=1901043-X-BOHRUNG) Not in conjunction with protective cap SUR=2
Variants that can be ordered
Article numberV=AUS=SUR=
V316 M LH25 1
E1 LH25 1
E2 LH25 1
M LH50 1
E1 LH50 1
E2 LH50 1
M LH75 1
E1 LH75 1
E2 LH75 1
M LH28/5 1
E1 LH28/5 1
E2 LH28/5 1
M LH25-NIRO 1
E1 LH25-NIRO 1
E2 LH25-NIRO 1
Special equipment

Special identification marking

DescriptionInfo
Special designation of your choice for the front of profile cylinders, 6 characters maximum (SBZ=)per cylinder

Explosion protection

ATEX=DescriptionInfo
II 2G Ex ib IIC T4 GbLocking cylinders for Zone 1 hazardous areasper cylinder

Dust and rain protection

SUR=Area of applicationDescriptionInfo
1For profile knob and double cylinder, double cylinder one side blind, half cylinder and special cylinderper cylinder
2For padlock .316IP67 certified with protection capper padlock

Version

V2=DescriptionInfo
OHNE AUDITCylinder without events list, frontal marking with symbol "§"per cylinder
