Locking lever cylinder VERSO®CLIQ
Locking lever cylinders are mainly used for letterboxes, vending machines, control cabinets, haunch flaps, wardrobe lockers or security lockers. IKON supplies locking lever variants to suit different areas of application.
Locking lever cylinder VERSO®CLIQ V923
25 mm diameter, laterally flattened to 22 mm -without key-
Locking lever cylinder VERSO®CLIQ V320,AUS=1
30 mm Diameter, laterally flattened to 22 mm -without key-
Letterbox set 1909,ABM=29
For locking lever cylinders with lever spacing L=29 mm

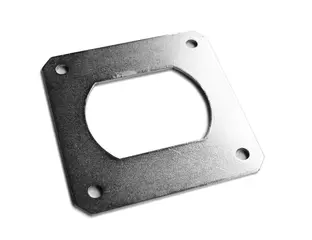

Screw-on plate 1900,VAR=0160504
For locking lever cylinder .320 and .449
Spacer ring 1901,VAR=0160501
6 mm thick - For locking lever cylinder .320
Spacer ring 1901,VAR=0160503
9 mm thick - For locking lever cylinder .320
Spacer ring 1901,VAR=0160508
3 mm thick - For locking lever cylinder .320
Spacer ring 1901,VAR=0160510
10 mm thick - For locking lever cylinder .320
Housing nut 1902,VAR=3650207
Flat hexagonal nut M30 x 1.5 mm - For locking lever cylinder .320 und .449
Locking lever nut 1906,VAR=1655033
Flat hexagonal nut M10 x 0.75 mm - for locking lever cylinder .320,AUS=2
Locking lever nut 1906,VAR=1655019
Flat hexagonal nut M10 x 0.75 mm - For locking lever cylinder .320

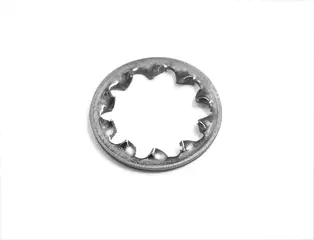

Toothed lock washer 1907,VAR=0515015
In accordance with DIN6797 J12.5
