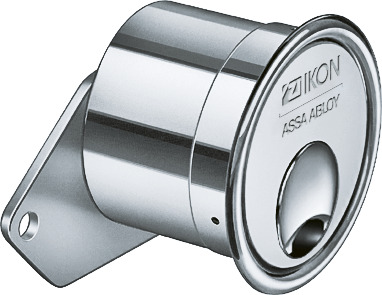

Switch cylinder VERSO®CLIQ V577,AUS=3
Special cylinder for switch - without key-
Product description
- Available as mechanical or electromechanical version (V=)
- Brass cylinder housing components
- Standard finish, satin nickel-plated (OF=MV)
- Cam radius 10.7 mm
- Tumbler elements with special wear-resistant alloy
- Optionally available for use in potentially-explosive atmospheres in Zone 1 (Ex II 2G) ATEX=II 2G Ex ib IIC T4 Gb
Scope of delivery
- 1 switch cylinder
- 1 screw-on plate
- 1 escutcheon
Article number | OF= | V= |
---|---|---|
V577,AUS=3 | MV | M |
MV | E1 | |
MV | E2 |
| Order number | Product |
---|---|---|
VZ03 | Maintenance spray | |
VZ05 | Maintenance spray |
Special identification marking
Description | Info |
---|---|
Special designation of your choice for the front of profile cylinders, 6 characters maximum (SBZ=) | per cylinder |
Explosion protection
ATEX= | Description | Info |
---|---|---|
II 2G Ex ib IIC T4 Gb | Locking cylinders for Zone 1 hazardous areas | per cylinder |
Special finish
OF= | Area of application | Info |
---|---|---|
MV | For profile and locking lever cylinders | per cylinder |
MC | For profile and locking lever cylinders | per cylinder |
MP | For profile and locking lever cylinders | per cylinder |
MG | For profile and locking lever cylinders | per cylinder |
Version
V2= | Description | Info |
---|---|---|
OHNE AUDIT | Cylinder without events list, frontal marking with symbol "§" | per cylinder |
