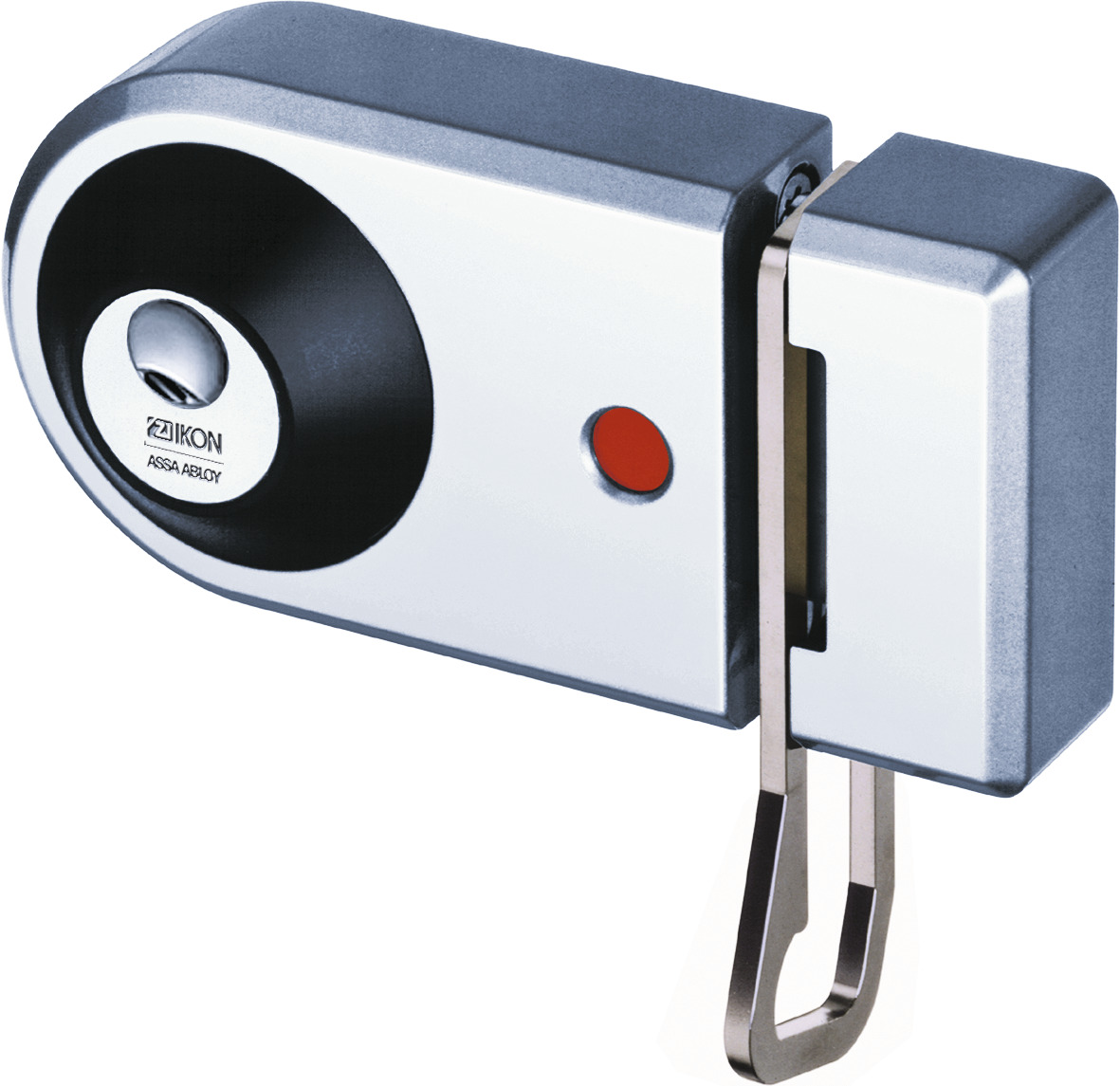

Rim locks VERSO®CLIQ V136
With security link and external and internal cylinder set V933 -without keys-
Overview of Advantages
- With robust bolt and solid lock case
Product description
- Available as mechanical or electromechanical version (V=)
- Visual locking display (green/red)
- Available in color: silver grey (FB=SGR) similar to RAL 9006, white (FB=WS) similar to RAL 9016 and brown (FB=BN) similar to RAL 8019
- Lock and lock case made of zinc die-cast anti-corrosive

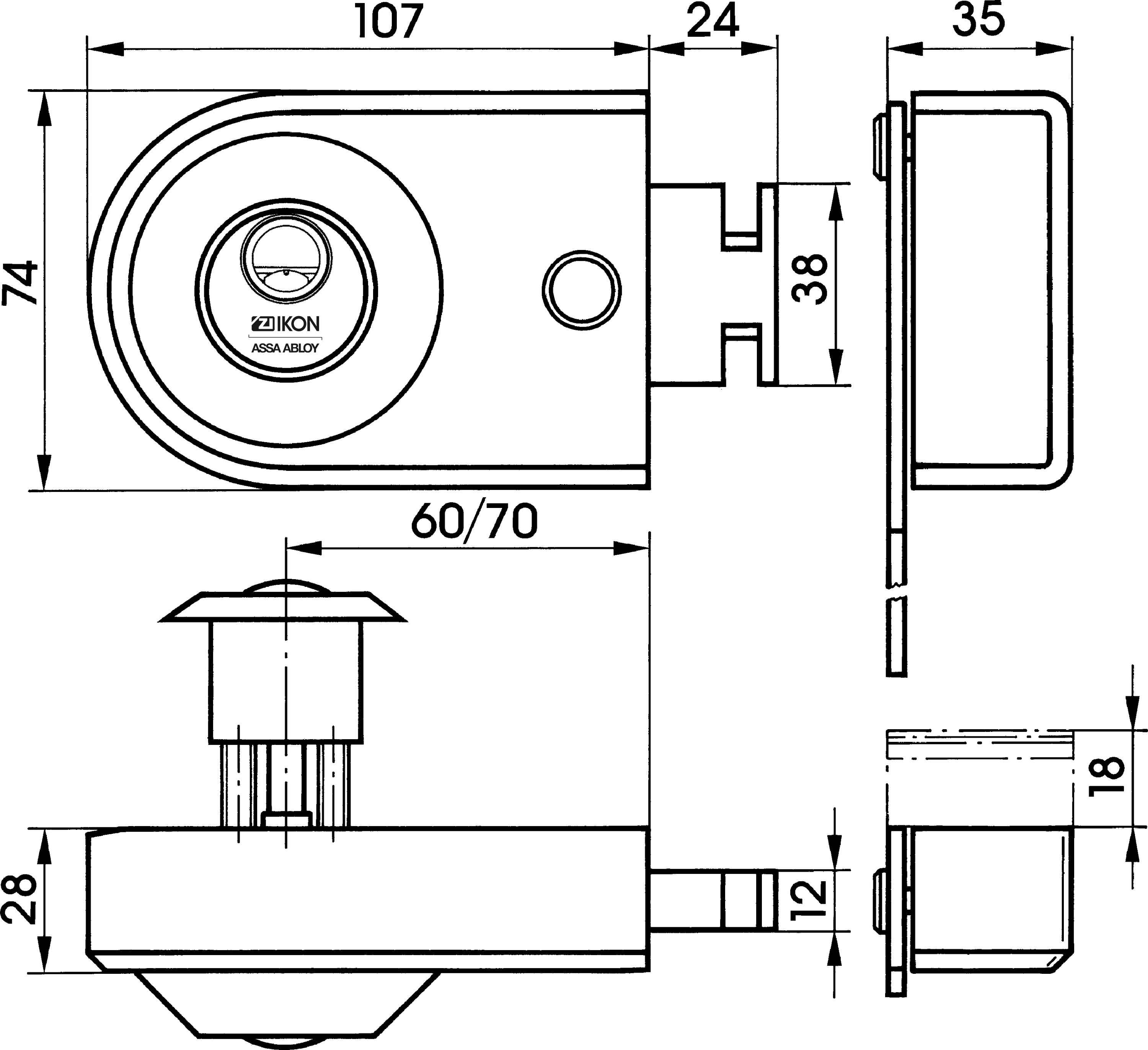

- Solid brass bolt, double turn, 24 mm projection
- Massive steel security link, nickel-plated - for a minimum gap width
- Adjustable backset 60/70 mm
- Suitable for DIN left (S=R) or DIN right (S=L)
- For door leaf thicknesses from 36 to 45 mm
- For rebated and non-rebated doors
- Brass cylinder housing components
- Standard finish, satin nickel-plated (OF=MV)
- Tumbler elements with special wear-resistant alloy
- Optionally available for use in potentially-explosive atmospheres in Zone 1 (Ex II 2G) ATEX=II 2G Ex ib IIC T4 Gb
Scope of delivery
- 1 rim lock
- 1 V933 external and internal cylinder set
- 1 shim ring
- Lock case shims (2x 1 mm, 1x 3 mm and 1x 13 mm) for height adjustment up to 18 mm
Ordering Information
- Please include the desired color (FB=) as well as the DIN-door direction (S=) in your order.
| Article number | FB= | S= | OF= | V= |
|---|---|---|---|---|
| V136 | SGR | L | MV | M/M |
| SGR | R | MV | M/M | |
| SGR | L | MV | M/E1 | |
| SGR | R | MV | M/E1 | |
| SGR | L | MV | E1/M | |
| SGR | R | MV | E1/M | |
| SGR | L | MV | M/E2 | |
| SGR | R | MV | M/E2 | |
| SGR | L | MV | E2/M | |
| SGR | R | MV | E2/M | |
| SGR | L | MV | E1/E1 | |
| SGR | R | MV | E1/E1 | |
| SGR | L | MV | E2/E2 | |
| SGR | R | MV | E2/E2 |
| | Order number | Product |
|---|---|---|
 | VZ03 | Maintenance spray |
.webp "Maintenance spray") | VZ05 | Maintenance spray |
Special identification marking
| Description | Info |
|---|---|
| Special designation of your choice for the front of profile cylinders, 6 characters maximum (SBZ=) | per cylinder |
Explosion protection
| ATEX= | Description | Info |
|---|---|---|
| II 2G Ex ib IIC T4 Gb | Locking cylinders for Zone 1 hazardous areas | per cylinder |
Drilling protection
| AB= | Area of application | Info |
|---|---|---|
| 2 | For profile knob, half and special cylinders | per cylinder |
Special finish
| OF= | Area of application | Info |
|---|---|---|
| MV | For profile and locking lever cylinders | per cylinder |
| MC | For profile and locking lever cylinders | per cylinder |
| MP | For profile and locking lever cylinders | per cylinder |
| MG | For profile and locking lever cylinders | per cylinder |
Version
| V2= | Description | Info |
|---|---|---|
| OHNE AUDIT | Cylinder without events list, frontal marking with symbol "§" | per cylinder |
